Hot-plug components
©
c
o gni
ta
s.
Ge
se
lls
ch
ft f
ür T
ec
hn
ik
-Do
ku
m
ent
at
io
n m
b H 20
12
P
fa
d:
C
:\P
rogr
am
m
e \F
CT
\t im
_ap
p\
tim
_l
oc
al
\w
ork
\W
A
LT
E
R
\O
B
J_
DO
K U
-9
24
9-0
04
.fm

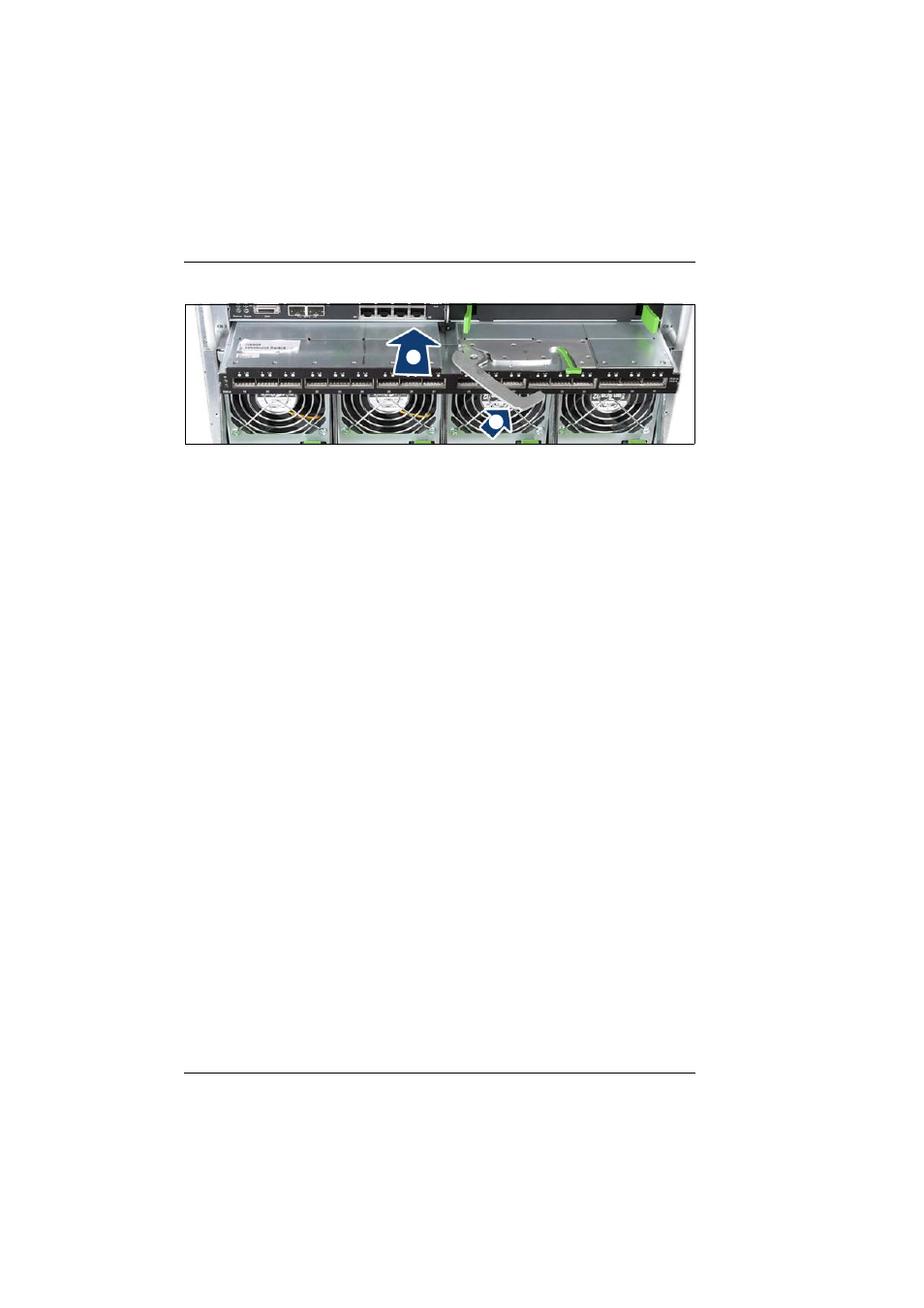

Figure 43: Installing a double-width connection blade
Ê Open the release lever of the connection blade and push it carefully into the
empty fabric as far as it will go (1).
Ê Push the release lever in the direction of the arrow (2) until it clicks into
place.
Removal is carried out in reverse order.
V
CAUTION!
If you remove a double-width connection blade and do not replace it with
a new one, you must install the separating clip (see
page 129 ) and two
dummy modules in the empty slot, see page 125 .
/
0
