8.2.8 Connection Blade DCB SW 10Gb 18/6+6
The connection blade DCB SW 10Gb 18/6+6 provides the following
connections:
– 18 internal 10-Gbit/s ports to the server blades
– 6 external 10-Gbit/s Data Center Bridging (DCB) capable ports through
Brocade branded SFP+ modules or SFP+ Twinax cables
This connection blade can be installed in all connection blade slots. Installed in
slots CB2 (fabric 2) and CB3/4 (fabric 3), it only supports server blades that are
fitted with one of the following mezzanine cards:
– 10 Gbit CNA mezzanine card (MC-CNA102E)
– 10 Gbit CNA mezzanine card (MC-CNA112E)
– 10 Gbit Ethernet mezzanine card

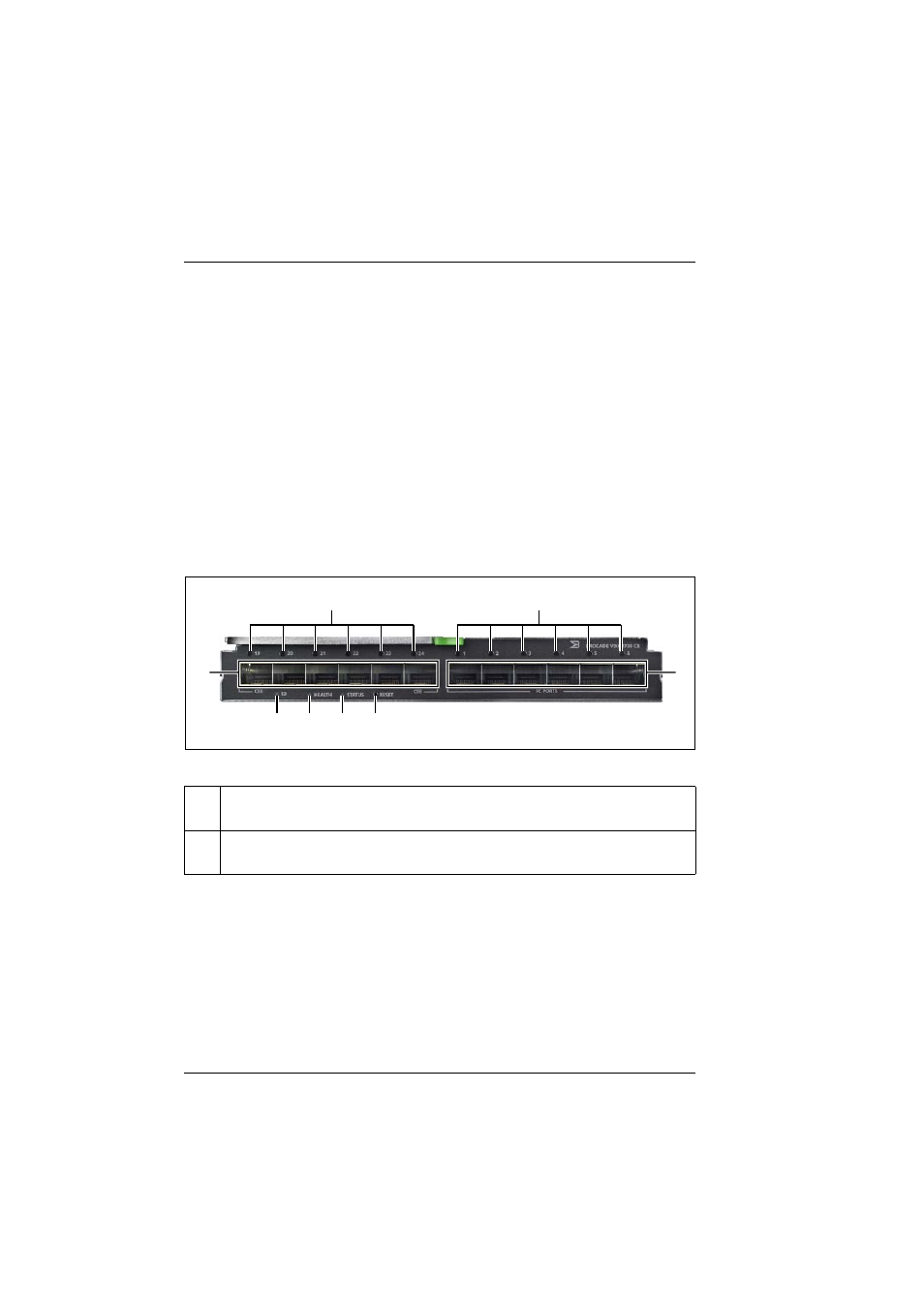

Figure 32: Connection Blade DCB SW 10Gb 18/6+6
A External 10 Gb Ethernet ports (6x)
Ports for Brocade branded Ethernet SFP+ 10 Gbit/s modules or SFP+ Twinax cables
B External 8 Gb FC ports (6x)
Ports for Brocade branded FC SFP+ 8Gbit/s modules or SFP 4Gbit/s modules
1
3 4 5 6
A B
2
