48 Operating Manual BX400 S1
Installing the hardware
©
c
o gni
ta
s.
Ge
se
lls
ch
ft f
ür T
ec
hn
ik
-Do
ku
m
ent
at
io
n m
b H 20
12
P
fa
d:
C
:\P
rogr
am
m
e \F
CT
\t im
_ap
p\
tim
_l
oc
al
\w
ork
\W
A
LT
E
R
\O
B
J_
DO
K U
-9
24
5-0
04
.fm
4.4.1 Installation in the rack
For installation in a PRIMECENTER/DataCenter rack, the following parts are
required:
– Two 3-HU Support brackets (for the EMEA market)
– Two carrier rails (mounted)
– Two holding-down clamps
I
General information regarding system unit installation in the rack is
included in the technical manual for the appropriate rack.
When mounting the left carrier rail in the PRIMECENTER/DataCenter rack, the
supplied support bracket must first be mounted on the rear left support upright
flush with the bottom edge of the device.
Ê
Read the installation guide in the technical manual for the corresponding
rack.
Ê Mark the position of the bottom edge of the system unit on the support
uprights.

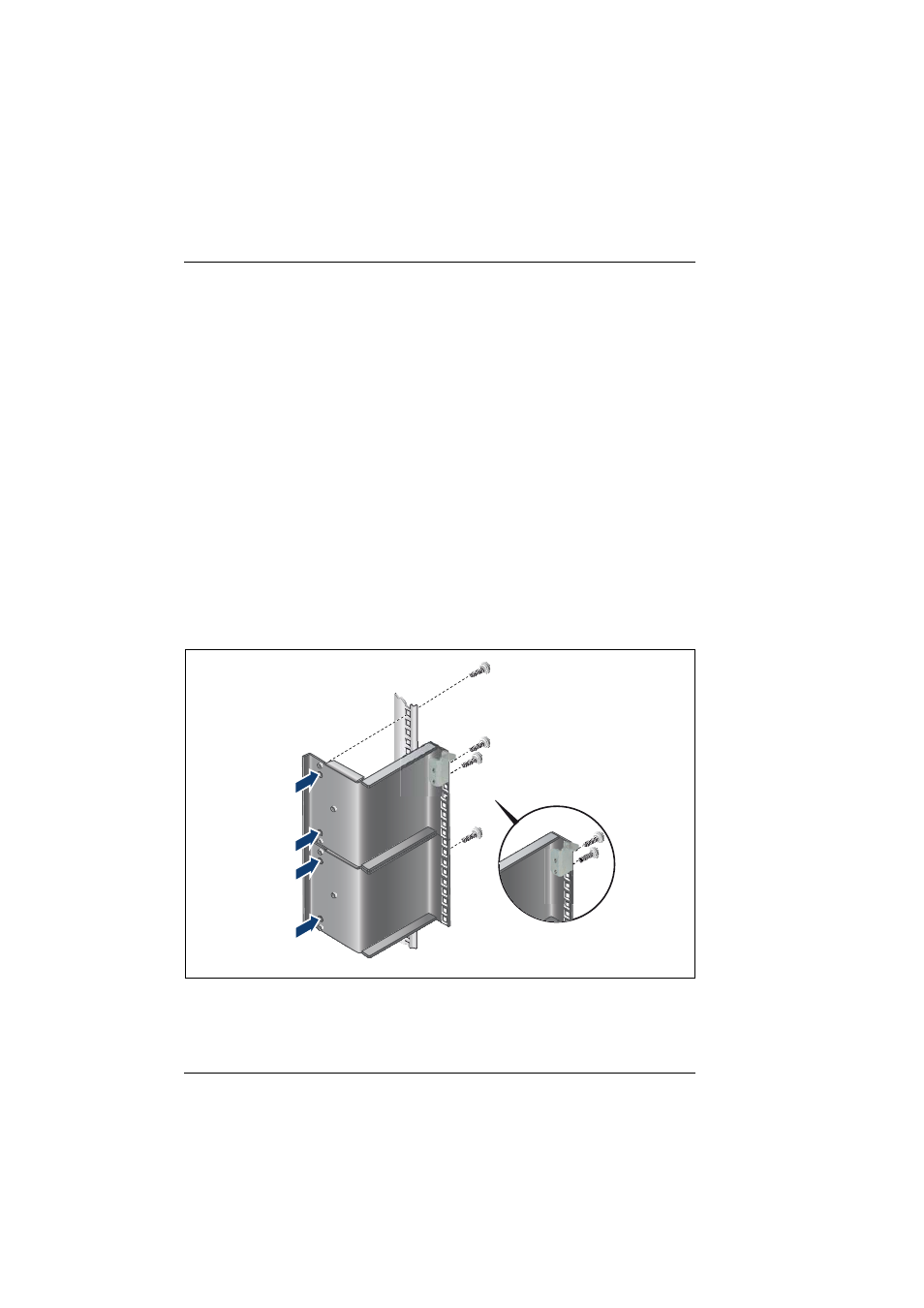

Figure 2: Attaching the support brackets
/
