BX400 S1

Operating Manual

65

Installation and operation

5.1.2

Back of system

5.1.2.1

Control and display elements on the management blade

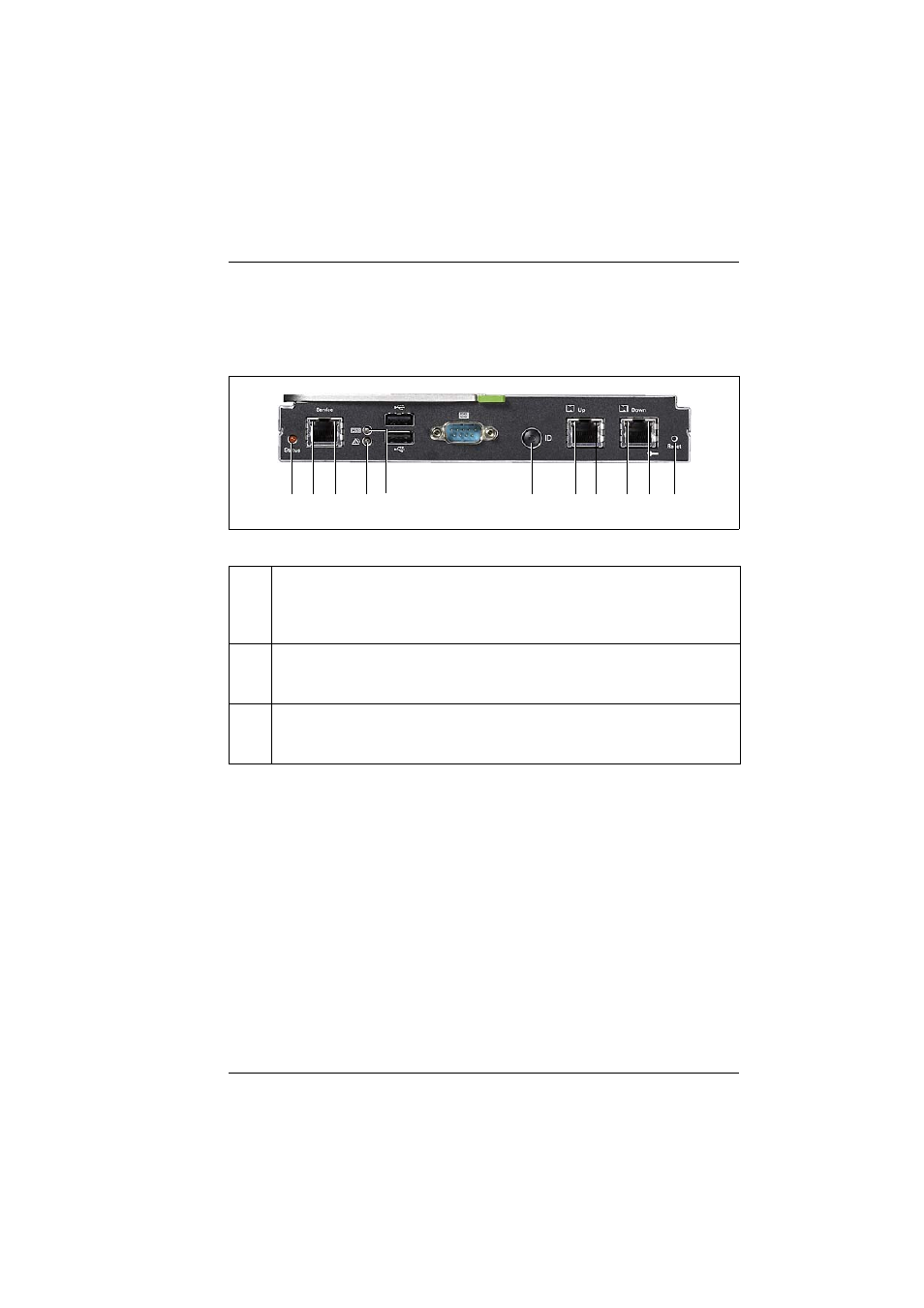

Figure 15: Control and display elements on the management blade

1

Status indicator (yellow)
Lights up when the management blade is active (master)
Is not lit when the management blade is not active (slave)
Blinks when the management blade is defective.

2

LAN link indicators (service LAN port)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.

3

LAN activity indicators (service LAN port)
Flashes yellow for a LAN transfer is in progress.
Does not light up if no LAN transfer.

1 2 3

4 5

6

7 8

9 10 11
