Installing the hardware
Ê Position the support brackets at the relevant height on the rear left support
upright (place knob in the corresponding hole) and secure them using four
centering screws (1).
Ê Fasten the holding-down clamp at the upper end of the support bracket
using two centering screws (2).
Ê Fasten the second holding-down clamp at the same height as the first one
to the rear left support upright using two centering screws.

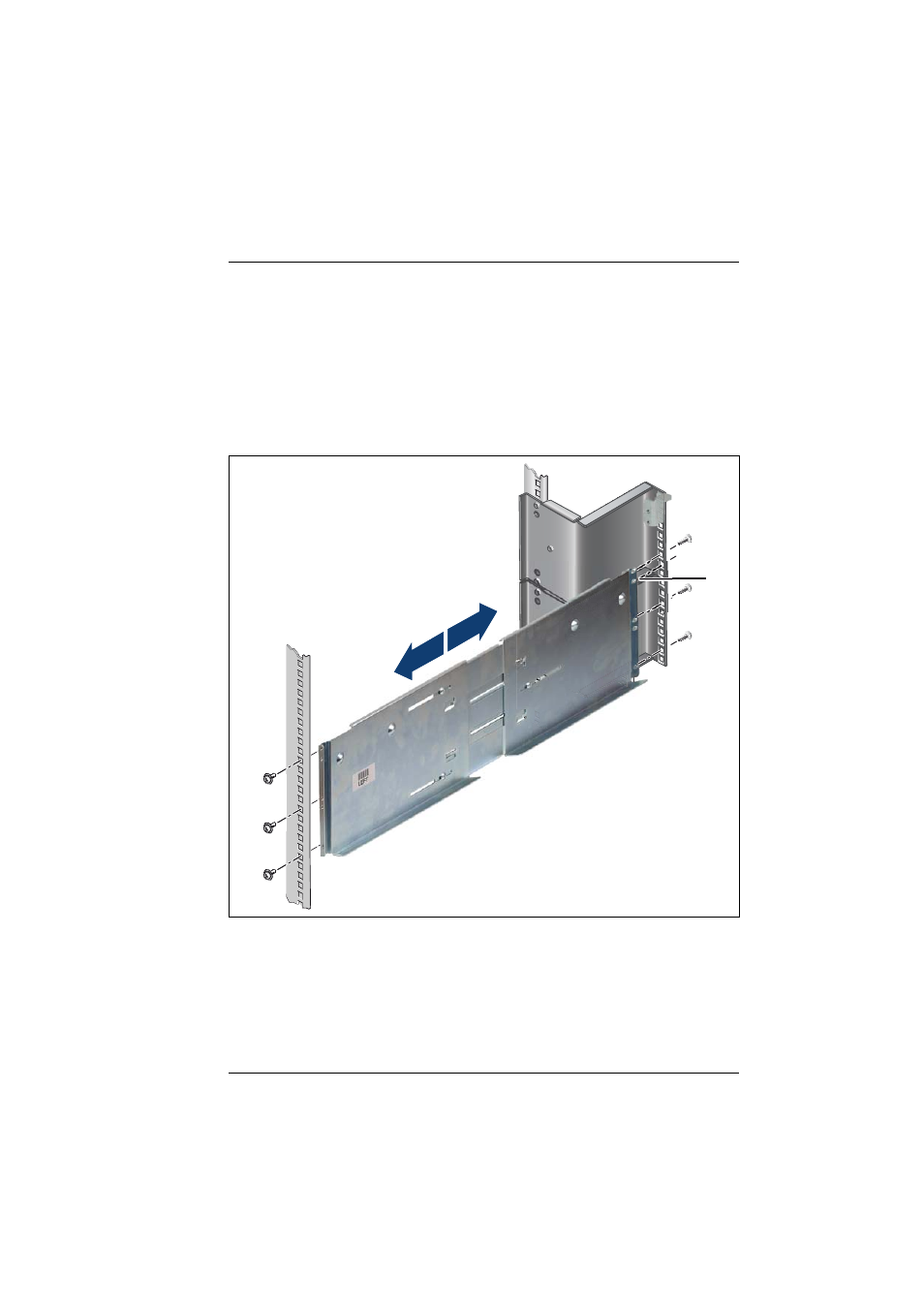

Figure 3: Attaching the left carrier rail
Ê Position the carrier rail in the support bracket (insert knob) - see (1).
I
For the Japanese market:
There is no support bracket. Please position the support system
directly on the support upright.
/
