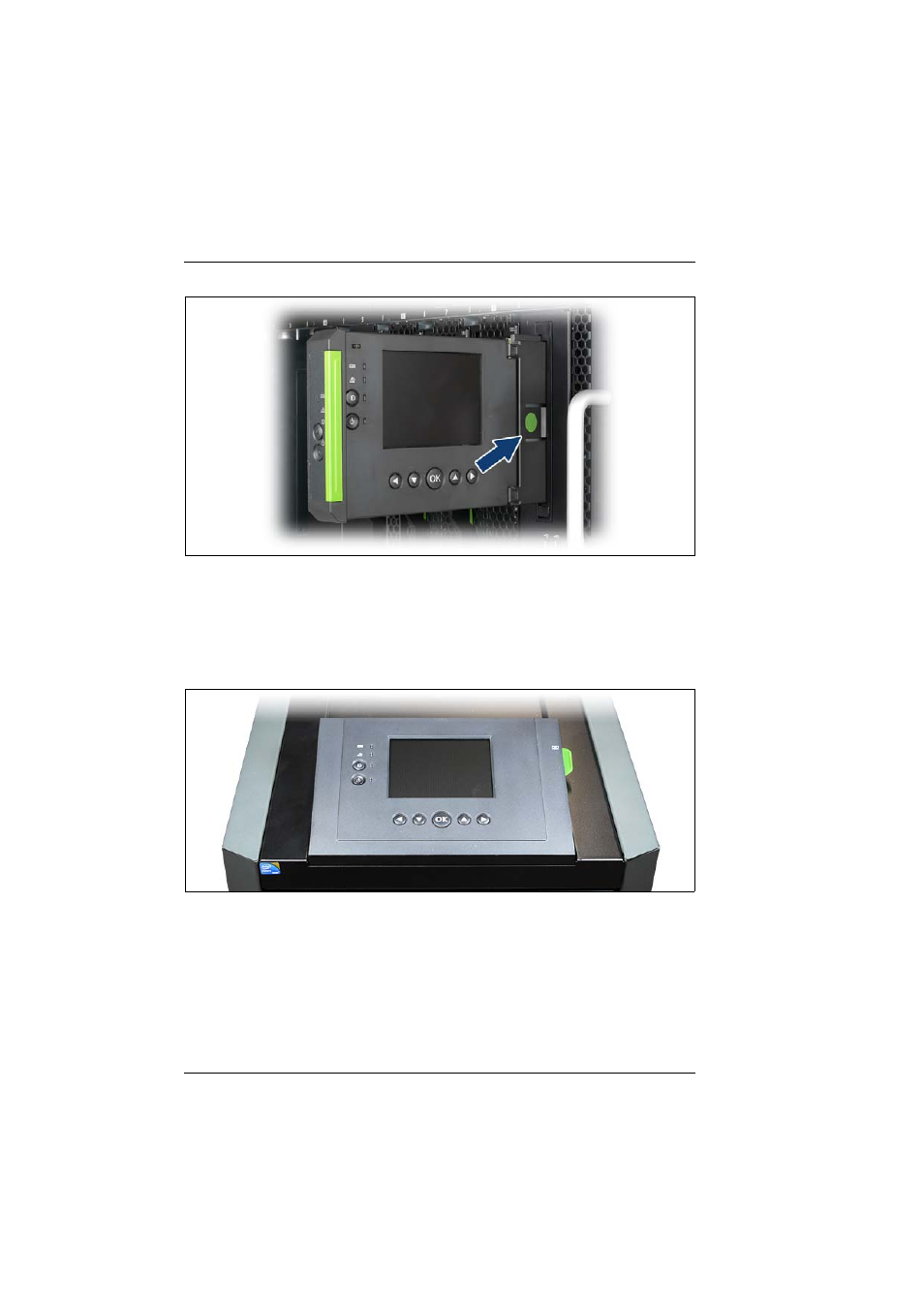

Figure 11: Locking the ServerView Local Service Display for Blade (rack version)
V
CAUTION!
Press the touch point (see arrow) of the ServerView Local Service
Display for Blade before you push it back into the frame of the system
unit.
Figure 12: ServerView Local Service Display for Blade (floorstand version)
At the BX400 S1 system unit floorstand version, the ServerView Local Service
Display for Blade is placed on top of the system unit.
