3-4 Front Panel Descriptions Studio Color LCD Controller
Front Panel Descriptions

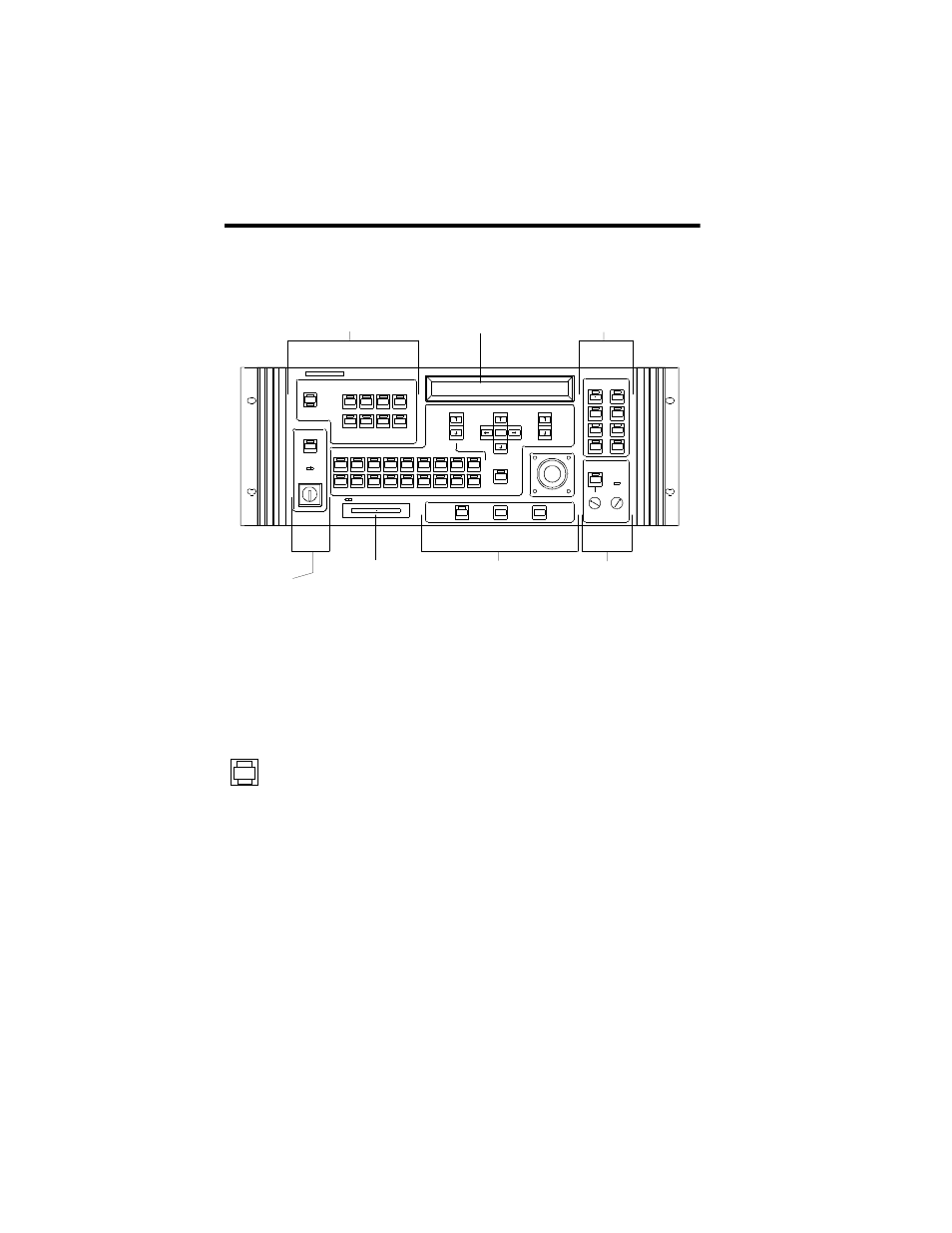

Figure 3-1 is the first of two drawings that show groups of
keys on the controller’s front panel. Descriptions of these
key groups follow the figure.
Figure 3-1. First of two drawings showing the LCD
controller’s front panel.
Address/Preset keys:
key: This key toggles the controller
between Address mode and Preset mode, described below.
The controller’s current state is indicated by either the
Address or Preset LED being ON.
Each of the eight numbered keys has an LED that provides
visual confirmation of active fixture numbers and presets.
• In Address mode (the default mode), these keys
correspond to the eight fixture numbers. You use the
eight Address keys to select one or more fixture numbers
for programming, editing, or viewing parameters. An
Address/Preset keys LCD status display User keys
Advance/Rate controls Select/Record/Erase keys RAM card slot Power/Slave/
Standby
