Remote Enable
Studio Color LCD Controller
3.
To return from “live” control press the
key. The
Select LED stops flashing and the selected fixtures return to
their original programmed settings.
Remote Enable
Located on the rear panel of the controller is a Remote
Enable connector that allows you to remotely enable and
disable the controller as described below:
•
Sending a voltage of 0 V DC disables the controller (all
fixtures go dark, all wheels stop moving, and all in-
progress moves finish immediately).
•
Sending a voltage between +5 V to +16 V DC to returns
the controller to its previous state. If the controller was
previously in Standby (with the Standby LED ON), the
controller returns to Standby; if the controller was not
previously in Standby, the controller resumes operation.
The female 3.5 mm (1/8 in) mini-phone jack accepts a 3.5
mm mini-phone connector (male). (The controller functions
normally with nothing attached to the Remote Enable
connector.)

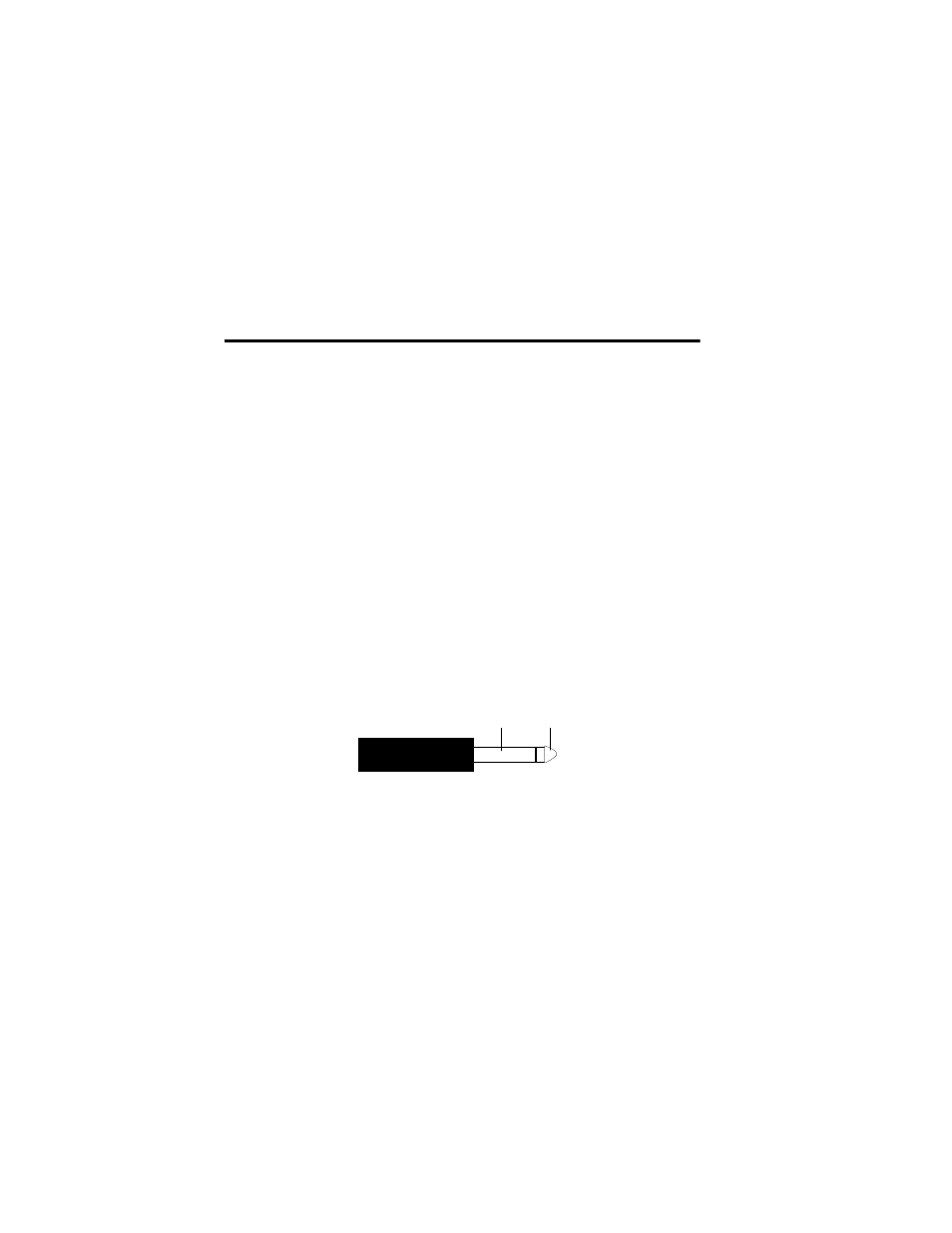

Figure 6-6. Polarity of the remote enable connector.
Tip +
Sleeve -
