2-14 Connecting Fixtures Studio Color LCD Controller
4. Press the button, then use the and arrow
buttons to select ADDR as shown below:

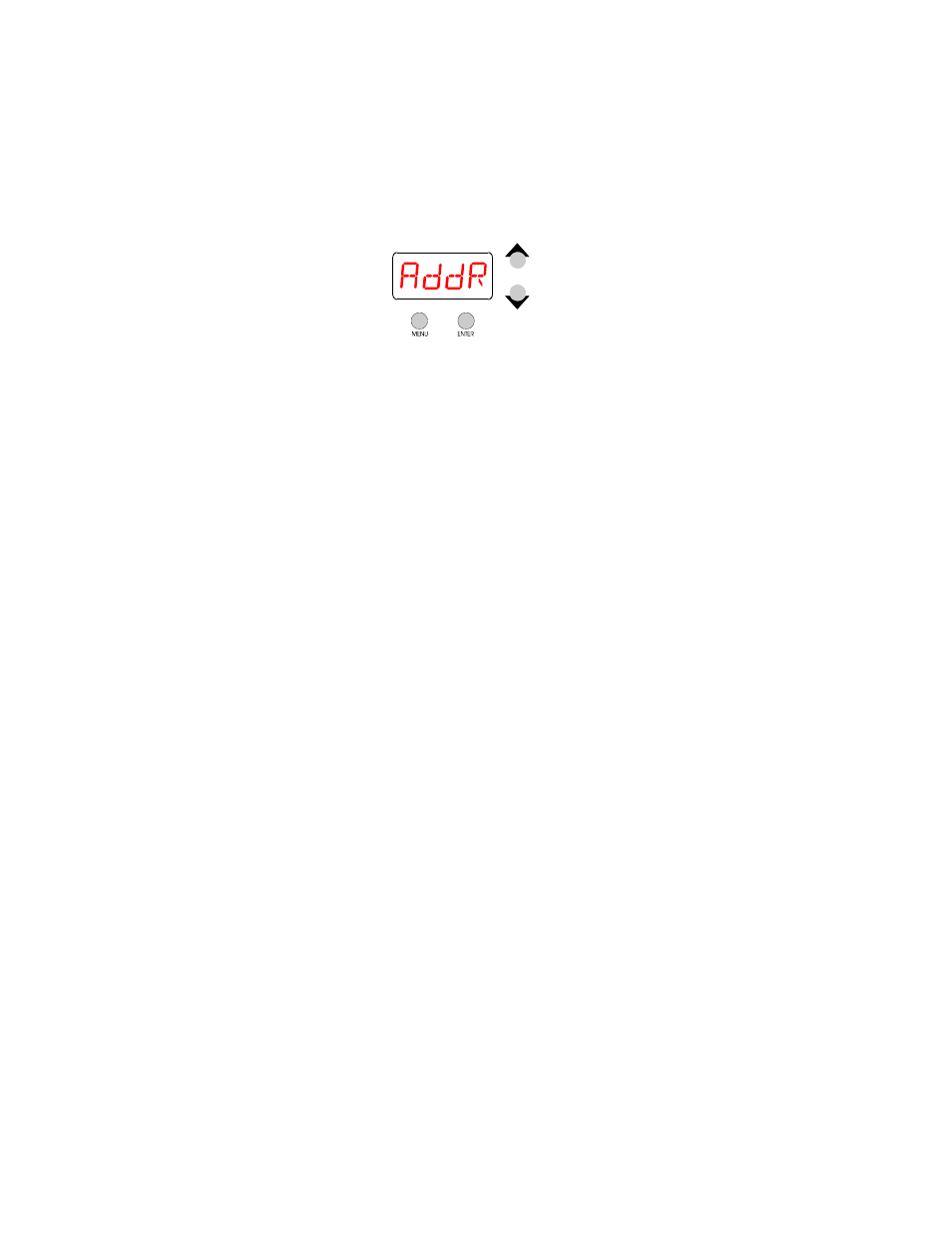

Figure 2-9. Configuring the fixture to be controlled by
fixture numbers rather than DMX 512 addresses.
5. Press the button to save your selection, then keep
pressing the button until ADDR is again displayed.
6. Repeat the procedure in the section titled “Setting A Fixture
Number” on page 2-11.
Cables and Terminators
There are two main types of cabling you can use: data-grade
cable and microphone cable. Although pin-compatible
microphone cable is suitable for small-scale designs, data
cable is recommended, especially for longer cable runs. Data
cable is designed to carry a higher-quality signal with less
susceptibility to electromagnetic interference.
The cable you use should have the characteristics listed
below:
• 2-conductor twisted pair plus a shield
• maximum capacitance between conductors - 30 pF/ft.
• maximum capacitance between conductor and shield - 55
pF/ft.
• maximum resistance of 20
Ω
/1000 ft.
• nominal impedance 100–140
Ω
• 22–24 AWG with insulation having a dielectric rating of
300 volts or higher
Belden 9841 data-grade cabling meets specifications for EIA
RS-485 applications and is highly recommended for use with
Studio Color.
