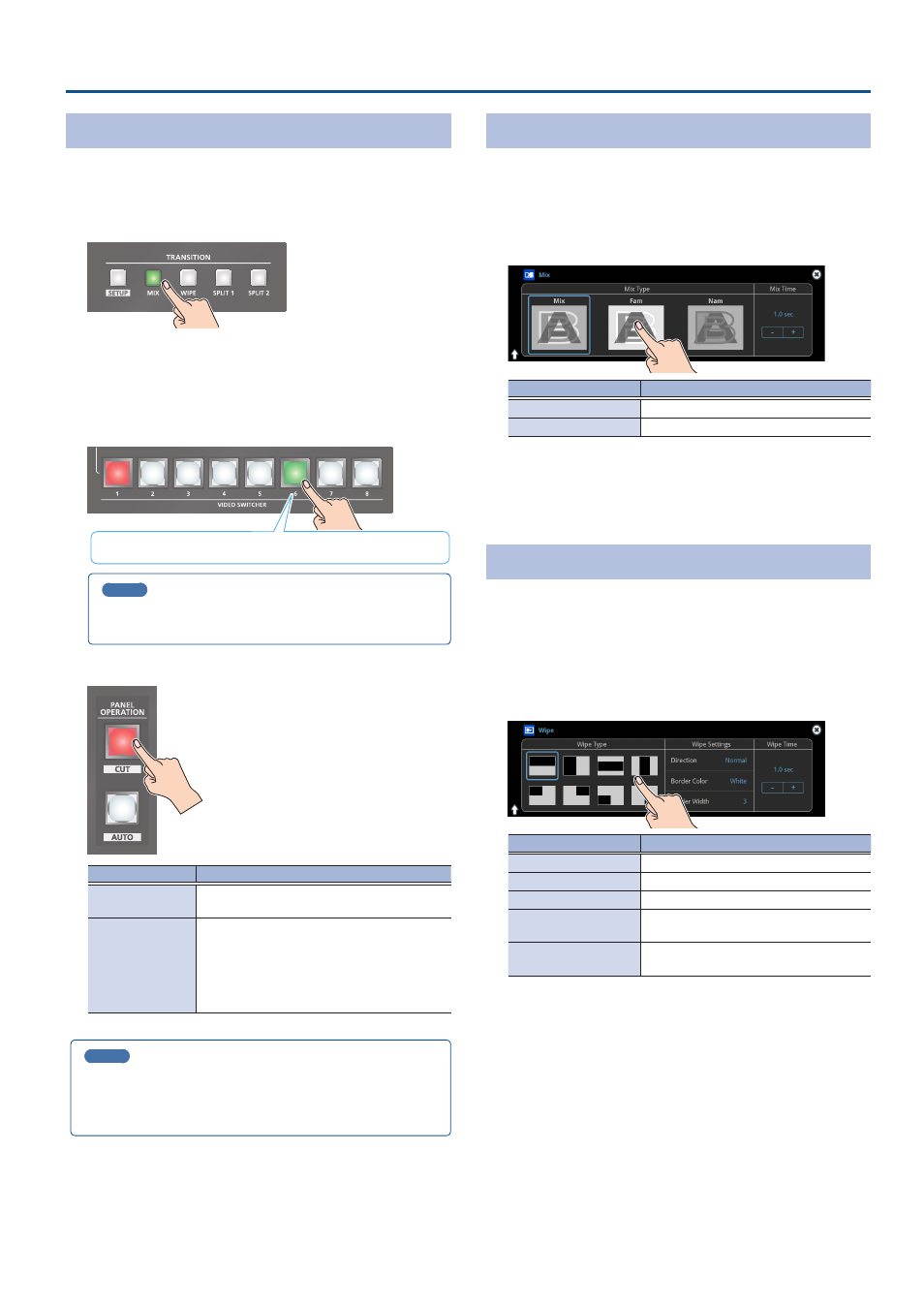

21
Video Operations
Switching in the PGM/PST Mode
Here are the steps when selecting “PGM/PST mode” in the operation
mode settings.
1 . Press the [MIX] or [WIPE] button to select the transition
effect.
2 . Press the MODE [INPUT SELECT] button.
3 . Press a VIDEO SWITCHER [1]–[8] button to select the preview
output video (the video to be output next).
You can check the preview output video in the PVW section of the
multi-view.
Lit Green: Preview output video (the video to be output next)
MEMO
You can also directly touch the Multi-View, Input-View or Still-
View screens to select a video signal.
4 . Press the [CUT] or [AUTO] button.
Button to operate Action taken when pressed
[CUT] button
(lit up red)
The video switches instantly.
[AUTO] button
(blink red)
A switch (transition) effect is applied, and the
video switches automatically.
Set the video transition time from the [MENU]
button
Ó
“Transition”
Ó
“Mix”
Ó
“Mix Time”
or [MENU] button
Ó
“Transition”
Ó
“Wipe”
Ó
“Wipe Time”.
MEMO
You can change the transition pattern by which the mix/wipe occurs.
Ø
“Changing the Mix Pattern” (p. 21)
Ø
“Changing the Wipe Pattern” (p. 21)
Changing the Mix Pattern
You can change the transition pattern used for a mix transition.
1 . With the [MIX] button lit up, press the TRANSITION [SETUP]
button.
The setup screen appears.
2 . Touch the screen to access the settings.
Menu item Explanation
Mix Type Specifies the transition pattern for mix.
Mix Time Specifies how long the transition takes.
* For details on the parameters, refer to “4: Transition” (p. 105).
3 . Press the [SETUP] button to close the screen.
Changing the Wipe Pattern
You can change the wipe transition pattern, wipe direction and other
properties.
1 . With the [WIPE] button lit up, press the TRANSITION [SETUP]
button.
The setup screen appears.
2 . Touch the screen to access the settings.
Menu item Explanation
Wipe Type Specifies the transition pattern for wipe.
Wipe Time Specifies how long the transition takes.
Direction Specifies the direction of wipe.
Border Color
Specifies the color of the border added to
the edge of the wipe area.
Border Width
Specifies the width of the border added to
the edge of the wipe area.
* For details on the parameters, refer to “4: Transition” (p. 105).
3 . Press the [SETUP] button to close the screen.
