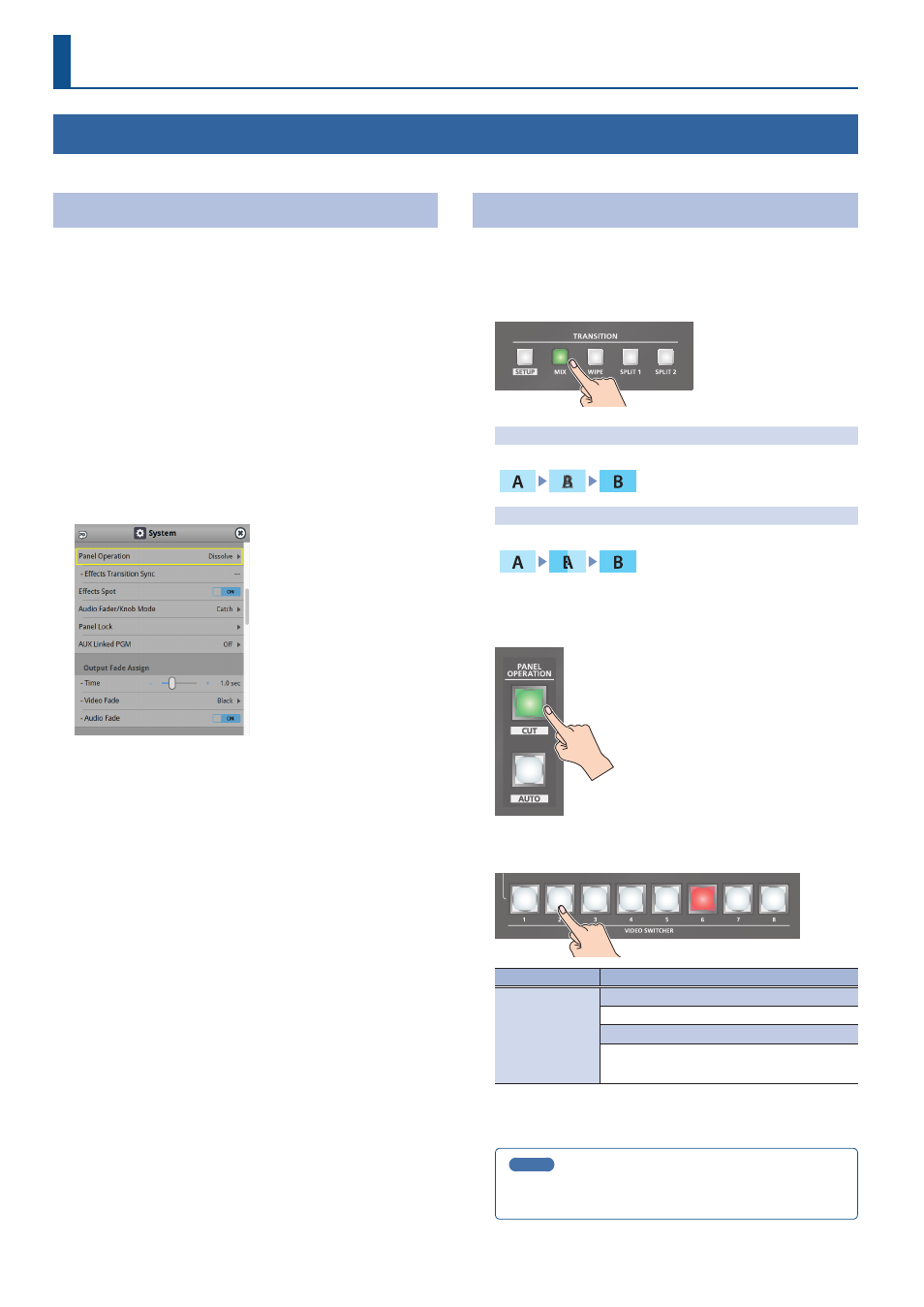

20
Video Operations
Switching the Video
You can switch between the videos of the PGM bus and PST bus to specify the final output.
Setting the Operation Mode
There are two operation modes for switching between videos: “Dissolve”
and “PGM/PST”.
Dissolve mode (factory setting)
This mode selects the video to output and immediately outputs it to the
PGM bus.
Press the [CUT] or [AUTO] button to select what happens when you
switch between videos (the buttons light up green when pressed).
PGM/PST mode
In this mode, the PST video is displayed in the PVW bus, and you can
check the video before outputting it to the PGM bus.
Press the VIDEO SWITCHER [1]–[8] buttons to select a PST video (the
buttons light up green). The content is shown in the PVW bus.
1 . [MENU] button Ó “System” Ó select “Panel Operation”, and
press the [VALUE] knob.
2 . Use the [VALUE] knob to select “Dissolve”, or “PGM/PST”, and
press the [VALUE] knob.
3 . Press the [MENU] button to close the menu.
Switching in the Dissolve Mode
This explains what to do when selecting “Dissolve mode” (p. 20) in the
operation mode settings.
1 . Press the [MIX] or [WIPE] button to select the transition
effect.
MIX
The two videos are mixed as the transition occurs.
WIPE
The next video moves across to replace the original video.
2 . Press the MODE [INPUT SELECT] button.
3 . Press the [CUT] or [AUTO] button.
4 . Press the VIDEO SWITCHER [1]–[8] buttons, and then select
the video signal to output.
Button to operate Action taken when pressed
VIDEO SWITCHER
[1]–[8] button
When [CUT] button is lit up green
The video switches instantly.
When [AUTO] button is lit up green
A switch (transition) effect is applied, and the
video switches automatically.
* During the transition effect, the selected VIDEO SWITCHER button
blinks red, and then remains lit up red when the transition effect
finishes.
MEMO
You can also directly touch the Multi-View, Input-View or Still-
View screens to select a video signal.
