S UMMIT S WITCH I NSTALLATION AND U SER G UIDE 1-17
S UMMIT R EAR V IEW
S
UMMIT
R
EAR
V
IEW

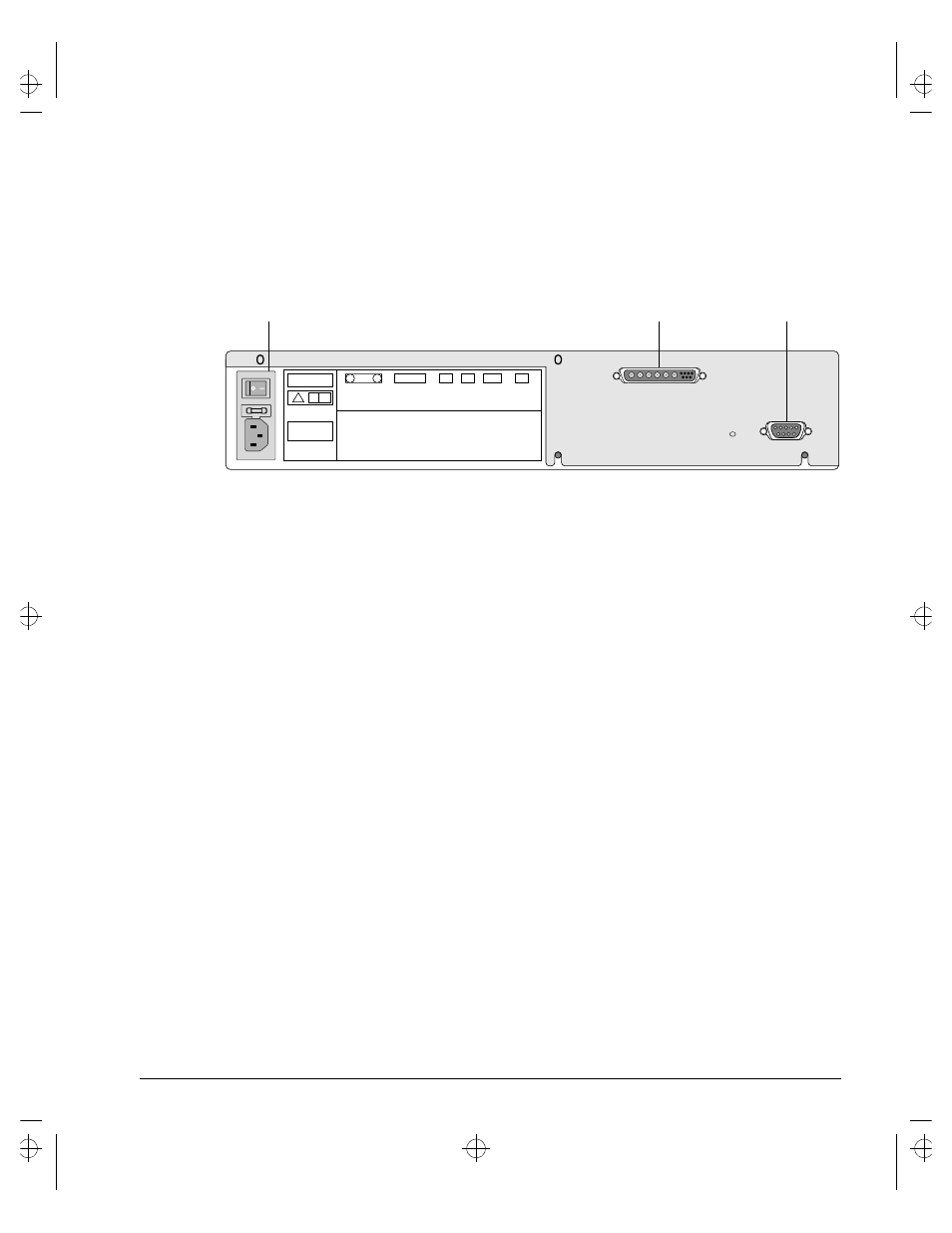

Figure 1-9 shows the rear view for the Summit switch.
Figure 1-9: Summit rear view
P OWER S OCKET
The Summit automatically adjusts to the supply voltage. The power supply operates
down to 90 V. The fuse is suitable for both 110 V AC and 220-240 V AC operation.
S ERIAL N UMBER
Use this serial number for fault-reporting purposes.
C ONSOLE P ORT
Use the console port (9-pin, “D” type connector) for connecting a terminal and carrying
out local out-of-band management.
R EDUNDANT P OWER S UPPLY P ORT
The redundant power supply (RPS) port is used to connect to a Summit RPS or a
Summit Virtual Chassis. Both the Summit RPS and the Summit Virtual Chassis provide
a redundant, load-shared power source to the Summit. If the primary power source for
the switch fails, the RPS in either the Summit RPS or the Summit Virtual Chassis takes
over, ensuring uninterrupted network operation.
130001-00 Rev.03
C
MADE IN USA
U
L U
L
!
SERIAL NUMBER
MAC ADDRESS
PART NUMBER
MODEL/NUMBER
Console port RPS port Power socket and fuse
