82 Introduction
2.4 Stat
us Displa
ys

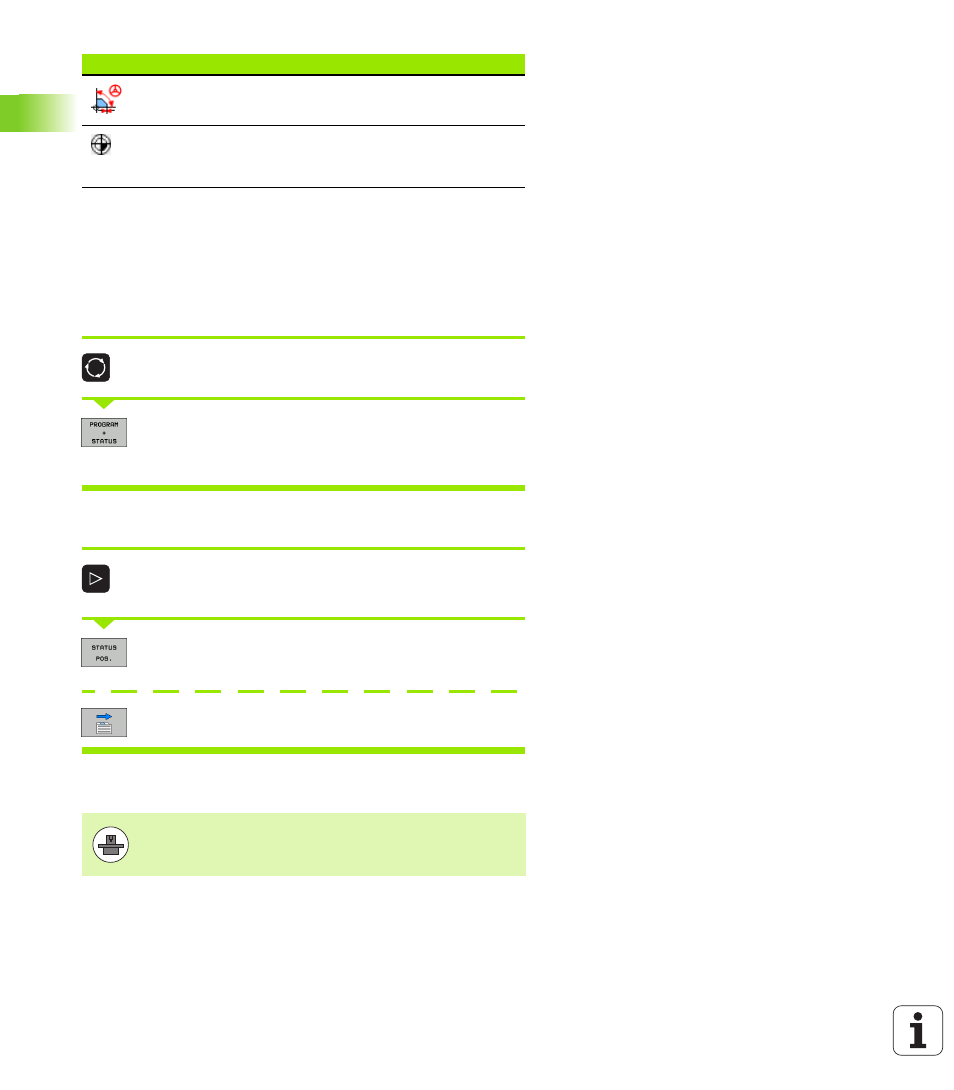

Additional status displays
The additional status displays contain detailed information on the
program run. They can be called in all operating modes except for the
Programming and Editing mode of operation.
To switch on the additional status display:
Call the soft-key row for screen layout.
Screen layout with additional status display: In the
right half of the screen, the TNC shows the Overview
status form.
To select an additional status display:
Shift the soft-key rows until the STATUS soft keys
appear.
Either select the additional status display, e.g.
positions and coordinates, or
use the soft keys to select the desired view.
With the soft keys or switch-over soft keys, you can choose directly
between the available status displays.
One or more global program settings are active
(software option)
Number of the active presets from the preset table.
If the datum was set manually, the TNC displays the
text MAN behind the symbol.
Symbol Meaning
Please note that some of the status information described
below is not available unless the associated software
option is enabled on your TNC.
