HR 420 electronic handwheel
Unlike the HR 410, the HR 420 portable handwheel is equipped with
a display. In addition, you can use the handwheel soft keys for
important setup functions, e.g. datum setting or entering and running
M functions.
As soon as you have activated the handwheel with the handwheel
activation key, the operating panel is locked. This is indicated by a pop-
up window on the TNC screen.

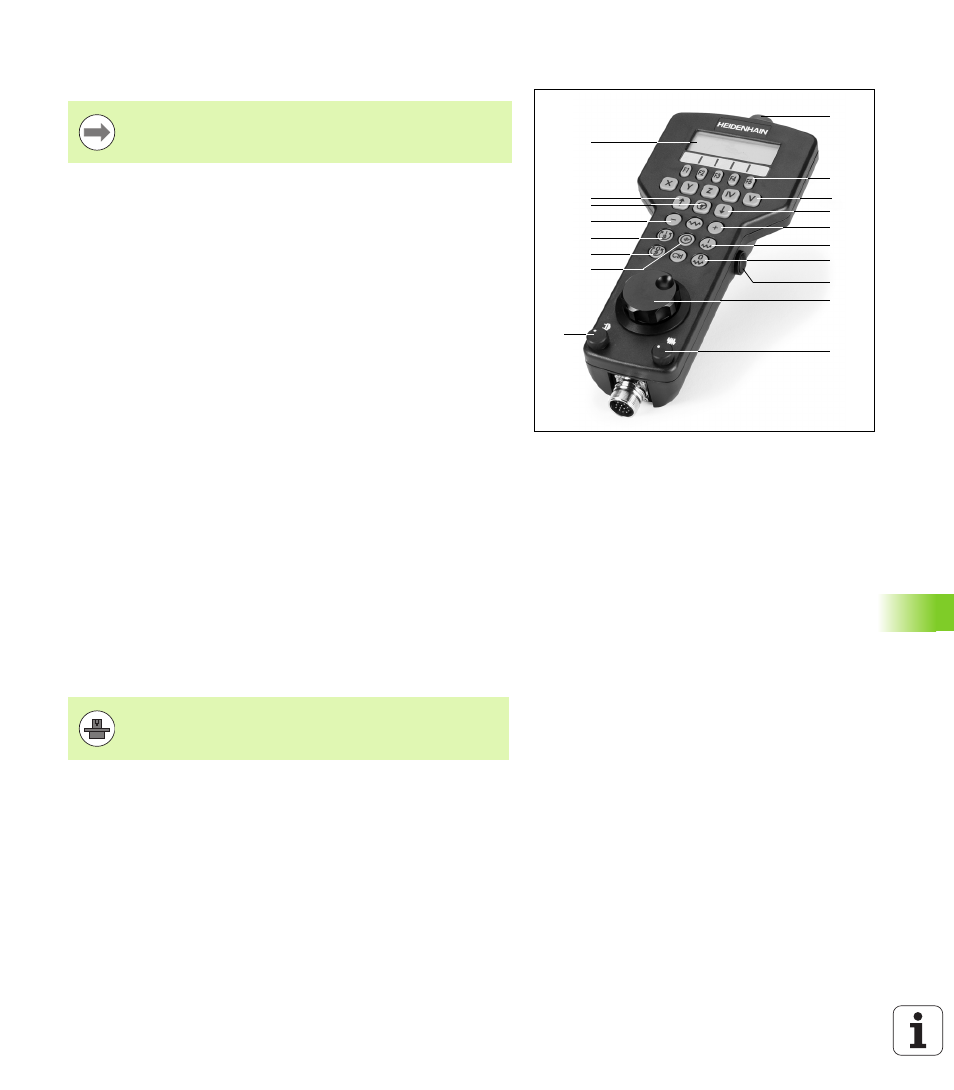

The HR 420 handwheel features the following operating elements:
It is also possible to move the machine axes with the handwheel
during program run if M118 is active.
2
5
7
8
1
3
4
6
7
9
11
12
14
16
15
13
10
6
Handwheel HR 420 is mandatory if you want to use the
handwheel positioning in virtual axis function (see “Virtual
axis VT” on page 390).
1 EMERGENCY STOP button
2 Handwheel display for status display and function selection
3 Soft keys
4 Axis address keys
5 Handwheel activation key
6 Arrow keys for defining handwheel sensitivity
7 Key for TNC traverse direction of the selected axis
8 Switch-on spindle (machine-dependent function)
9 Switch-off spindle (machine-dependent function)
10 “Generate NC block” key
11 NC start
12 NC stop
13 Permissive button
14 Handwheel
15 Spindle speed potentiometer
16 Feed rate potentiometer
Your machine tool builder can make additional functions
of the HR420 available. Refer to your machine tool
manual.
