368 Programming: Special Functions
1
1
.2 Dynamic Collision Monit
o
ri
ng (Sof
tw
ar
e Option)

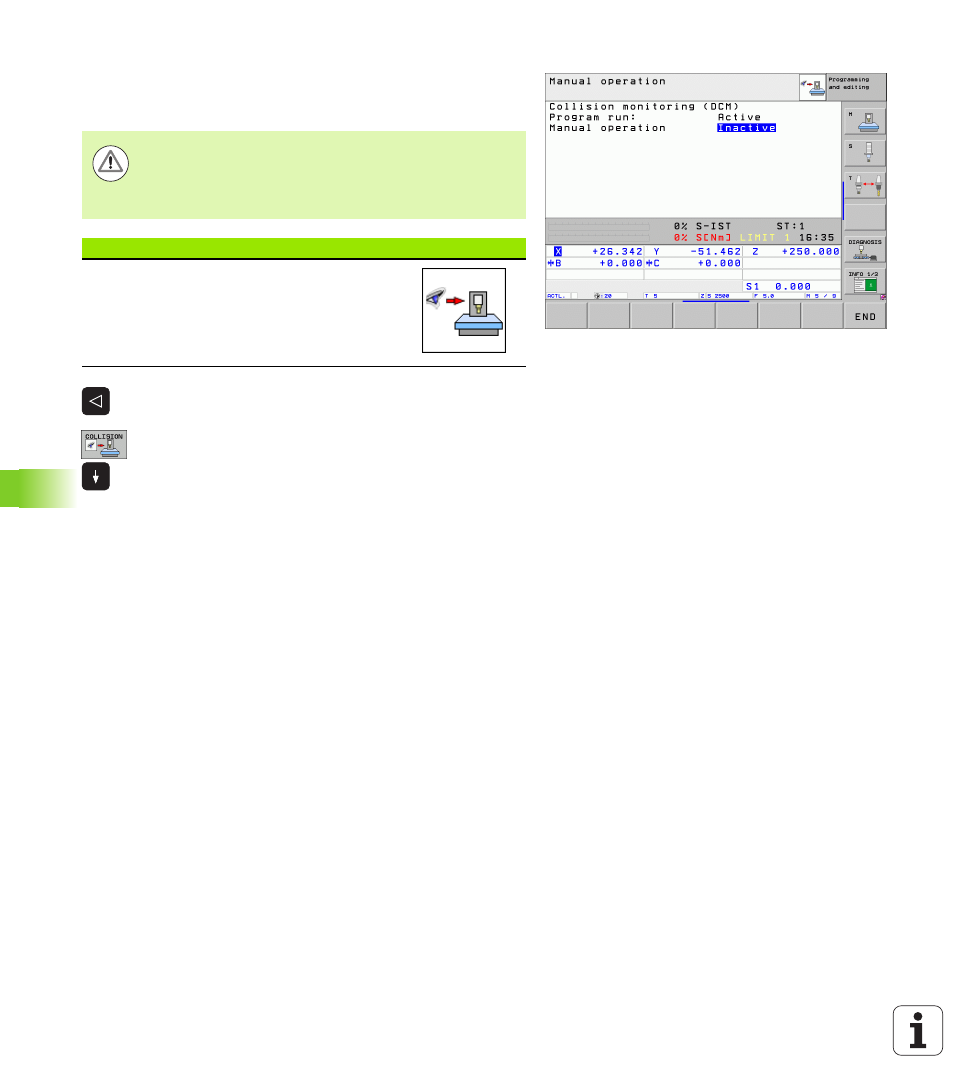

Deactivating Collision Monitoring
If you have to reduce the distance between collision-monitored
objects for lack of space, the collision monitoring function must be
deactivated.
U Shift the soft-key row if necessary.
U Select the menu for deactivating collision monitoring.
U Select the Manual Operation menu item.
U To deactivate collision monitoring, press the ENT key,
and the symbol for collision monitoring in the
operating mode display starts to blink.
U Move axes manually, pay attention to traverse direction
U To reactivate collision monitoring: Press the ENT key
Danger of collision!
If you have deactivated the collision monitoring, the
symbol for collision monitoring flashes (see following
table).
Function Symbol
Symbol that appears in the operating mode bar
when collision monitoring is not active.
