192 Programming: Programming Contours
6.3 Cont
our Appr
oac
h
and Depar
tur
e
6.3 Contour Approach and
Departure

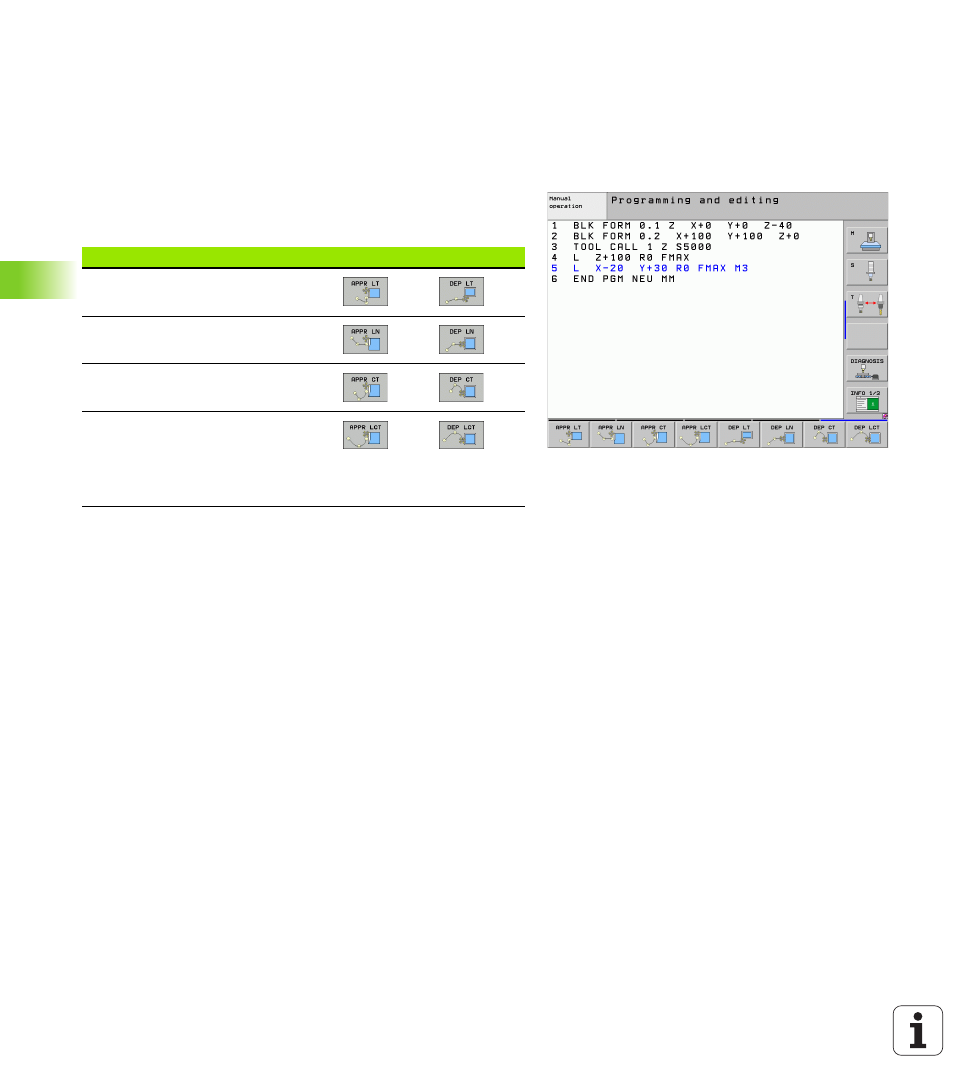

Overview: Types of paths for contour approach
and departure
The functions for contour approach APPR and departure DEP are
activated with the APPR/DEP key. You can then select the desired
path function with the corresponding soft key:
Approaching and departing a helix
The tool approaches and departs a helix on its extension by moving in
a circular arc that connects tangentially to the contour. You program
helical approach and departure with the APPR CT and DEP CT
functions.
Function Approach Departure
Straight line with tangential
connection
Straight line perpendicular to a
contour point
Circular arc with tangential
connection
Circular arc with tangential
connection to the contour. Approach
and departure to an auxiliary point
outside the contour on a tangentially
connecting line.
