HEIDENHAIN iTNC 530 (340 49x-03) Pilot - Manual (Page 87)

87
Cyc
les for Multipass
Milling

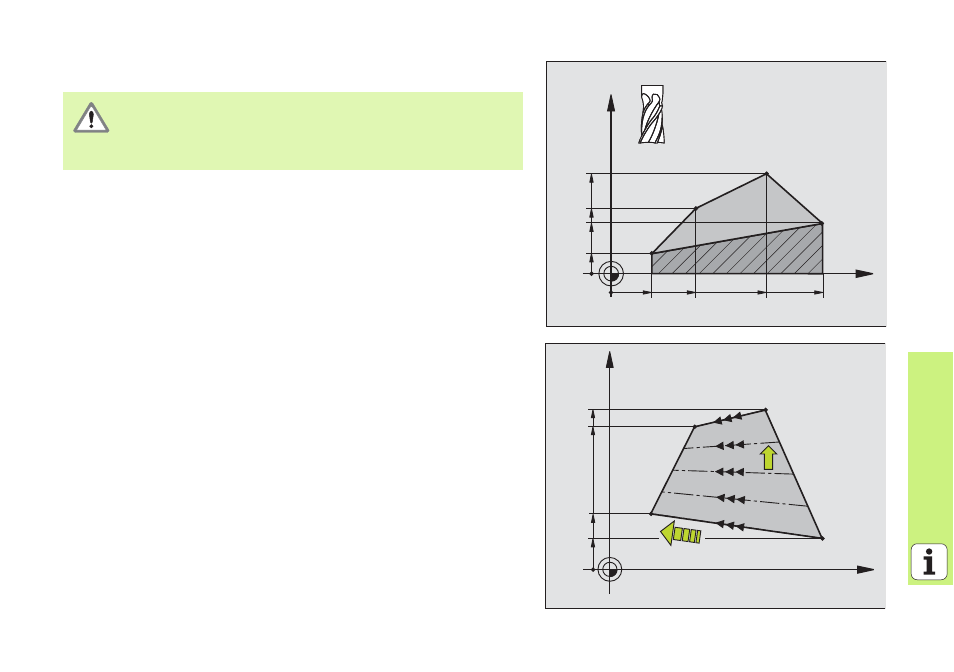

RULED SURFACE (Cycle 231)
8 CYCL DEF: Select Cycle 231 RULED SURFACE
8 Starting point in 1st axis: Q225
8 Starting point in 2nd axis: Q226
8 Starting point in 3rd axis: Q227
8 2nd point in 1st axis: Q228
8 2nd point in 2nd axis: Q229
8 2nd point in 3rd axis: Q230
8 3. point in 1st axis: Q232
8 3. point in 2nd axis: Q232
8 3. point in 3rd axis: Q233
8 4. point in 1st axis: Q234
8 4. point in 2nd axis: Q235
8 4. point in 3rd axis: Q236
8 Number of cuts: Q240
8 Feed rate for milling: Q207
From the current position, the TNC positions the tool at the
starting point (point 1), first in the working plane and then in
the tool axis. Pre-position the tool in such a way that no
collision between tool and clamping devices can occur.
X
Z
Q236
Q233
Q227
Q230
Q228 Q225 Q234 Q231
X
Y
Q229
Q207
N = Q240
Q226
Q232
Q235
