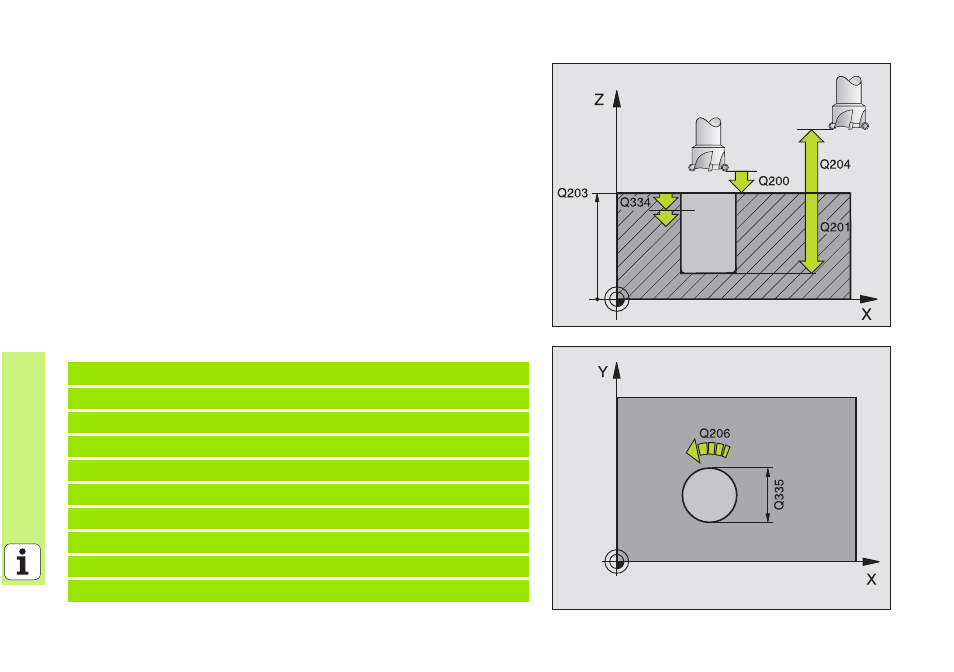

BORE MILLING (Cycle 208)
8 Pre-position to the center of the hole with R0
8 CYCL DEF: Select Cycle 208 BORE MILLING
8 Set-up clearance: Q200
8 Depth: Distance between workpiece surface and bottom of hole:
Q201
8 Feed rate for plunging: Q206
8 Infeed per helix: Q334
8 Workpiece surface coordinate: Q203
8 2. Set-up clearance: Q204
8 Nominal diameter of the hole: Q335
8 Pilot-drilled diameter: Q342
„ Type of milling: Q351
Climb: +1
Up-cut: –1
12 CYCL DEF 208 BORE MILLING
Q200=2 ;SET-UP CLEARANCE
Q201=-80 ;DEPTH
Q206=150 ;FEED RATE FOR PLUNGING
Q334=1.5 ;INFEED DEPTH
Q203=+100 ;SURFACE COORDINATE
Q204=50 ;2. SET-UP CLEARANCE
Q335=25 ;NOMINAL DIAMETER
Q342=0 ;ROUGHING DIAMETER
Q351=0 ;CLIMB OR UP-CUT
