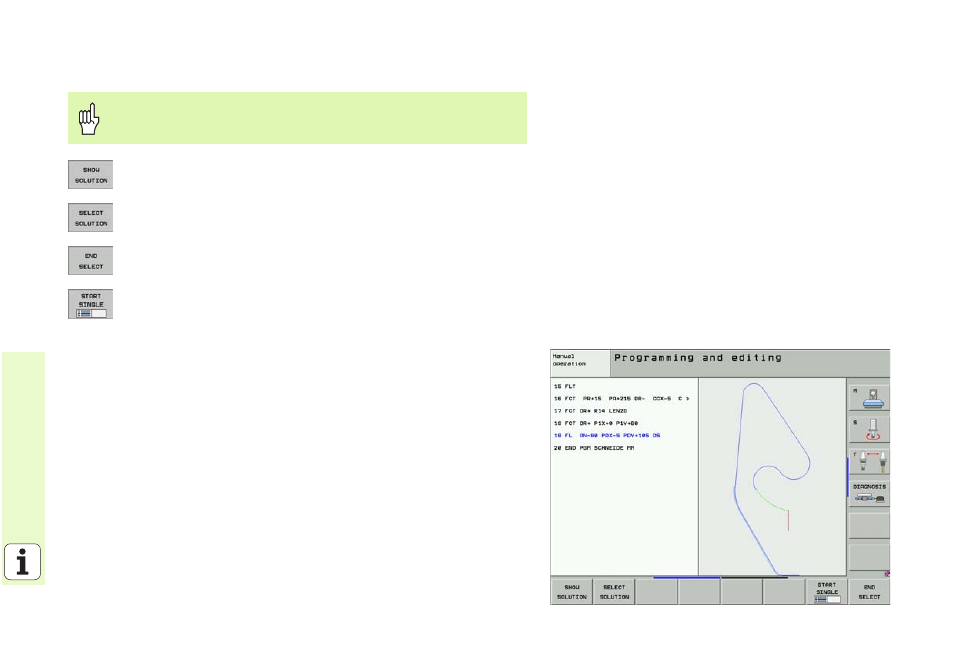

Working with the Interactive Graphics
8 Show the possible solutions.
8 Enter the displayed solution in the part program.
8 Enter data for subsequent contour elements.
8 Graphically display the next programmed block.
Standard colors of the interactive graphics
Select the PROGRAM+GRAPHICS screen layout.
Blue The contour element is fully defined.
Green The entered data describe a limited number of possible
solutions: select the correct one.
Red The entered data are not sufficient to determine the
contour element: enter further data.
Light blue Tool movement is programmed for rapid traverse.
