3 Manual Control and Automatic mode

40

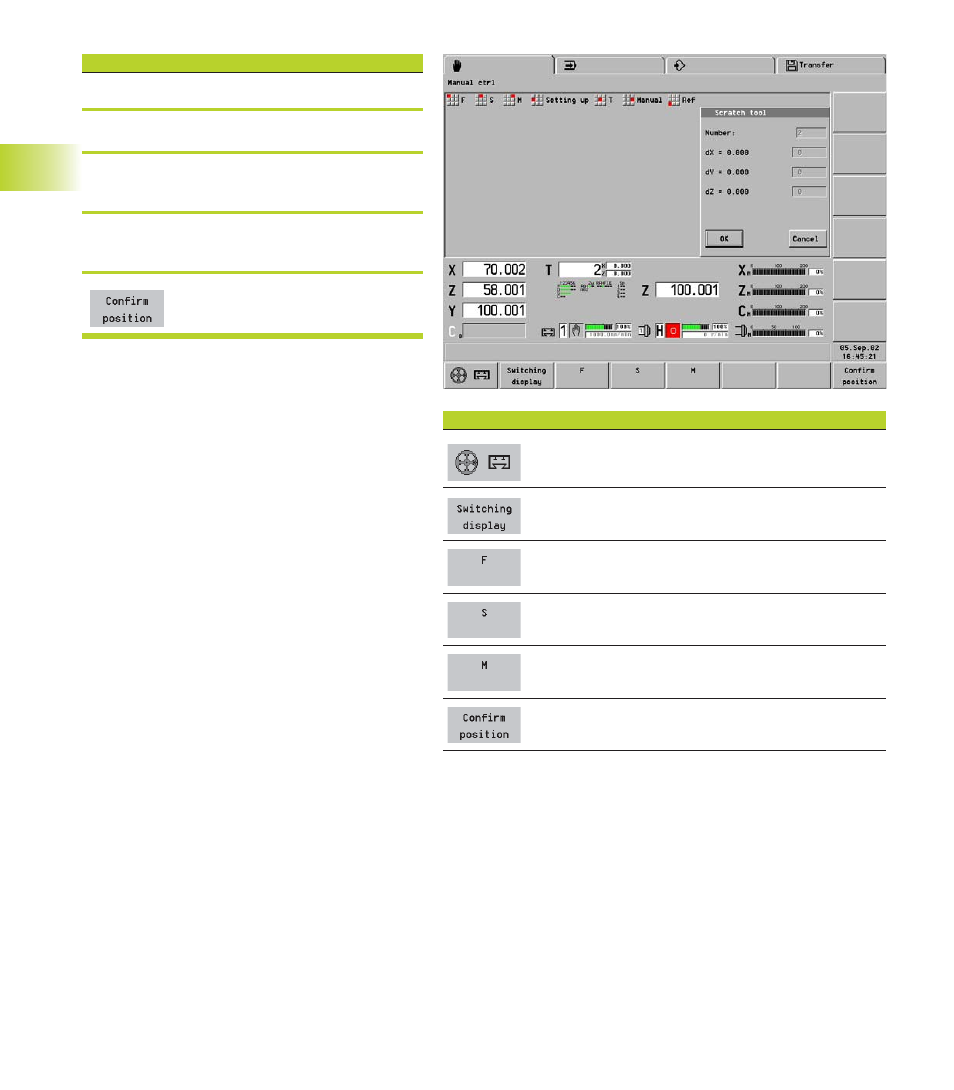

Determining tool-compensation values

Move the tool into position

<

Select ”Setting up - Tool setup – Tool compensation”

<

Assign the handwheel to the X axis – move the tool
by the compensation value

<

Assign the handwheel to the Z axis – move the tool
by the compensation value

<

The CNC PILOT loads the
compensation values

Soft keys

■

Assign a handwheel to an axis

■

Define the handwheel interpolation factor

Switch the machine display

Enter the feed per revolution

Enter the constant surface speed

Enter the M function

Accept the tool compensation values

3.4 Setup Functions
