8. Installation External Devices

8 - 16

Planning and Installation - Rev. 3 / 04.2005

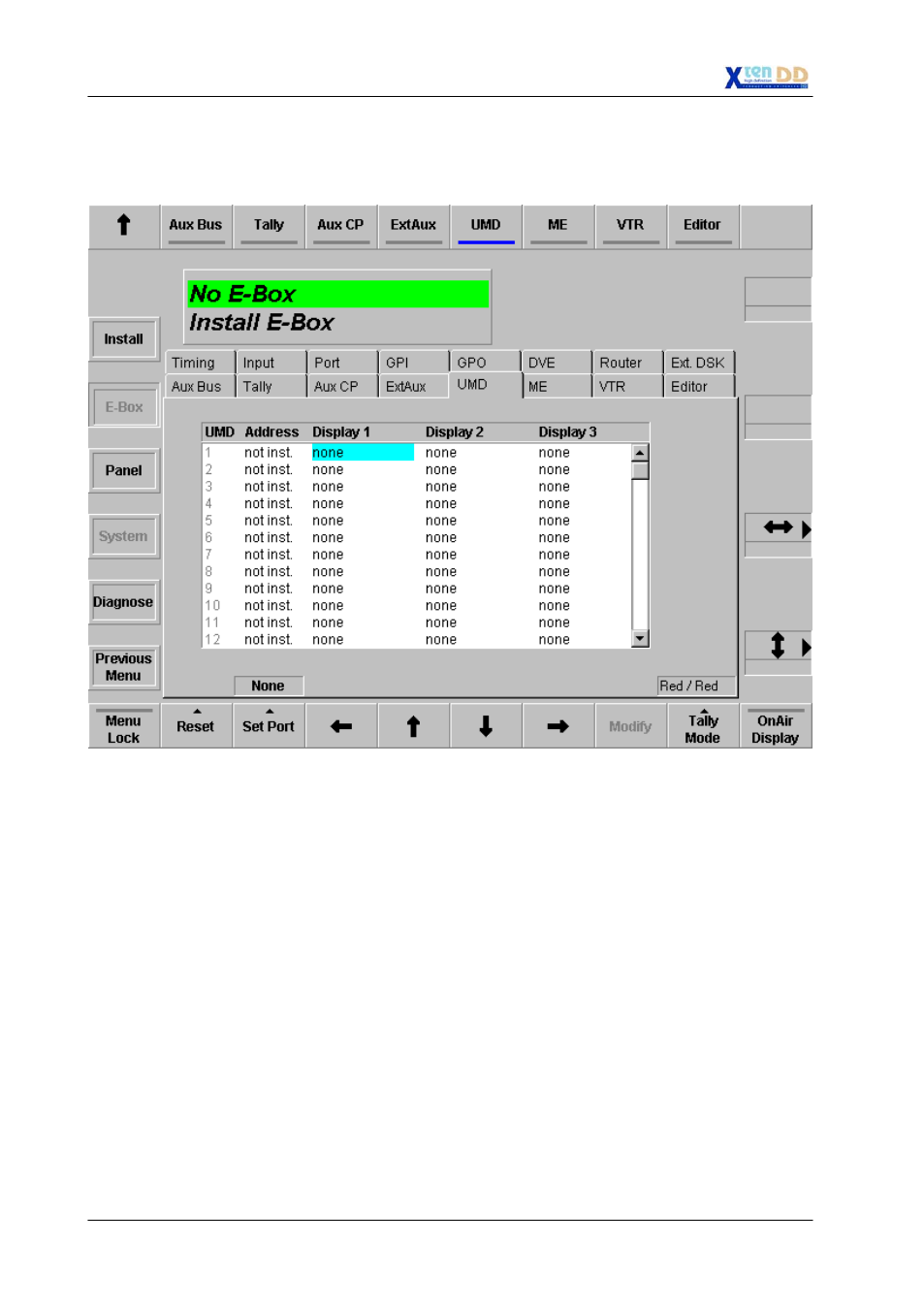

The configuration can be done in the Install E-Box menu.

The following parameters are permissible:

Reset

Set the display assignment to default values.

Set Port

Select the port you like to use.

Valid values:

1...10 (RS422 ports 1..10) or

0 to disable UMD handling = none.

Address

Select the device address (see the HEX switches on the rear panel

of the UMD devices). The UMD devices will use only the LSB

of the physical MPK addresses (which is a 32 bit address)

Valid range:

00...BF; with prefix “0x” for hex values

FF disables the device handling = not inst.

For details refer to your Under Monitor Display manual.

Enter the

Config data
