The screen of the cheapernet network has to be
earthed at one point to intercept influences from
outside. The network must be earthed only at one
point even if the network is extended further in or-
der to create clear ground potential. Earthing is
made always at the mainframe. Instead of an
usual 50W BNC terminator, a terminator with earth
screw is enclosed. The terminator has to be con-
nected with the enclosed earth wire to the
grunding terminal of the mainframe.
BNC T-type connector
50 W Terminator
with Ground Screw

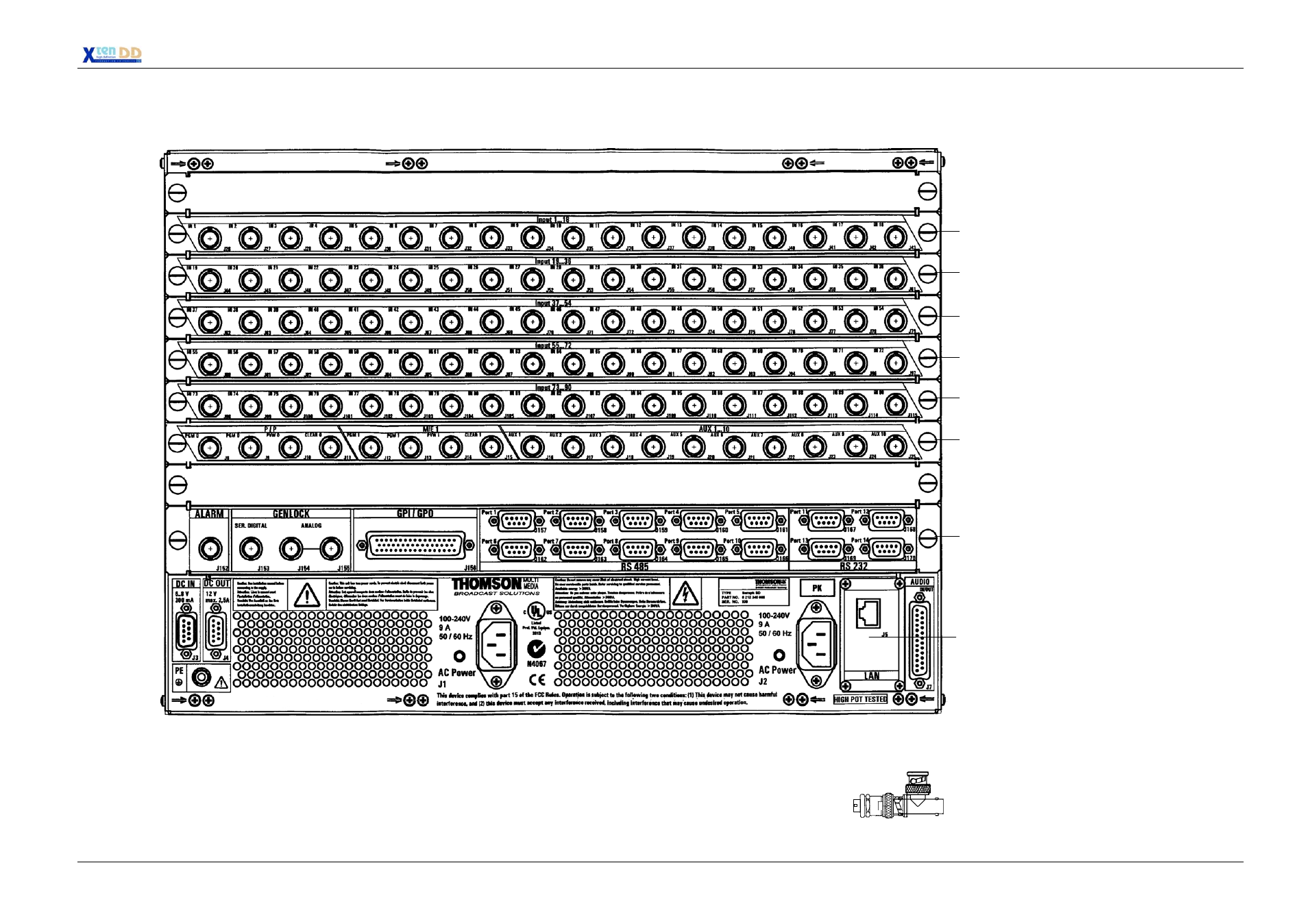

Parts of delivery:
Serial Input 1 - RC 3610
Control Module - RC 3630
LAN Interface Modules:
BNC type - RC 3407
or
RJ45 type - RC 3408
Serial Input 2 - RC 3611
Serial Input 3 - RC 3612
Serial Input 4 - RC 3613
Serial Input 5 - RC 3614
Serial Output 1 - RC 3620
5. Connection and Startup
5 - 39 Planning and Installation - Rev. 3 / 04.2005
5.5.2 MAINFRAME SH-1/2S-BM
