3-14

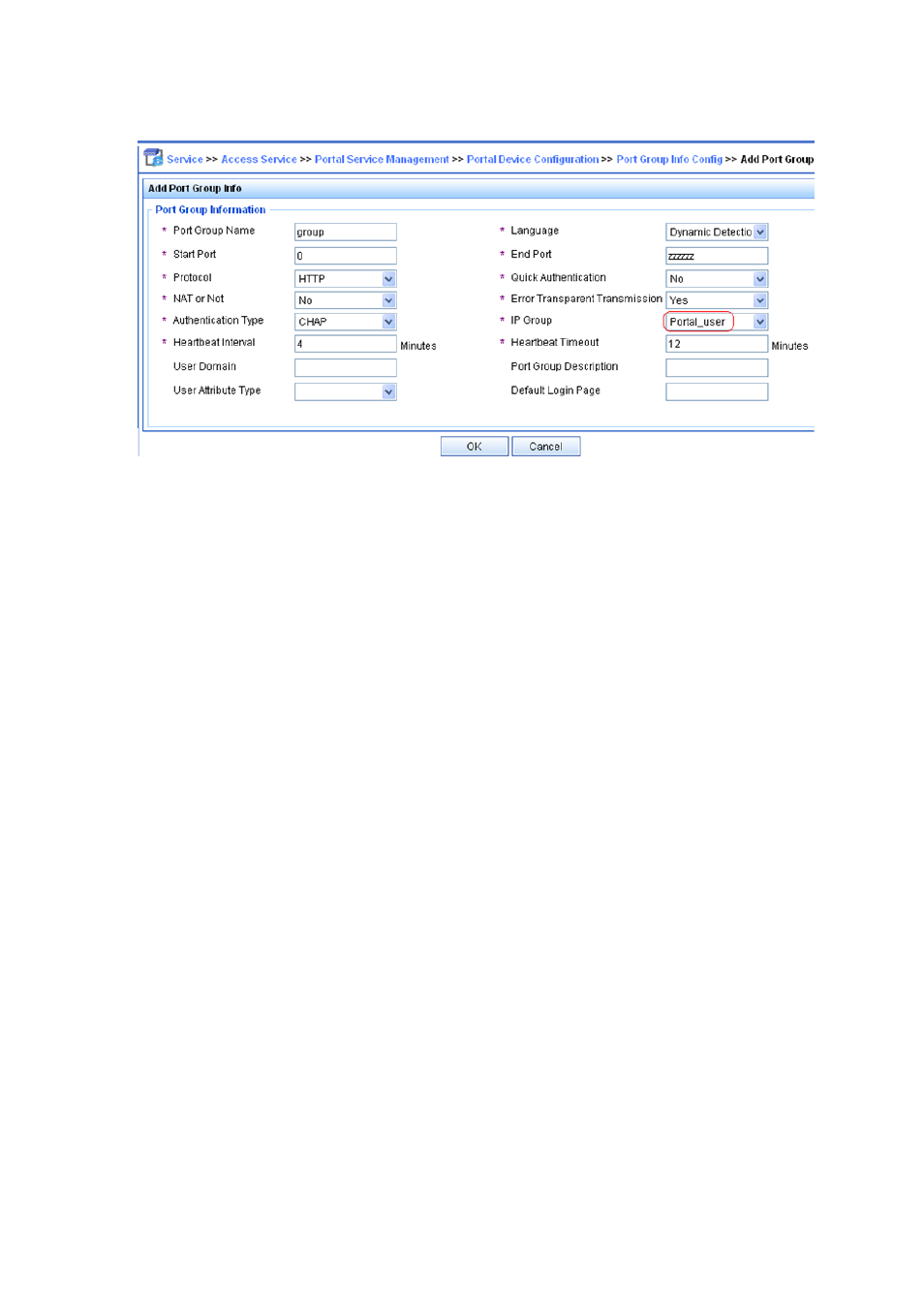

Figure 3-15 Port group configuration

# Select Service Parameters > Validate System Configuration from the navigation tree to validate

the configurations.

Configure the switch

Configure a RADIUS scheme

# Create a RADIUS scheme named rs1 and enter its view.

system-view

[Switch] radius scheme rs1

# Set the server type for the RADIUS scheme. When using the iMC server, set the server type to

extended.

[Switch-radius-rs1] server-type extended

# Specify the primary authentication server and primary accounting server, and configure the keys for

communication with the servers.

[Switch-radius-rs1] primary authentication 10.1.1.1

[Switch-radius-rs1] primary accounting 10.1.1.1

[Switch-radius-rs1] key authentication expert

[Switch-radius-rs1] key accounting expert

# Specify the scheme to include the domain names in usernames to be sent to the RADIUS server.

[Switch-radius-rs1] user-name-format with-domain

[Switch-radius-rs1] quit

Configure an authentication domain

# Create an ISP domain named dm1 and enter its view.

[Switch] domain dm1

# Configure the ISP domain to use RADIUS scheme rs1.

[Switch-isp-dm1] authentication portal radius-scheme rs1

[Switch-isp-dm1] authorization portal radius-scheme rs1

[Switch-isp-dm1] accounting portal radius-scheme rs1

[Switch-isp-dm1] quit
