Switch point identification – Ensemble Designs 9430 Flexible Matrix Router for 3G / HD / SD / ASI User Manual

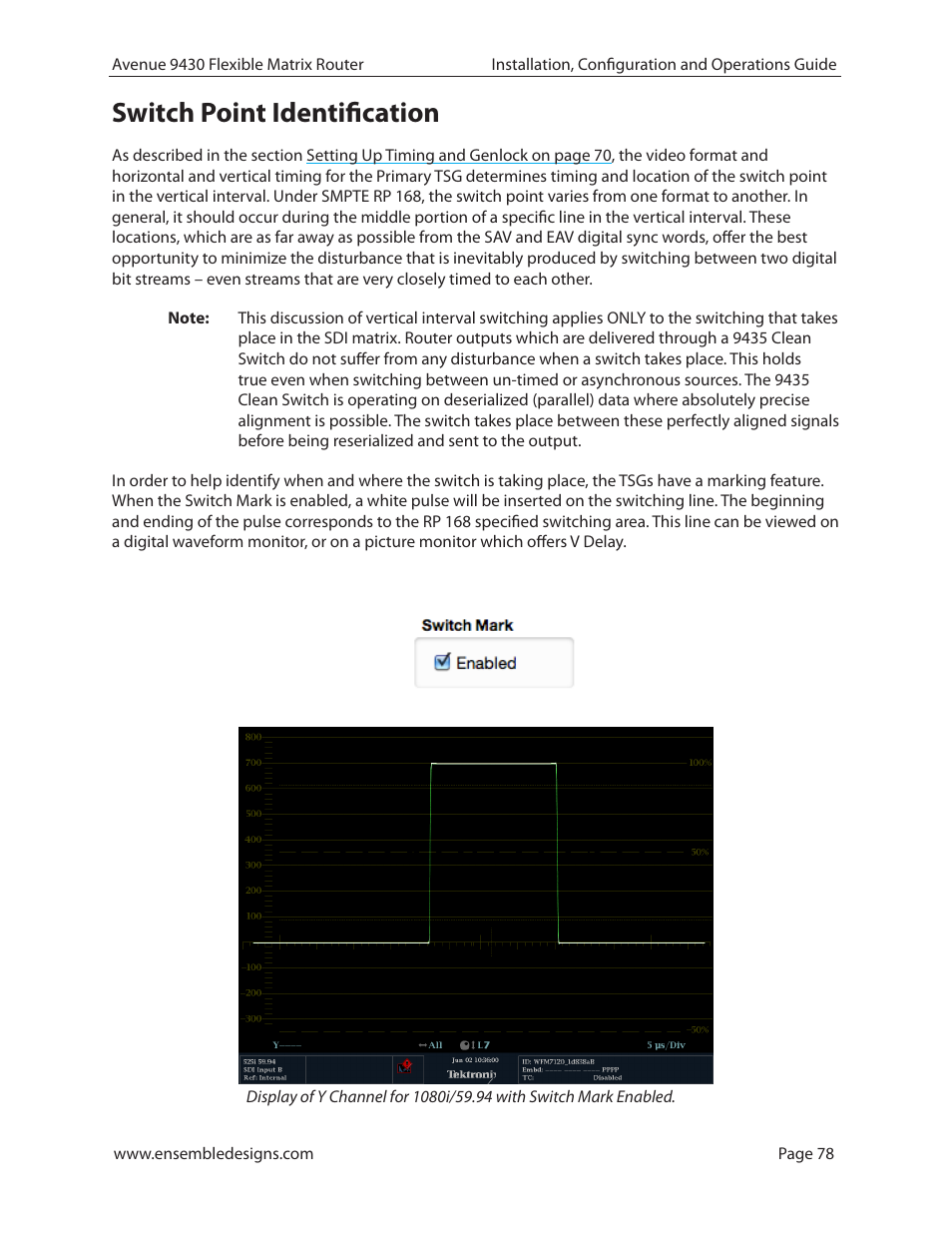

Page 78
