Router control connections, Rs-232 and 100mb ethernet interface adaptor cable – Ensemble Designs 9430 Flexible Matrix Router for 3G / HD / SD / ASI User Manual

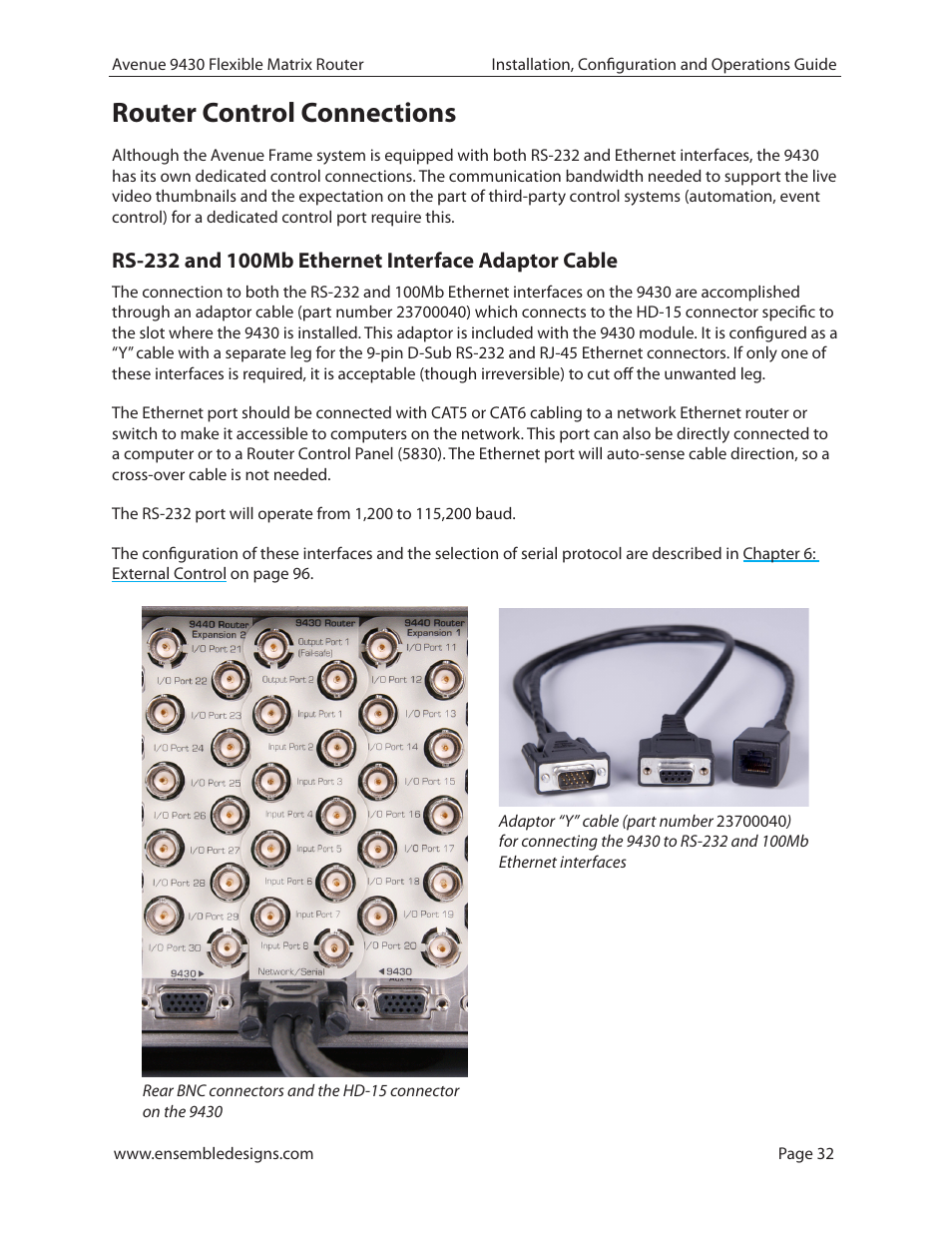

Page 32
