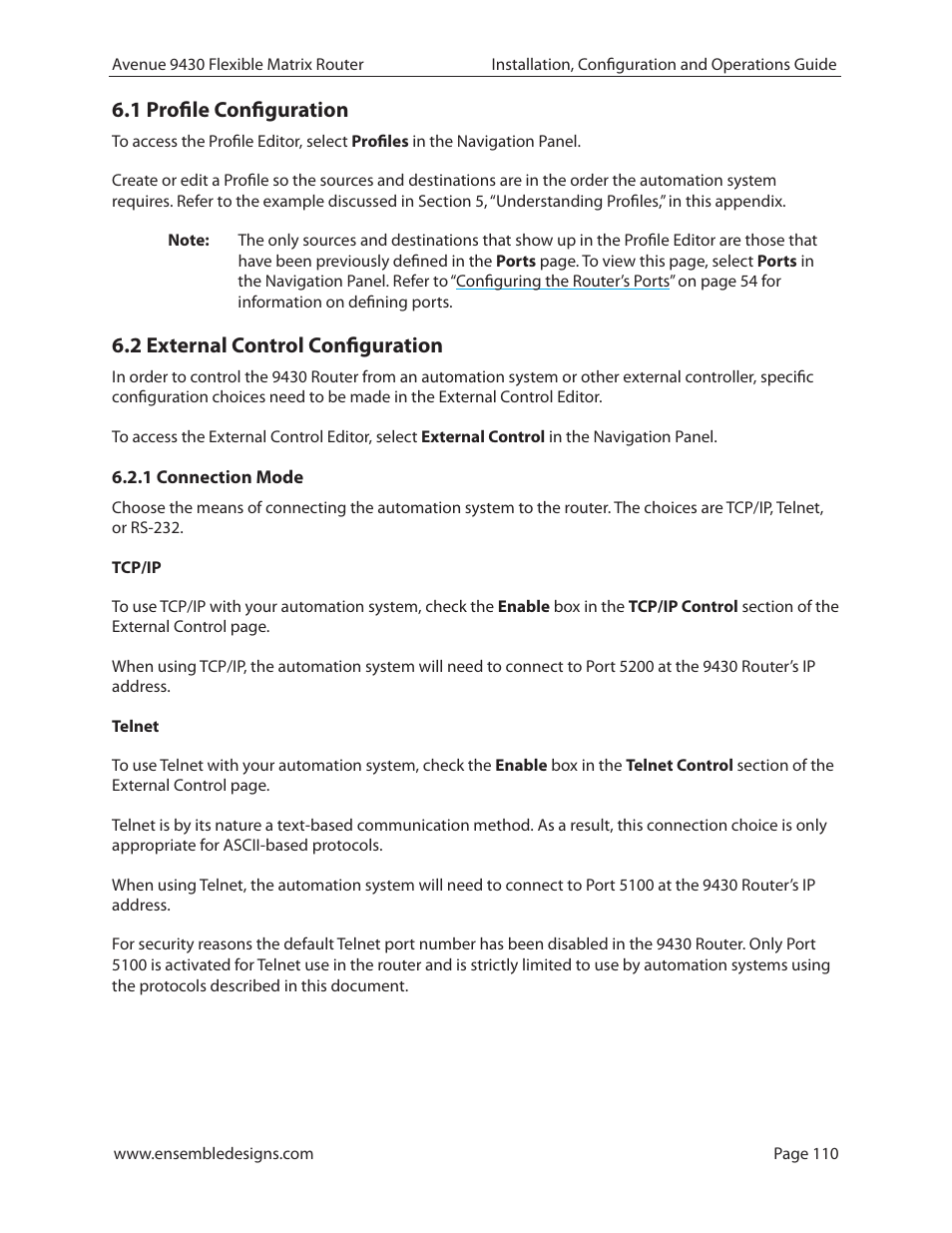

1 profile configuration, 2 external control configuration, 1 connection mode – Ensemble Designs 9430 Flexible Matrix Router for 3G / HD / SD / ASI User Manual
Page 110
