automatically, due the output current protect mechanism activated (
0.686A
current limite
). To avoid this issue, we suggest adjust the power supply output to
52V
adopted adjust resistor
for

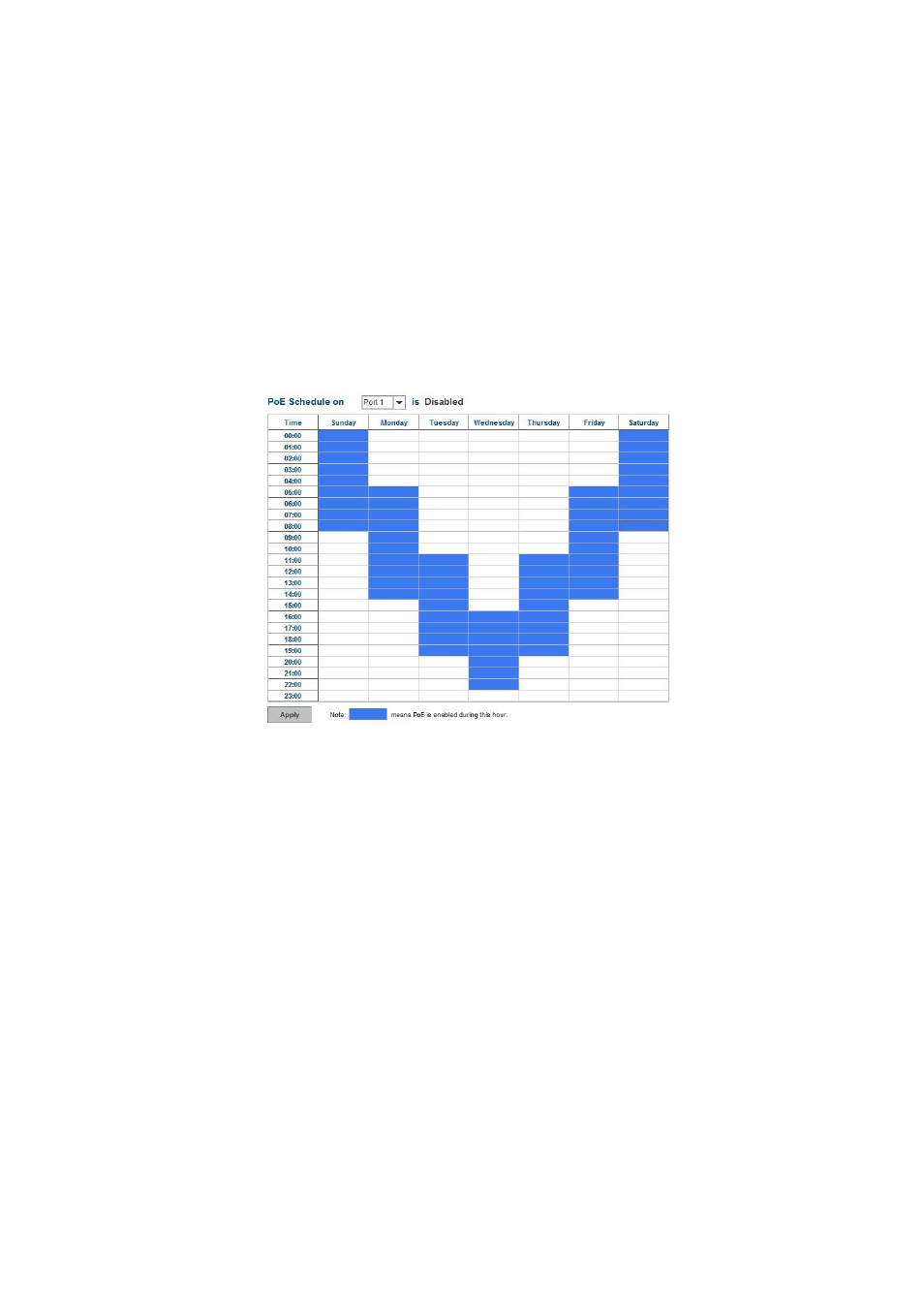

4.4.2 PoE Scheduling
PoE Scheduling control is a powerful function to help you save power and
lly
The Power over Ethernet schedule supports hourly and weekly base PoE schedule
configuration.
Selecte the target port and marking the time frame, then click Apply to activate
the PoE scheduling function. The PoE port will working as the predefined behavior
and follows the system clock. As this result, be sure the system clock have
configured as your local time for the reference of scheduling control.
4.4.3 PoE Status
The PoE Status page shows the system PoE status and the operating status of
each PoE Port. The information includes PoE mode, Operation status, and PD class,
ower Consumption, Voltage and Current. For system information, it includes the
of system power and event.
DC or higher. In usually, the Switching power supply
voltage fine tune.
The
money. You need to configure PoE Scheduling and select a target port manua
to enable this function.
P
setting of system power budget, PoE system output power, setting of warning
level, utilization
