PoE Mode:Enable/Diable port’s PoE function.
Powering Mode: 802.3af, 802.3at(LLDP), 802.3at(2‐event) and forced mode.
Forced mode will ignore the classification behaviors and apply power onto the
RJ‐45, uses the forced mode must be carefully.
Power Budget(W): it allows user assigne the budget control in this field.
Power priority: it supports 3 levels, Critical, High and low. If the system PoE
consumption is over the system budgte control, the PoE system will turn off low
priorty port PoE function, until the consumption is becomes smaller than the
system budget.

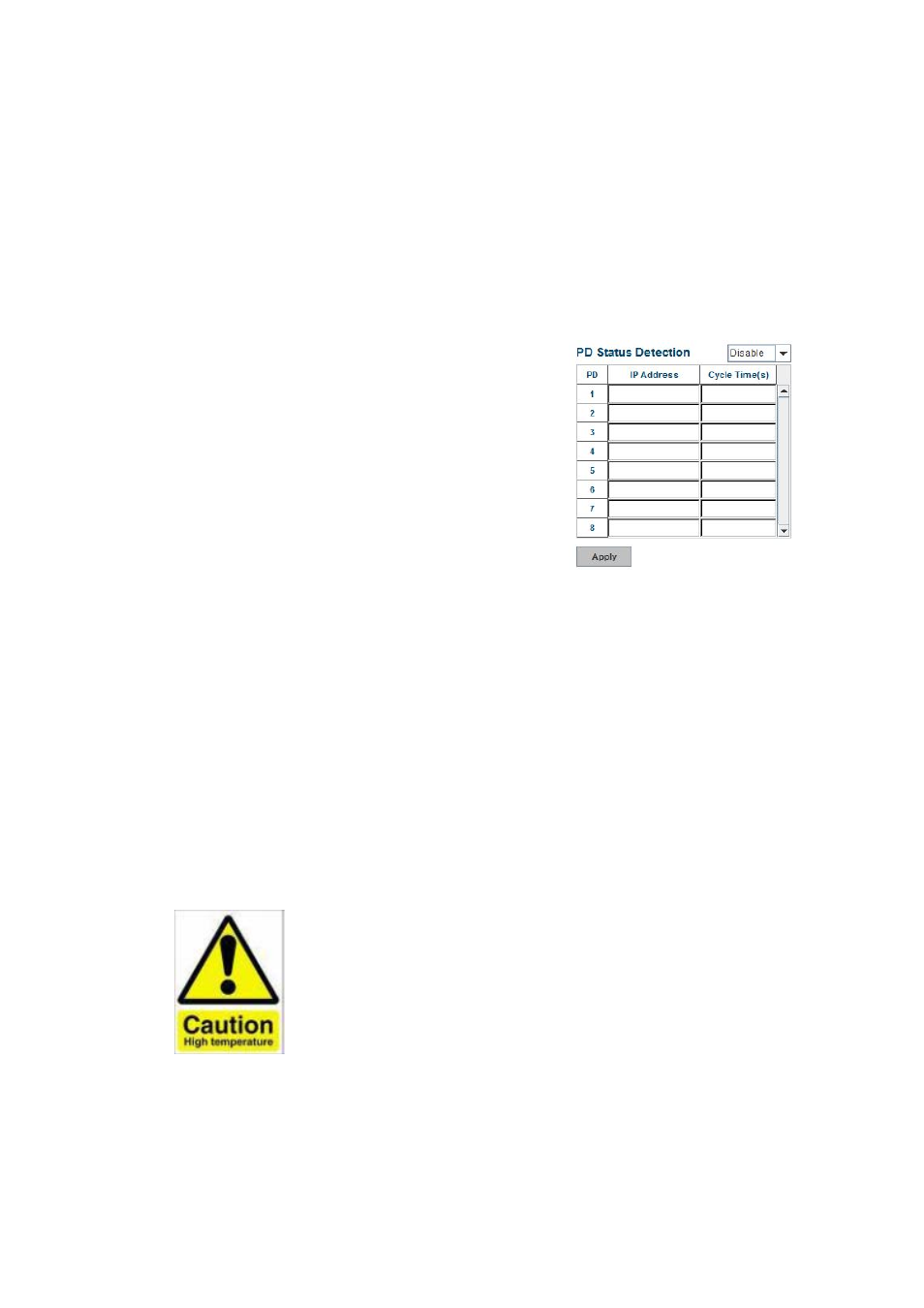

PD Status Detection Diaglogue
The PMI PoE Switch supports an useful function
that help user to mainten the PD’s status and
help use to savng the maintenance time and
money.
IP address: the PD’s ipaddress that installed on
the port.
Cycle time: user measured the PD system boots
duration time. The unit is second. Most of PD system – IP camera will take at
least 40~50 seconds. Here, we suggest user sets the cycle time to 90 seconds
prevents any wrong suppose.
Once user defined this function, the PoE Switch will request PD system and
turn‐off PoE power if PD system does not echo the request. After the duration
time (cycle time), the PoE switch will start request PD again. This function also
named link partner line detection (LPLD).
Note: During the PoE operating, the surface will accumulate heat and caused
surface temperature becomes higher than ambient temperature. Do remember
don’t touch device surface during PoE operating.
Note: To enable the IEEE 802.3at High Power PoE function, the power input
voltage should be DC 52~57V to obtain better performance. Applies DC 48V to
PoE Switch and perform 30W high power output may cause the PoE disable
DO NOT TOUCH DEVICE SURFACE DURING
PoE PROGRESS HIGH POWER FEEDING
