Panel Layout

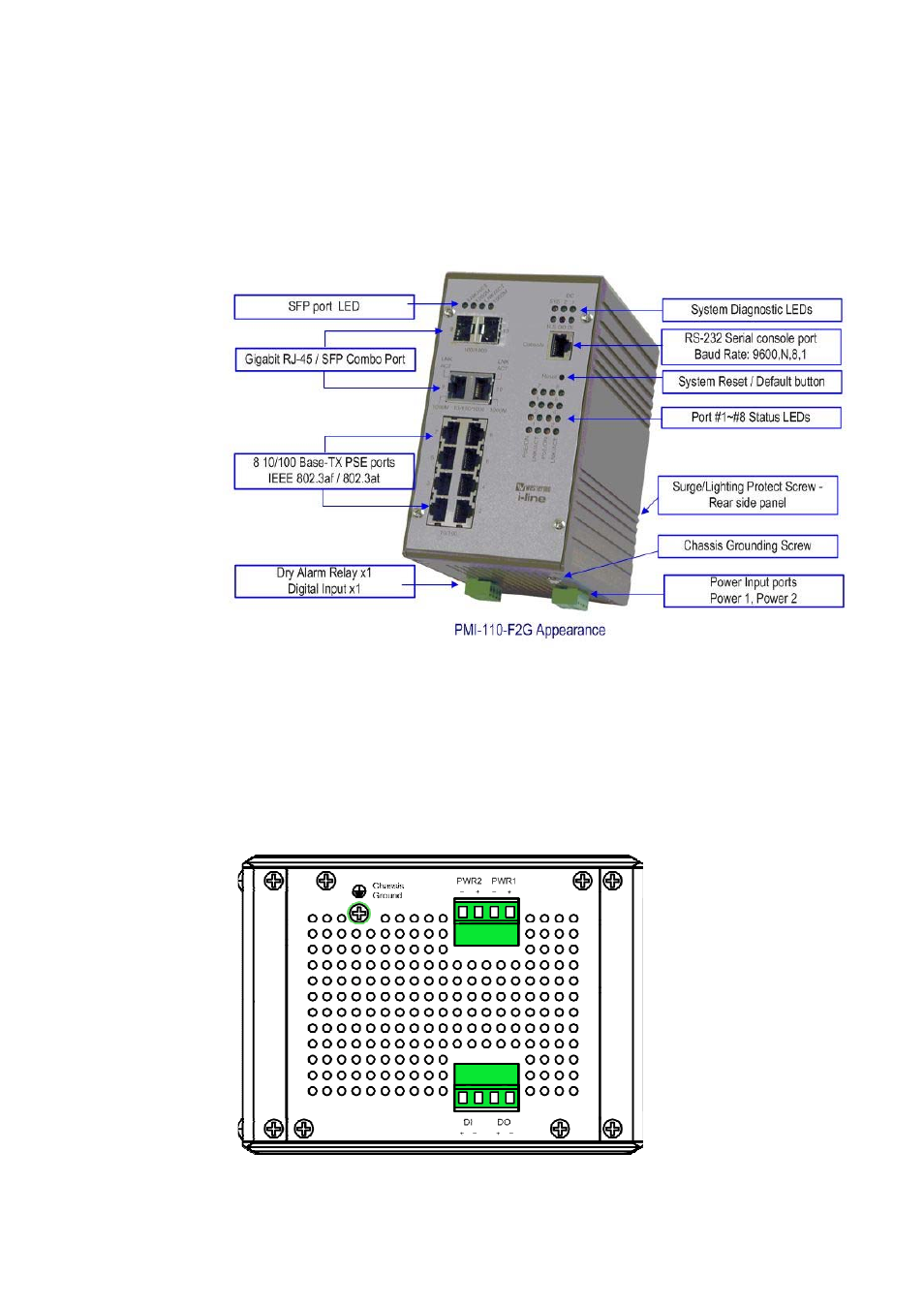

The front panel includes 8 x 10/100Mbps RJ‐45 PoE ports, 2 x Gigabit Ethernet
RJ‐45/SFP socket ports, 1 RJ‐45 for RS232 console, System diagnostic LEDs, Port
LEDs, PoE status LEDs.
Bottom view
The bottom side includes 2 4‐pin terminal block connectors and 1 chassis grounding
screw. One of 4‐pin terminal block connectors is for power inputs, and the rest is
for alarm relay output and digital input.
