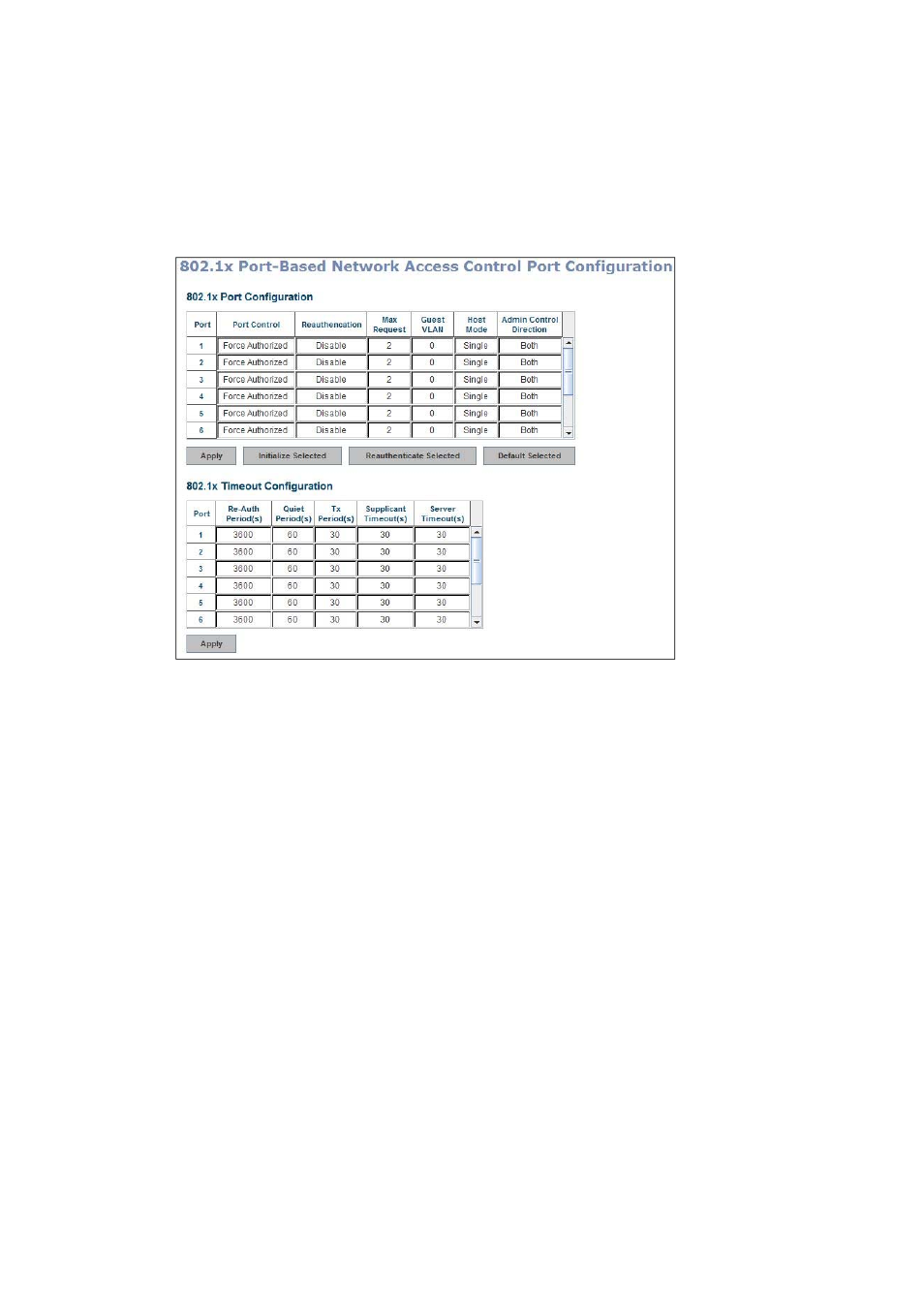

4.11.3.2 802.1x Port Configuration
After the configuration of Radius Server or Local user list, user also need
configure the authentication mode, authentication behavior, applied VLAN for
each port and permitted communication. The following information will explain
the port configuration.
Port control: Force Authorized means this port is authorized; the data is free to
in/out. Force unauthorized just opposite, the port is blocked. If users want to
control this port with Radius Server, please select Auto for port control.
Reauthentication: If enable this field, switch will ask client to re‐authenticate.
The default time interval is 3600 seconds.
Max Request: the maximum times that the switch allow client request.
Guest VLAN: 0 to 4094 is available for this field. If this field is set to 0, that means
the port is blocked after authentication fail. Otherwise, the port will be set to
Guest VLAN.
Host Mode: if there are more than one device connected to this port, set the
Host Mode to single means only the first PC authenticate success can access this
port. If this port is set to multi, all the device can access this port once any one of
them pass the authentication.
Control Direction: determined devices can end data out only or both send and
receive.
Re‐Auth Period: control the Re‐authentication time interval, 1~65535 is available.
Quiet Period: When authentication failed, Switch will wait for a period and try to
communicate with radius server again.
