1.4 Controller System Configuration
1.4.1 Internal Circuits of the Controller (Typical configuration)

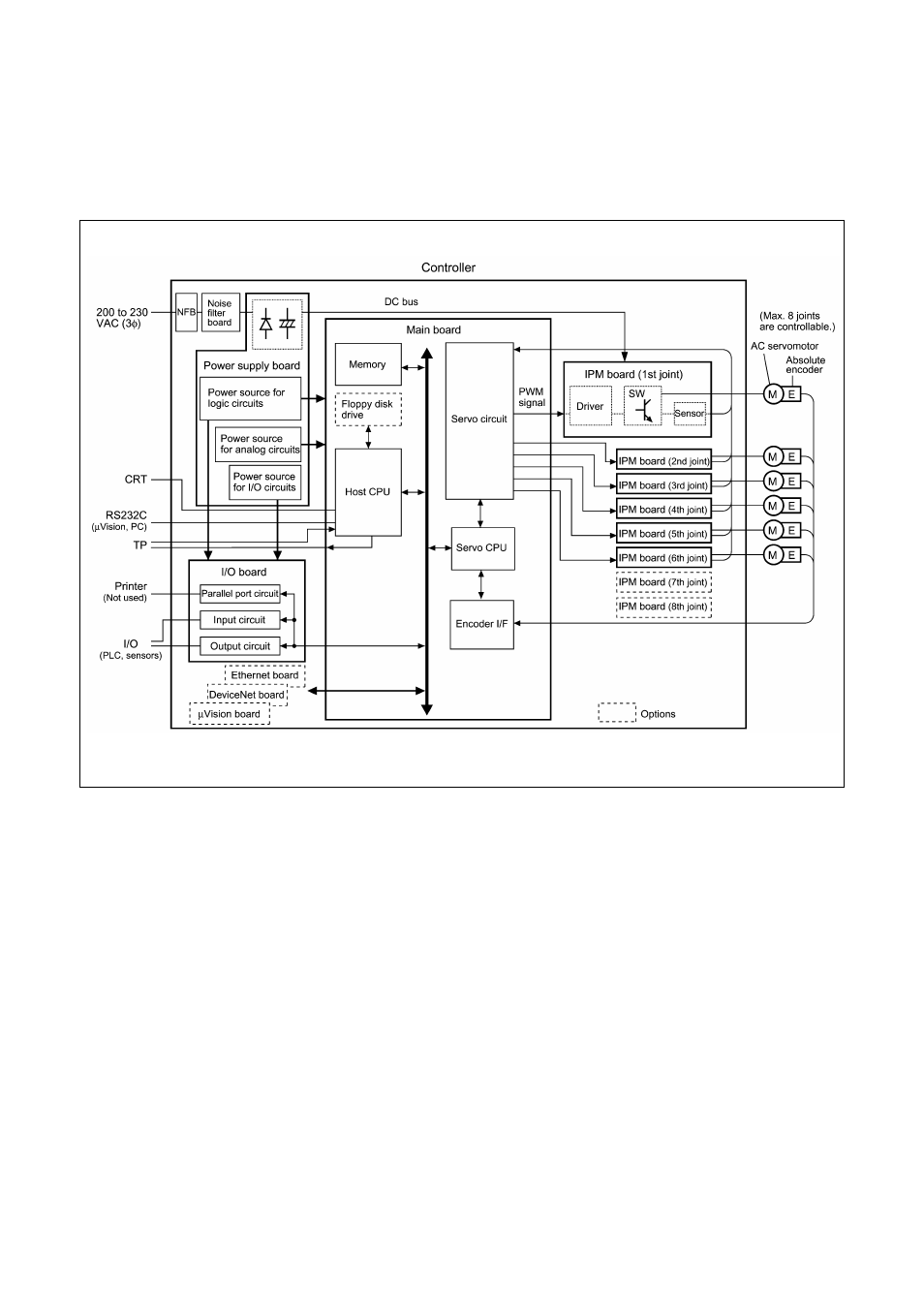

The block diagram below shows the internal circuits of an RC5 controller designed for
a 6-joint robot.
