MBT-5000 L-Band Up/Down Converter System MN-MBT5000
Rear Panel Connections Revision 4
3–6

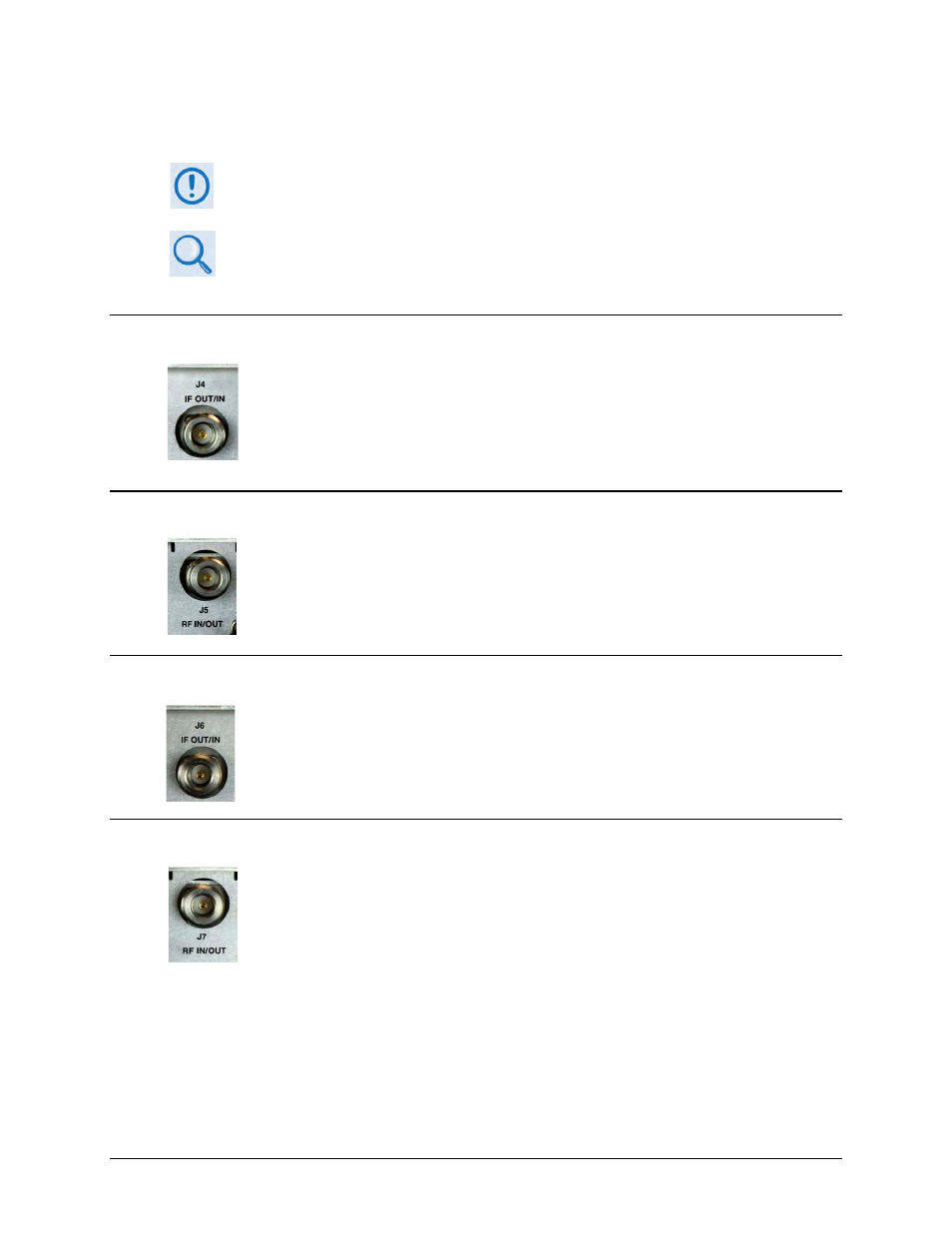

3.2.1 IF Connector Group
These connectors are integral components of the BUC/BDC modules installed in the
MBT-5000 chassis Side A and Side B module bays.
Appendix A. BUC-5000x/BDC-5000x MODULE REMOVAL/INSTALLATION
3.2.1.1 ‘J4 | IF OUT/IN’ (Side B) Connector (Type ‘N’ Female)
This connector is a Type 'N' female connector that provides either an L-Band input
signal interface (with the BUC-5000 Block Upconverter installed), or an L-Band
output signal interface (with the BDC-5000 Block Downconverter installed).
3.2.1.2 ‘J5 | RF IN/OUT’ (Side B) Connector (Type ‘N’ Female)
This connector is a Type 'N' female connector that provides either an upconverted
RF output signal (with the BUC-5000 Block Upconverter installed), or a
downconverted RF input signal (with the BDC-5000 Block Downconverter installed).
3.2.1.3 ‘J6 | IF OUT/IN’ (Side A) Connector (Type ‘N’ Female)
This connector is a Type 'N' female connector that provides either an L-Band input
signal interface (with the BUC-5000 Block Upconverter installed), or an L-Band
output signal interface (with the BDC-5000 Block Downconverter installed).
3.2.1.4 ‘J7 | RF IN/OUT’ (Side A) Connector (Type ‘N’ Female)
This connector is a Type 'N' female connector that provides either an upconverted
RF output signal (with the BUC-5000 Block Upconverter installed), or a
downconverted RF input signal (with the BDC-5000 Block Downconverter installed).
