Advanced Operation
ZONE3 playback

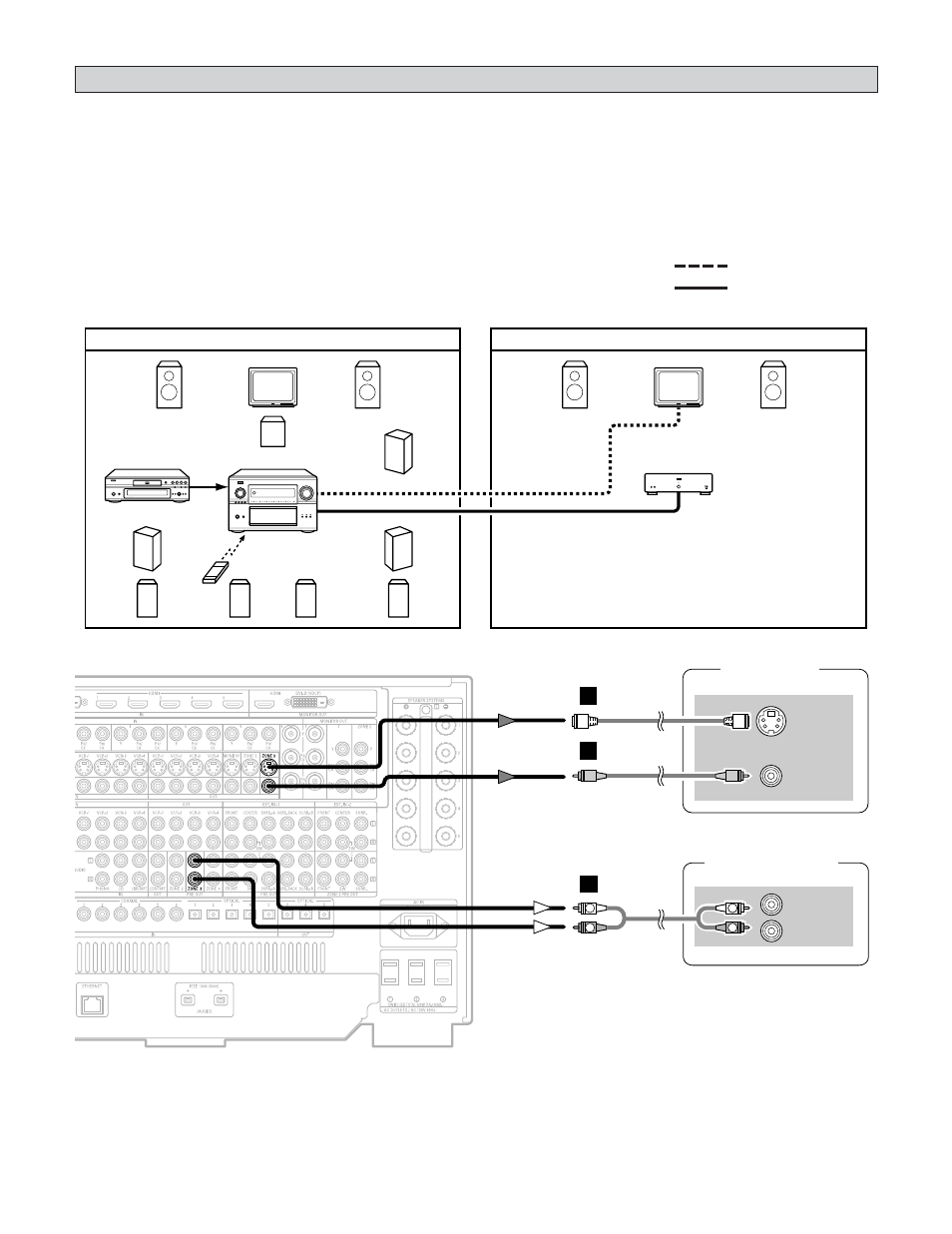

• The AVR-5805CI is equipped with pre-out terminals for which the volume is adjustable and video output terminals (composite
and S-Video) as the ZONE3 output terminals.
• When using a monitor in ZONE3, the input device’s cable type must be the same as the type of cable connected to the AVR-
5805CI’s ZONE3 monitor output terminal (video or S-Video).
AVR-5805CI DVD player
Input
Monitor
MAIN ZONE 9.1-channel system
ZONE3 AUDIO OUT
(VARIABLE OUT)
ZONE3
VIDEO OUT
SYSTEM REMOTE
CONTROL UNIT RC-1036
Power amplifier
Monitor
ZONE3 STEREO/MONO system
C
FL FR
SL
A
SW
SR
A
FL FR
B
SB
R
SR
B
SB
L
SL
B
MULTI SOURCE AUDIO signal cable
ZONE3 VIDEO signal cable
2 ZONE3 STEREO/MONO system
• Stereo and monaural sound can be enjoyed in ZONE3. (By default, “STEREO” is selected.)
• When only one speaker is being used in ZONE3, select “MONO” for the ZONE3 channel setting at “Channel Setup” in the
System Setup Menu.
