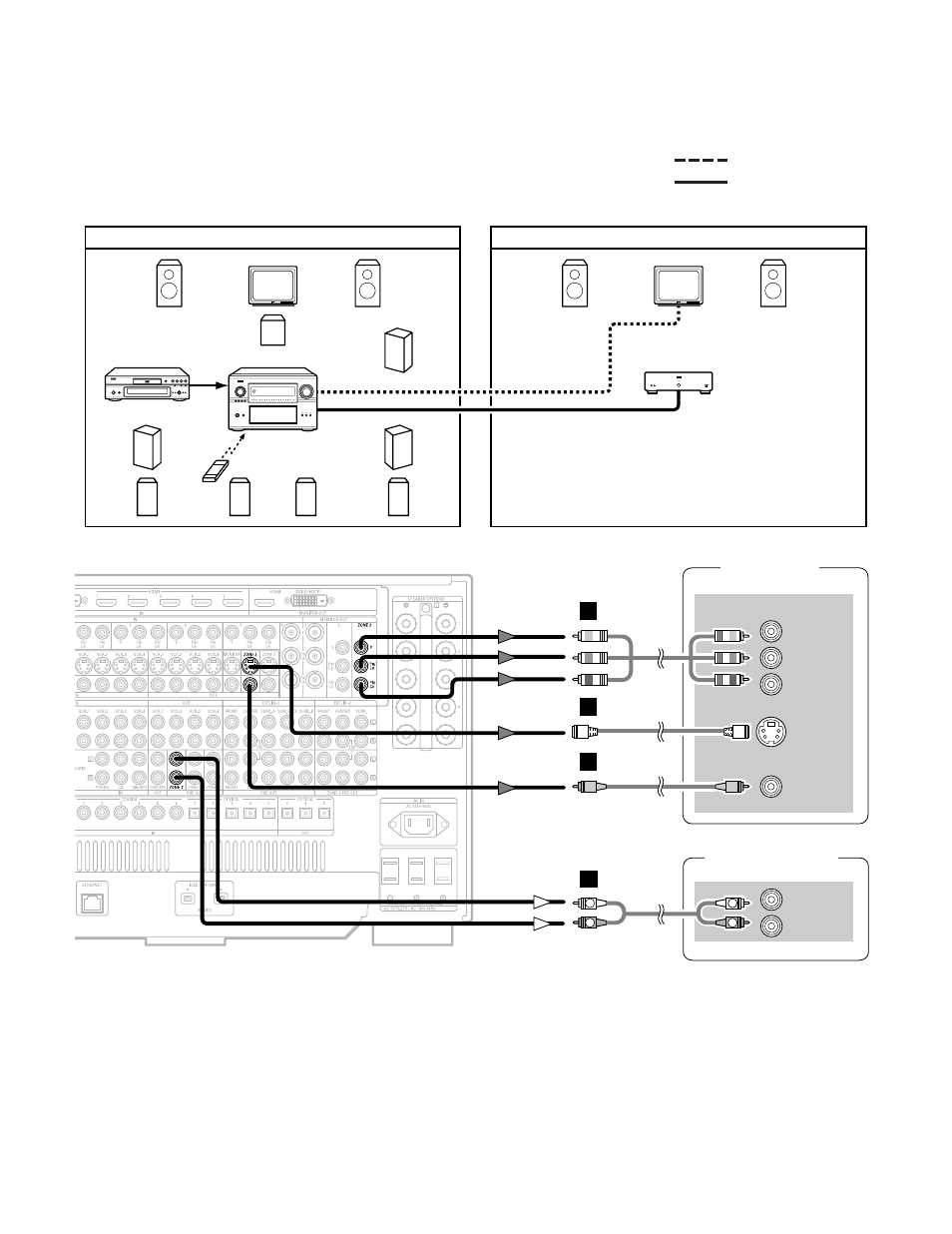

Advanced Operation
AVR-5805CI DVD player
Input
Monitor
MAIN ZONE 9.1-channel system
ZONE2 AUDIO OUT
(VARIABLE OUT)
ZONE2
VIDEO OUT
SYSTEM REMOTE
CONTROL UNIT RC-1036
Power amplifier
Monitor
ZONE2 STEREO/MONO system
C
FL FR
SL
A
SW
SR
A
FL FR
B
SB
R
SR
B
SB
L
SL
B
MULTI SOURCE AUDIO signal cable
ZONE2 VIDEO signal cable
2 ZONE2 STEREO/MONO system
• When two speakers are being used in ZONE2, select “STEREO” for the ZONE2 channel setting at “Channel Setup” in the
System Setup Menu. Stereo sound can be enjoyed in ZONE2.
• When only one speaker is being used in ZONE2, select “MONO” for the ZONE2 channel setting at “Channel Setup” in the
System Setup Menu. In this case, monaural sound can be enjoyed in ZONE2.
