47
Basic Operation
Press the ANALOG button on the main unit or
INPUT MODE button on the remote control unit to
switch to the analog input.
2 Selecting the analog mode
ANALOG (exclusive analog audio signal playback mode):
The signals input to the analog input terminals are
decoded and played.
NOTE:
• Input mode when playing DTS sources:
Noise will be output if DTS-compatible CDs or LDs are
played in the “ANALOG” or “PCM” mode.
When playing DTS-compatible sources, be sure to
connect the source component to the digital input
terminals (OPTICAL/COAXIAL) and set the input mode to
“DTS”.
NOTE:
• When the input mode is set to EXT. IN (1 or 2), playback
in the DIRECT, STEREO, STANDARD (DOLBY/DTS
SURROUND), HOME THX CINEMA, 9CH STEREO and
DSP SIMULATION modes are only possible when “DSP”
mode is selected for the “Setting the EXT.IN Setup”
(
page 105).
• In play modes other than the external input mode, the
signals connected to these terminals cannot be played. In
addition, signals cannot be output from channels not
connected to the input terminals.
EXT.IN -2 EXT.IN -1
• Cancelling the external input mode:
Press the INPUT MODE or ANALOG button to switch to the
desired input mode.
• The external input mode can be set for any input source. To
watch video while listening to sound, select the input source
to which the video signal is connected, then set this mode.
• If the subwoofer output level seems too high, set the “SW
ATT” surround parameter to “ON”.
2 Selecting the EXT. IN mode
EXT. IN-1:
Once this is selected, the input signals connected to
the FRONT L, FRONT R, CENTER, SURR. L A/B
(surround left A/B), SURR. R A/B (surround right A/B)
SBL (surround back left) and SBR (surround back right)
channels of the EXT. IN terminals are output directly to
the front (left and right), center, surround A/B (left and
right A/B) and surround back (left and right) speaker
systems as well as the pre-out terminals.
In addition, the signal input to the SW (subwoofer)
terminal is output to the PRE OUT SW (subwoofer)
terminal.
EXT. IN-2:
Once this is selected, the input signals connected to
the FRONT L, FRONT R, CENTER, SURR. L (surround
left) and SURR. R (surround right) channels of the EXT.
IN terminals are output directly to the front (left and
right), center and surround (left and right) speaker
systems as well as the pre-out terminals.
In addition, the signal input to the SW (subwoofer)
terminal is output to the PRE OUT SW (subwoofer)
terminal.
Playback using the external input treminals
(EXT.IN-1 and EXT.IN-2)
• When the “ANALOG” mode is selected at “EXT.IN Setup”
at the System Setup:
The surround mode buttons are not operated.
• When the “DSP” mode is selected at “EXT.IN Setup” at
the System Setup:
The surround mode buttons are operated.
2 CH:
Select when the input source being played is a 2
channel source.
MULTI CH:
Select when the input source being played is a
multi-channel source.
Press the EXT. IN button on the main unit or
INPUT MODE button on the remote control unit
to switch the external input.
When operating the main unit:

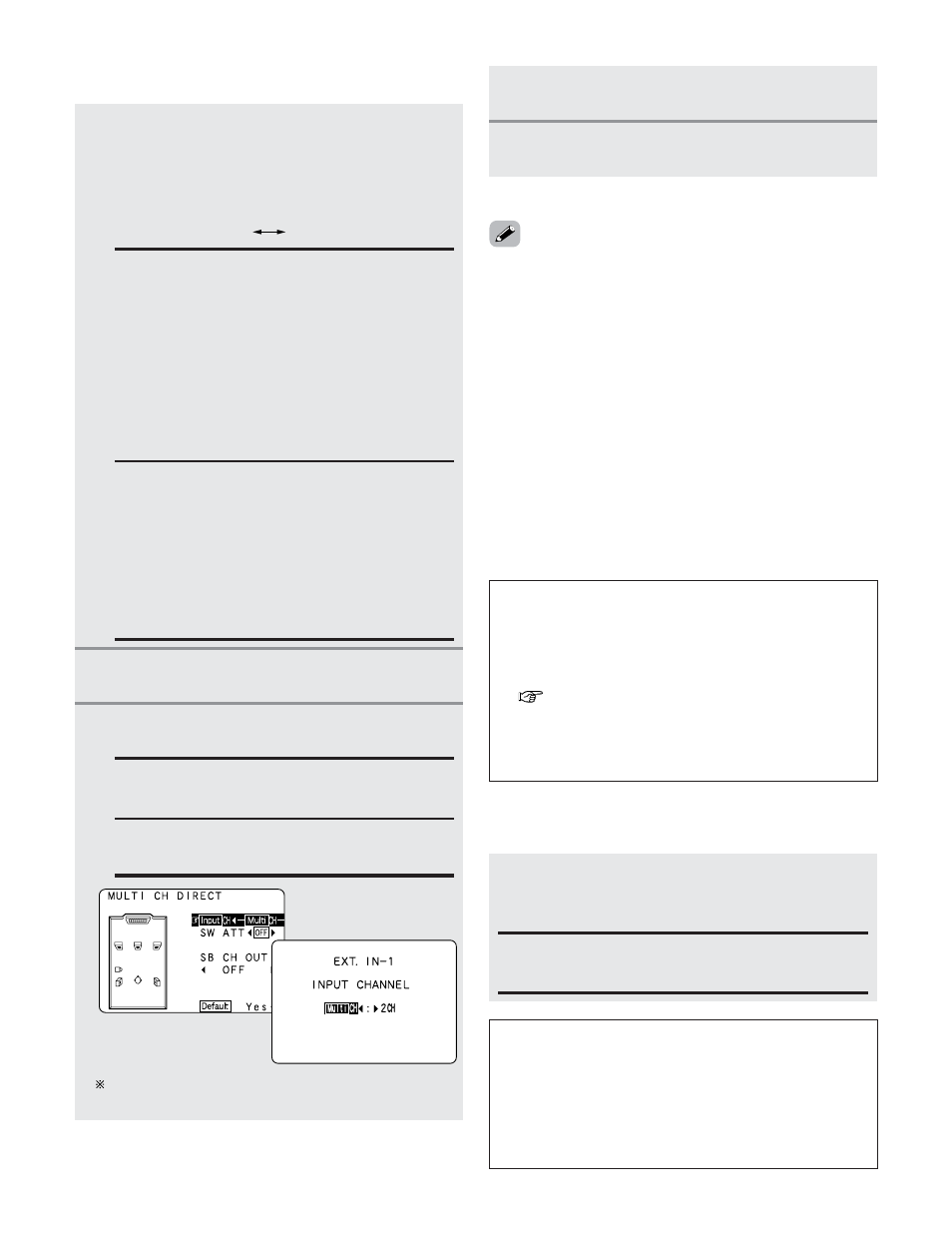

2 Press the SURROUND PARAMETER button.
• The surround parameter menu appears.
1
3 Press the CURSOR D D or H H button to select the
parameter.
4 Press the CURSOR F F or G G button to select the
setting.
5 Press the SURROUND PARAMETER button to
complete the setting.
Press the CURSOR F F button to set the “Input channel”.
Press the ENTER button to return to the previous screen.
