37
Connecting Other Sources

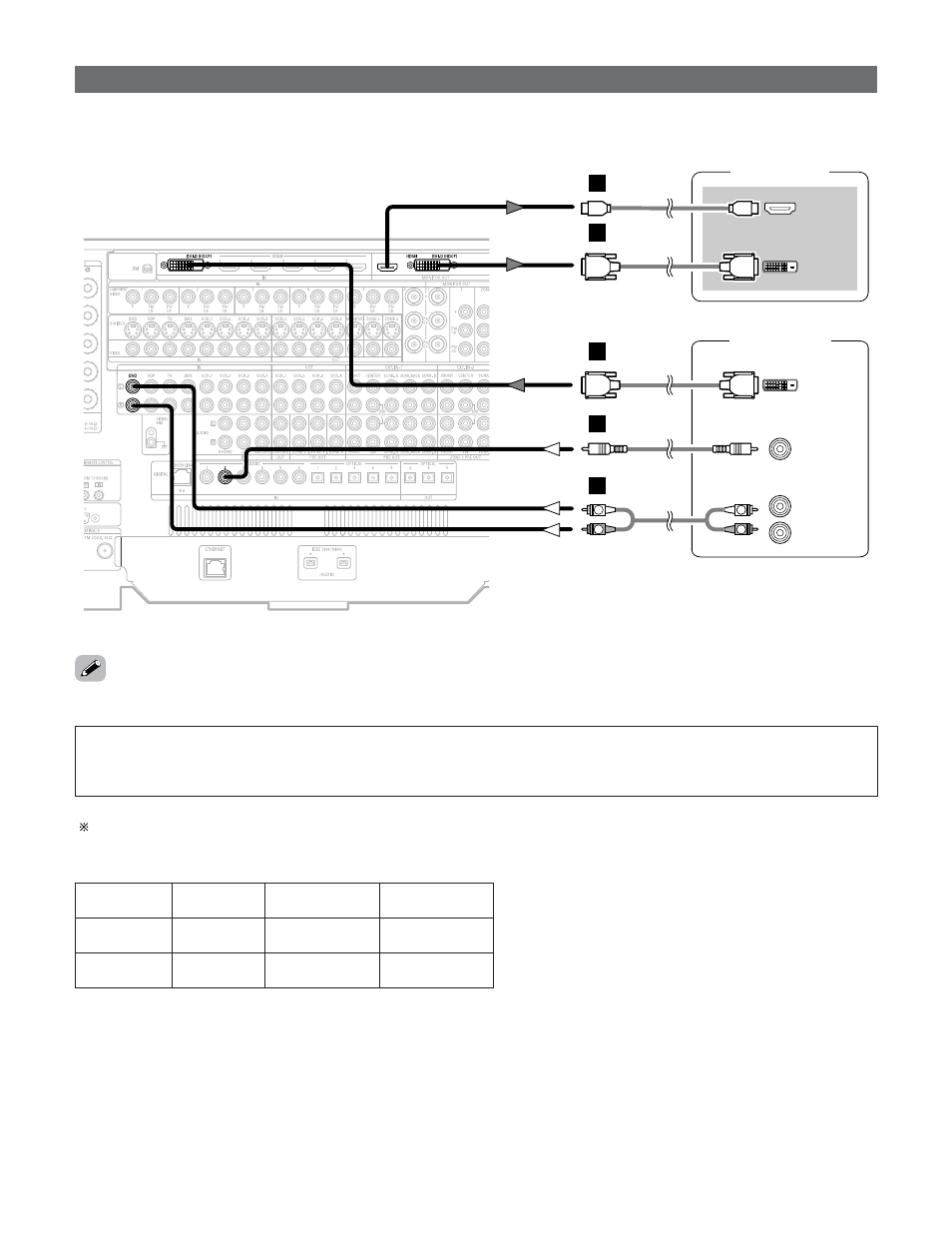

Connecting equipment with DVI-D terminals
DVD player
TV (Monitor)
HDMI
IN
DVI-D
OUT
DVI-D
IN
COAXIAL
OUT
L
M
L
C
R
L
AUDIO OUT
R
L
R
L
A
or
• Connection with equipment that has a DVI-D (Digital Visual Interface)-D terminal permits the transfer of digital images. Make an
analog or digital audio connection also.
• The HDMI and DVI-D monitor output connectors on the AVR-5805CI can only be used one at a time, not simultaneously.
NOTE:
• Commercially-available DVI-D cables are available in 24-pin and 29-pin types. The AVR-5805CI supports the 24-pin DVI-D cable.
• The AVR-5805CI supports HDCP. Use an HDCP-compatible HDMI monitor.
• When connecting via a DVI-D cable, no digital audio will be output from the HDMI monitor out terminal.
Note on connecting a HDMI/DVI-D
The table below indicates the compatibility of connections between the HDMI/DVI-D output terminal of the AVR-5805CI and
monitors that support HDMI/DVI-D.
E
E
HDMI output
terminal
Monitor with
HDMI
C
(Video / Audio)
C
(Only Video)
DVI-D output
terminal
Monitor with DVI-D
(HDCP compatible)
C
(Only Video)
C
(Only Video)
Monitor with DVI-D
(HDCP incompatible)
