Connecting Other Sources

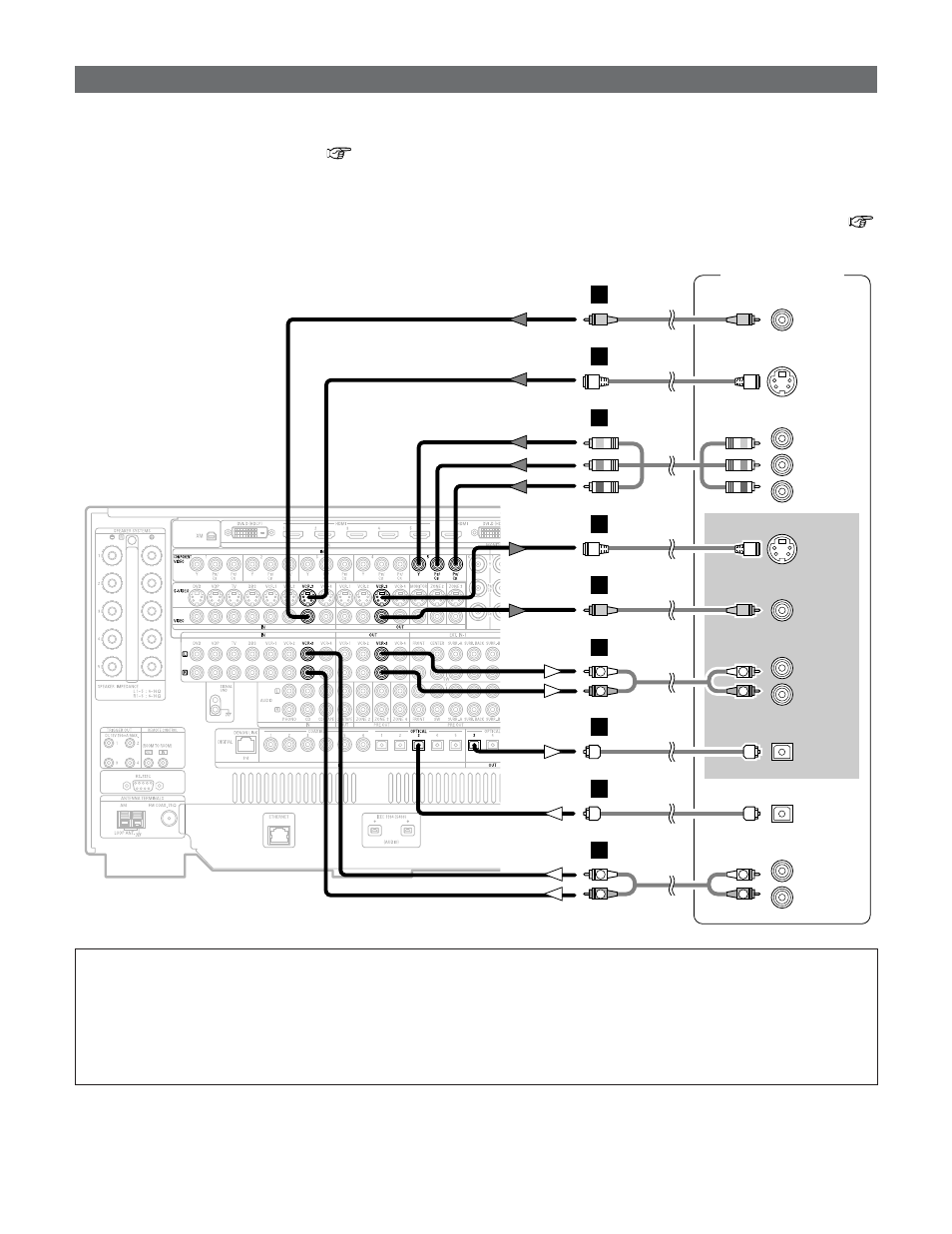

Connecting a DVD recorder
DVD recorder
S VIDEO
OUT
S VIDEO
IN
R
L
AUDIO IN
R
L
AUDIO OUT
VIDEO
OUT
VIDEO
IN
OPTICAL
IN
OPTICAL
OUT
R
L
R
L
H
H
I
I
A
R
L
R
L
A
D
D
COMPONENT VIDEO OUT
Y
P B
P R
J
• For best picture quality choose the component video connection to your DVD recorder. S-Video and composite video outputs
are also provided. If you choose to use the component video or BNC connection, it needs to be assign. For more information
about Component Input Assignment (
page 112).
• If you wish to perform analog dubbing from a digital sources, such as a DVD recorder to an analog recorder such as a cassette
deck, you will needs connect analog inputs and outputs as shown below, in addition to the digital audio connections.
• To connect the digital audio output from the DVD recorder, you can choose from either the coaxial or the optical connections.
If you choose to use the coaxial connection, it needs to be assigned. For more information about Digital Input Assignment (
page 104).
NOTE:
• When recording to DVD recorder, it is necessary that the type of cable used with the playback source equipment be the
same type that is connected to the AVR-5805CI VCR-1 (to 4) OUT terminal.
Example:
TV IN → S-Video cable : VCR-1 to 4 OUT→ S-Video cable
TV IN → Video cable : VCR-1 to 4 OUT→ Video cable
• Do not connect the output of the component connected to the OPTICAL 3 (to 5) OUT terminal on the AVR-5805CI’s rear
panel to any terminal other than the OPTICAL 3 (to 5) IN terminal.
