Denon AVR-5805CI - Manual (Page 33)

33

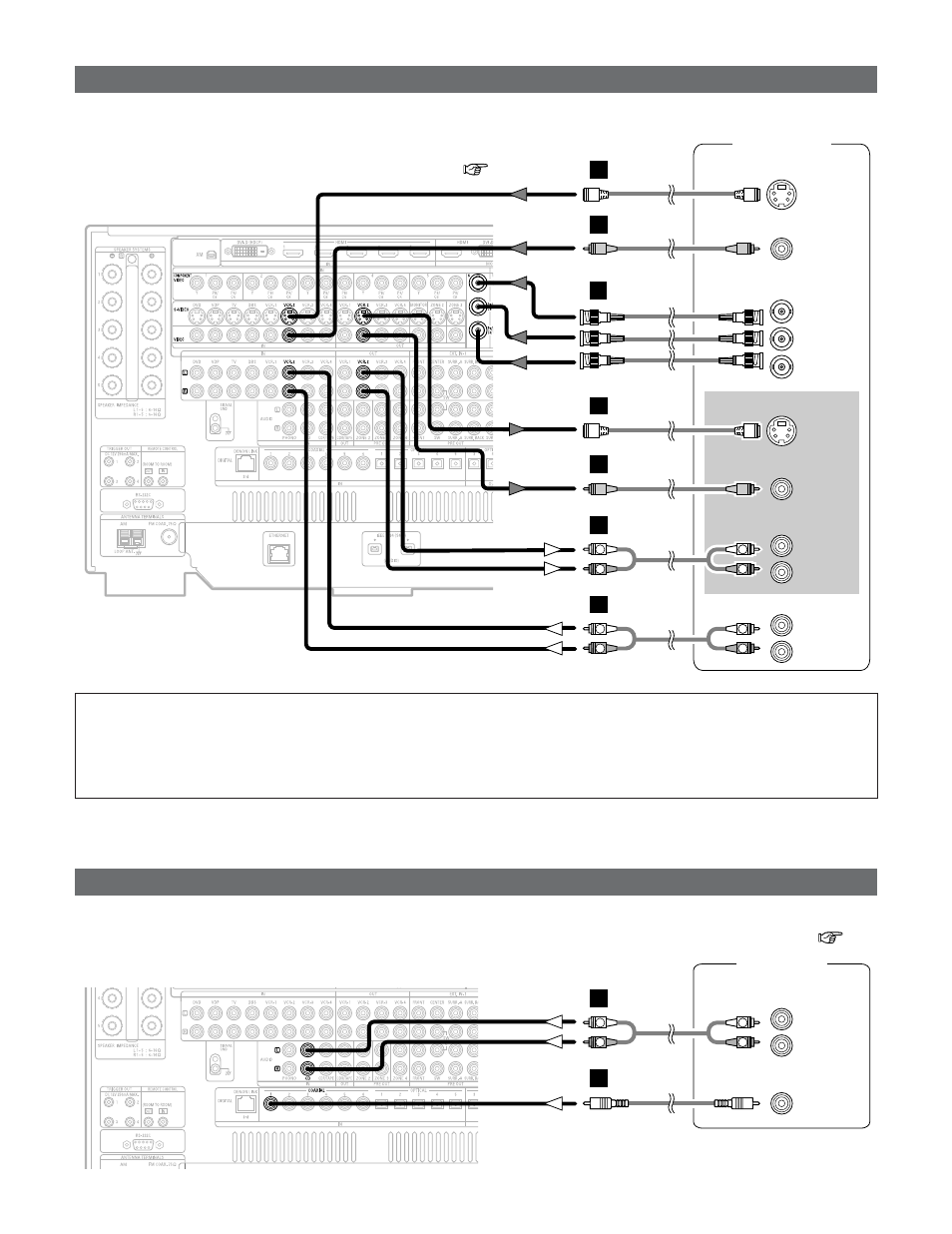

Connecting Other Sources
Connecting a CD player
R
L
AUDIO OUT
CD player
COAXIAL
OUT
R
L
R
L
A
C
Connecting a VCR
Video deck
S VIDEO
IN
R
L
AUDIO IN
R
L
AUDIO OUT
VIDEO
IN
S VIDEO
OUT
VIDEO
OUT
COMPONENT VIDEO OUT
Y
P B
P R
R
L
R
L
H
I
H
I
A
R
L
R
L
A
K
• There are three sets of video deck (VCR) terminals, so three video decks can be connected for simultaneous recording or video
copying.
• If you choose to use the component video connection, it needs to be assign.
For more information about Component Input Assignment ( page 112).
• To connect the digital audio output from the CD player, you can choose from either the coaxial or optical connections. If you
choose to use the optical connection, it needs to be assigned. For more information about Digital Input Assignment ( page
104).
NOTE:
• When recording to VCR, it is necessary that the type of cable used with the playback source equipment be the same type
that is connected to the AVR-5805CI VCR-1 (to 4) OUT terminal.
Example:
VCR-1 IN → S-Video cable : VCR-2 OUT→ S-Video cable
VCR-2 IN → Video cable : VCR-1 OUT→ Video cable
