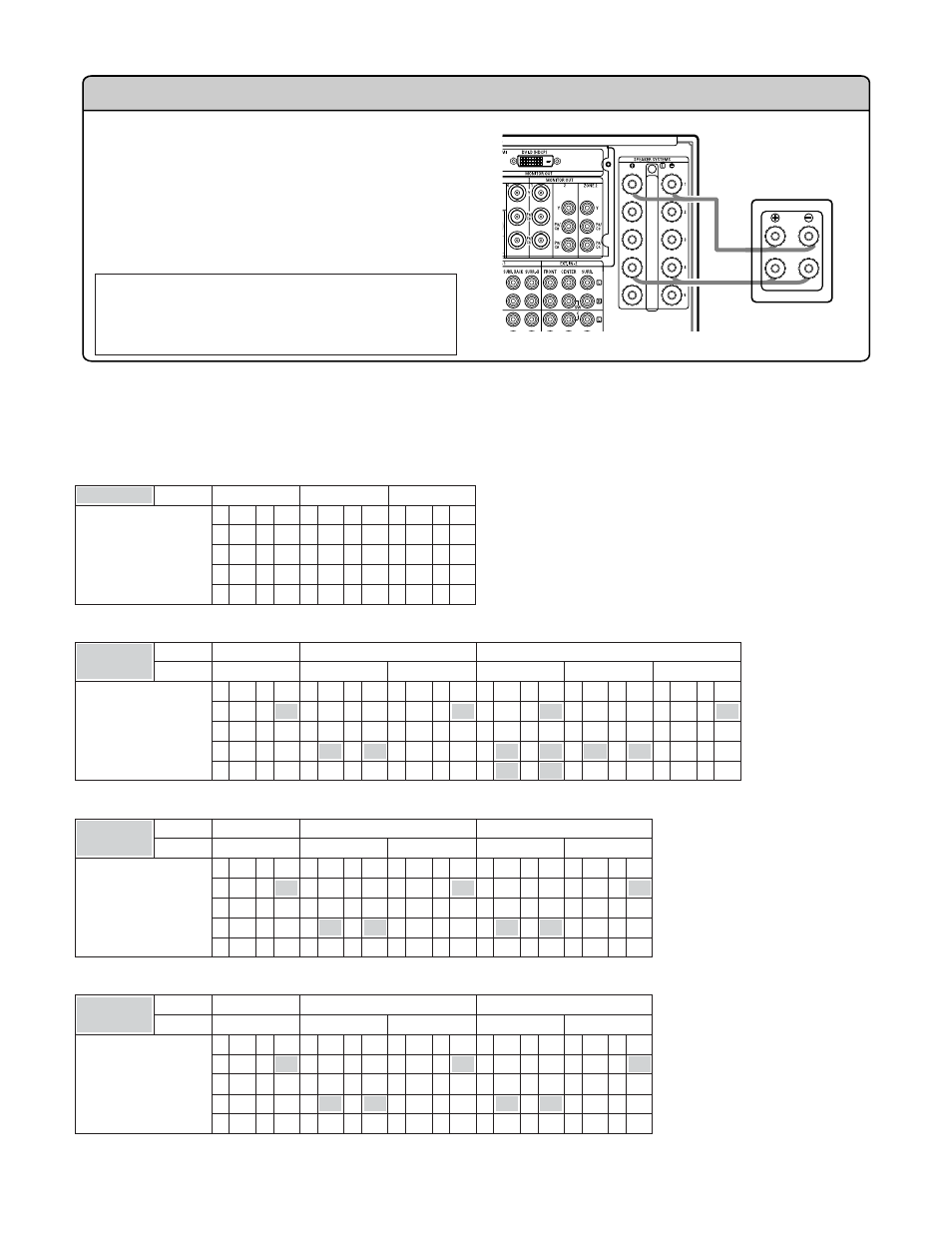

Advanced Setup – Part 1
Bi-Amp connections
Certain loudspeakers are equipped with two sets of input
terminals, for bi-amplification. The AVR-5805CI Amp
Assign mode allows you to power bi-amp-capable
speakers with two amplifier channels, up to a total of 5 bi-
amplified speakers in a system using all 10 of the AVR-
5805CI amplifier channels. Be sure to consult the
operating instructions of your bi-amp-capable speakers for
further information before proceeding.
AVR-5805CI
SPEAKER
NOTE:
• When making bi-amp connections, be sure to
remove the short-circuiting bar included with the
speaker.
2
Table of power amplifier assignment modes with respect to the channel settings for the different zones
and assignment modes
• Amp Assign mode: Normal
Channel Setup /
Power Amp Assign
MAIN ZONE
L1
9.1 CH
FL
R1
FR
L2
C
R2
–
L3 SL A R3 SR A
L4 SL B R4 SR B
L5 SBL R5 SBR
L1
7.1 CH
FL
R1
FR
L2
C
R2
–
L3 SL A R3 SR A
L4
–
R4
–
L5 SBL R5 SBR
L1
5.1 CH
FL
R1
FR
L2
C
R2
–
L3 SL A R3 SR A
L4
–
R4
–
L5
–
R5
–
• Amp Assign mode: +ZONE4
Channel Setup /
Power Amp Assign
MAIN ZONE
9.1 CH
ZONE4
MONO
L1
FL
R1
FR
L2
C
R2 Z4 M
L3 SL A R3 SR A
L4 SL B R4 SR B
L5 SBL R5 SBR
7.1 CH
STEREO
L1
FL
R1
FR
L2
C
R2
–
L3 SL A R3 SR A
L4 Z4 L R4 Z4 R
L5 SBL R5 SBR
MONO
L1
FL
R1
FR
L2
C
R2 Z4 M
L3 SL A R3 SR A
L4
–
R4
–
L5 SBL R5 SBR
5.1 CH
STEREO
L1
FL
R1
FR
L2
C
R2
–
L3 SL A R3 SR A
L4 Z4 L R4 Z4 R
L5
–
R5
–
MONO
L1
FL
R1
FR
L2
C
R2 Z4 M
L3 SL A R3 SR A
L4
–
R4
–
L5
–
R5
–
• Amp Assign mode: +ZONE2
Channel Setup /
Power Amp Assign
MAIN ZONE
9.1 CH
ZONE2
MONO
L1
FL
R1
FR
L2
C
R2 Z2 M
L3 SL A R3 SR A
L4 SL B R4 SR B
L5 SBL R5 SBR
7.1 CH
STEREO
L1
FL
R1
FR
L2
C
R2
–
L3 SL A R3 SR A
L4 Z2 L R4 Z2 R
L5 SBL R5 SBR
MONO
L1
FL
R1
FR
L2
C
R2 Z2 M
L3 SL A R3 SR A
L4
–
R4
–
L5 SBL R5 SBR
5.1 CH
L1
FL
R1
FR
L2
C
R2 Z2 C
L3 SL A R3 SR A
L4 Z2 FL R4 Z2 FR
L5 Z2 SL R5 Z2 SR
5.1 CH
STEREO
L1
FL
R1
FR
L2
C
R2
–
L3 SL A R3 SR A
L4 Z2 L R4 Z2 R
L5
–
R5
–
MONO
L1
FL
R1
FR
L2
C
R2 Z2 M
L3 SL A R3 SR A
L4
–
R4
–
L5
–
R5
–
• Amp Assign mode: +ZONE3
Channel Setup /
Power Amp Assign
MAIN ZONE
9.1 CH
ZONE3
MONO
L1
FL
R1
FR
L2
C
R2 Z3 M
L3 SL A R3 SR A
L4 SL B R4 SR B
L5 SBL R5 SBR
7.1 CH
STEREO
L1
FL
R1
FR
L2
C
R2
–
L3 SL A R3 SR A
L4 Z3 L R4 Z3 R
L5 SBL R5 SBR
MONO
L1
FL
R1
FR
L2
C
R2 Z3 M
L3 SL A R3 SR A
L4
–
R4
–
L5 SBL R5 SBR
5.1 CH
STEREO
L1
FL
R1
FR
L2
C
R2
–
L3 SL A R3 SR A
L4 Z3 L R4 Z3 R
L5
–
R5
–
MONO
L1
FL
R1
FR
L2
C
R2 Z3 M
L3 SL A R3 SR A
L4
–
R4
–
L5
–
R5
–
