Connecting Other Sources

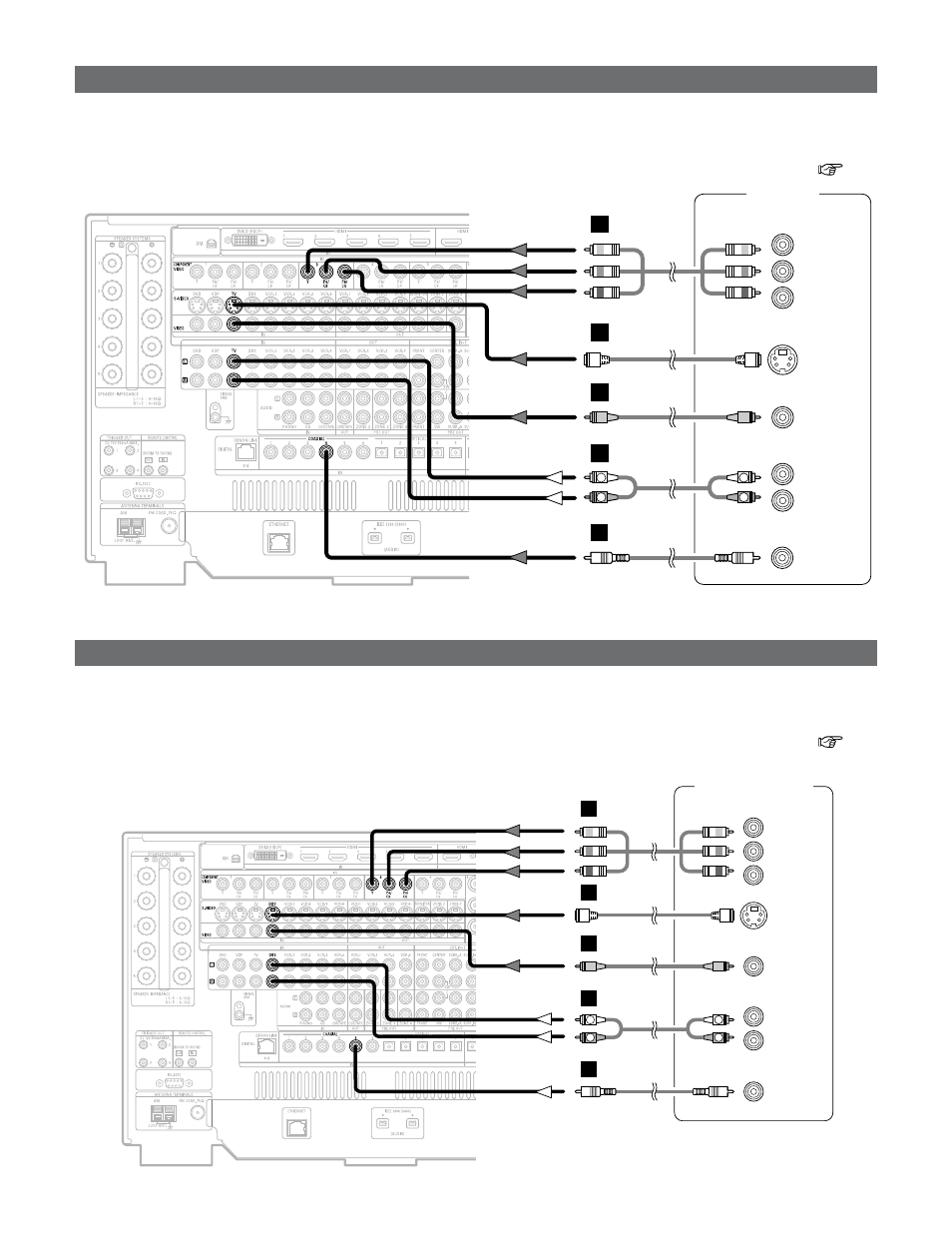

Connecting a DBS tuner
Connecting a TV tuner
H
I
A
TV tuner
S VIDEO
OUT
R
L
AUDIO OUT
VIDEO
OUT
COMPONENT VIDEO OUT
Y
P
B
P
R
COAXIAL
OUT
R
L
R
L
J
C
DBS / BS Tuner
S VIDEO
OUT
COAXIAL
OUT
R
L
AUDIO OUT
VIDEO
OUT
R
L
R
L
H
I
A
C
COMPONENT VIDEO OUT
Y
P
B
P
R
J
• For best picture quality choose the component video connection to your DBS tuner. S-Video and composite video outputs are
also provided if your DBS tuner does not have component video inputs.
• To connect the digital audio output from the DBS tuner, you can choose from either the coaxial or optical connections. If you
choose to use the optical connection, it needs to be assigned. For more information about Digital Input Assignment (
page
104).
• For best picture quality choose the component video connection to your TV tuner. S-Video and composite video outputs are also
provided if your TV tuner does not have component video inputs.
• To connect the digital audio output from the TV tuner, you can choose from either the coaxial or optical connections. If you
choose to use the optical connection, it needs to be assigned. For more information about Digital Input Assignment (
page
104).
