Connecting Other Sources
Connecting the power supply cord
AC 120 V, 60 Hz
AC outlet (wall)
Power supply cord
(Supplied)
NOTE:
• Only use the AC OUTLETS for audio equipment. Never use them for hair driers, TVs or other electrical appliances.
• Insert the plugs securely. Incomplete connections will result in the generation of noise.
AC OUTLETS
• SWITCHED (total capacity – 120 W (1 A.))
The power to these outlets is turned on and off in
conjunction with the POWER switch on the main unit,
and when the power is switched between on and
standby from the remote control unit.
No power is supplied from these outlets when this
unit’s power is at standby. Never connect equipment
whose total capacity is above 120 W (1 A.)

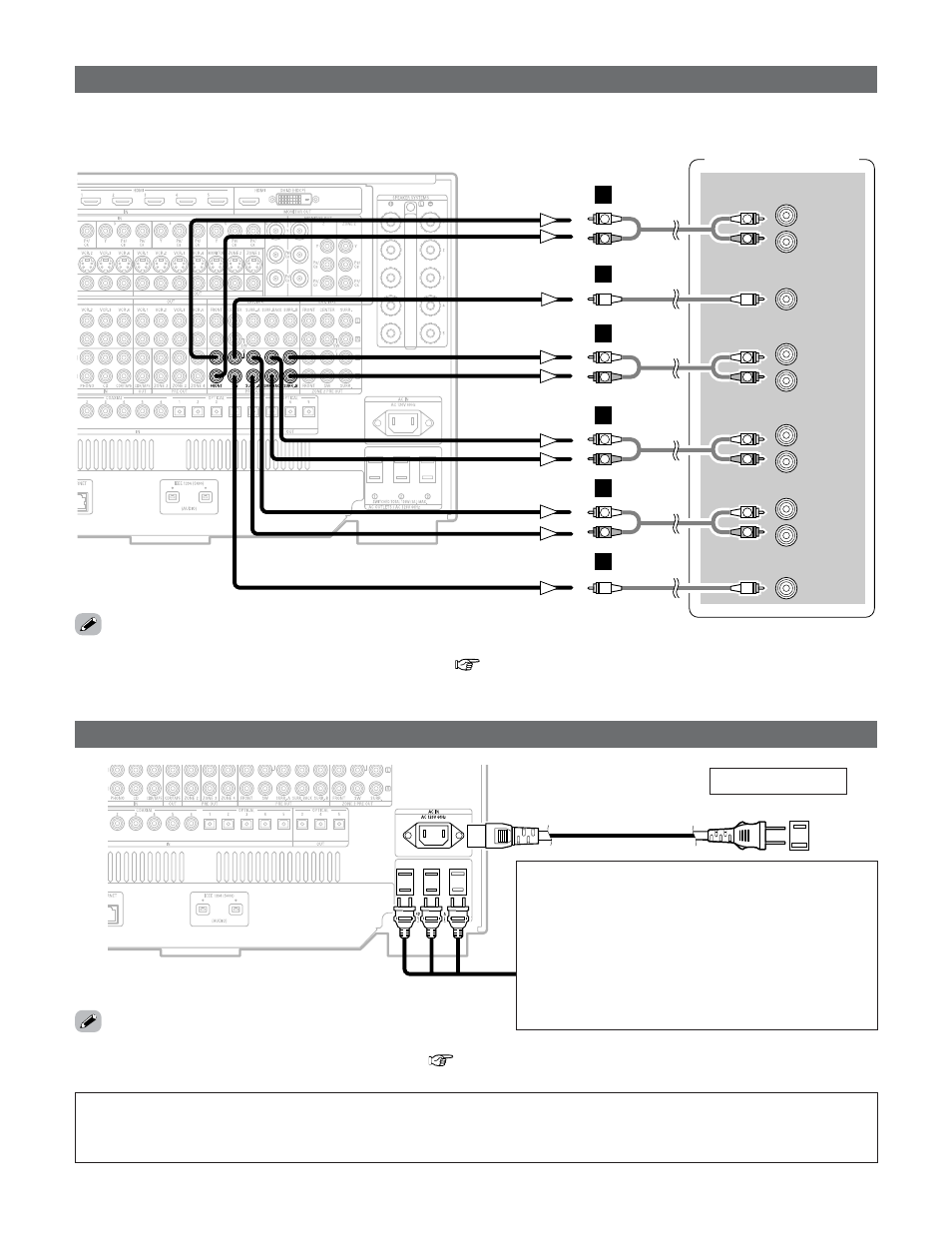

Connecting the pre-out terminals
Power amplifier
R
SURROUND
BACK
L
R
SURROUND B
L
R
SURROUND A
L
R
FRONT
L
9.1ch AUDIO IN
CENTER
SUB-
WOOFER
L
R
L
R
R
L
R
L
B
A
B
A
R
L
R
L
A
R
L
R
L
A
• Use these terminals if you wish to connect external power amplifier(s) to increase the power of the front, center, surround and
surround back sound channels, or for connection to powered loudspeakers.
• When using only one surround back speaker, connect it to left channel.
• The AC outlets can be set to turn on and off for the different functions.
For details, see “Setting the AC Outlet Assignment” ( page 136).
• By changing the MAIN ZONE channel settings, up to three subwoofers can be connected to the AVR-5805CI.
For more information about “Setting the Channel Setup” ( page 126 ~ 128).
