Denon AVR-5805CI User Manual

Page 105

EXT. IN-2 (6 CH)

EXT. IN-1 (10 CH)

105

Advanced Setup – Part 1

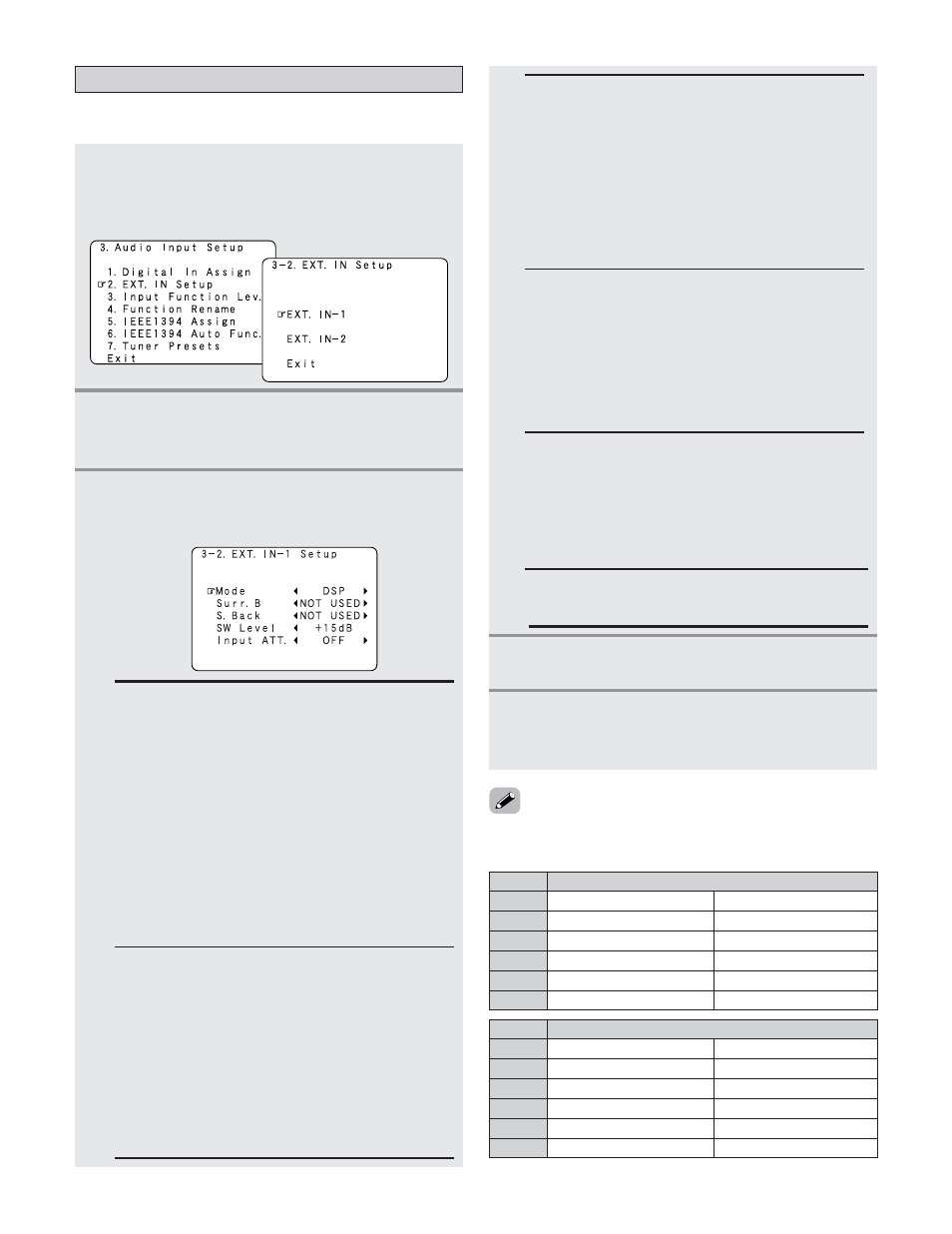

Setting the EXT. IN Setup

• Set the EXT. IN terminals playback method.

Press the

CURSOR

D or H

H button to select

“EXT. IN Setup” at the “Audio Input Setup”
menu, then press the

ENTER

button.

• The “EXT. IN Setup” screen appears.

Press the

CURSOR

D or H

H button to select the

item to be set, then press the

CURSOR

F or G

button to select the parameter.

S. Back:

Set when “Mode” is set to “DSP”. Select according
to the specifications of the player being used. Also
refer to the player’s operating instructions.

• NOT USED:

Select when neither SBL or SBR is connected.

• SB (SBL):

Select when only one surround back channel (SBL)
is connected.

• SBL/SBR:

Select when two surround back channels (SBL and
SBR) are connected.

Mode:
• DSP:

The analog input signal is converted into a digital
signal and undergoes DSP processing.
System Setup settings (Speaker Configuration,
Delay Time, etc.) are reflected in the same way as
for other input signals.
The surround playback mode button functions.

• ANALOG:

The analog input signal is played without DSP
processing.
SW and center channel: Down-mixing is conducted
by the analog circuit. Surround and surround back
channels: Not output if “No” is selected at the
Speaker Configuration. Delay Time: Not reflected.

Press the

ENTER

button to enter the setting.

• The “EXT. IN Setup” menu reappears.

Surr. B:

Select according to the specifications of the player
being used. Also refer to the player’s operating
instructions.

• NOT USED:

Select when Surround B is not terminals.
The Surround A input signal is output to the
Surround B output terminals.

• USED:

Select when Surround B is connected. The
playback in the MULTI CH DIRECT and MULTI CH
IN is only possible when “Mode” is set to “DSP”.

INPUT ATT.:

Set when “Mode” is set to “DSP”.
If “OVER LOAD” appears on the display, select “–6 dB”.

SW Level :

Select according to the specifications of the player
being used. Also refer to the player’s operating
instructions.
Set the level of playback of the analog input signal
connected to the EXT. IN Subwoofer.
+15dB (default) recommended. (0, +5, +10 and
+15 can be selected.)

Surr. Sp :

Set when “Mode” is set to “ANALOG”. Select
according to the specifications of the player being
used. Also refer to the player’s operating instructions.

• Surr. A

Select when using surround speakers A.

• Surr. B

Select when using surround speakers B.

• Surr. A+B

Select when using both surround speakers A and B.

Press the

CURSOR

D or H

H button to select the

input terminal, then press the

ENTER

button.

• Switch to the setting screen.

Press the

CURSOR

D or H

H button to select the

“Exit”, then press the

ENTER

button.

• The “Audio Input Setup” menu reappears.

Mode

S. Back

Surr. B

Surr. Sp

SW Level

Input ATT.

DSP

ANALOG

NOT USED, SBL/SBR, SB (SBL)

–

NOT USED / USED

–

Surr. A / Surr. B / Surr. A+B

0, +5, +10, +15 dB

OFF, –6 dB

–

• The items to be set differ as described below according to

the selected input terminal and the “Mode” selection.

Mode

S. Back

Surr. B

Surr. Sp

SW Level

Input ATT.

DSP

ANALOG

–

Surr. A / Surr. B / Surr. A+B

0, +5, +10, +15 dB

OFF, –6 dB

–
