Connecting Other Sources

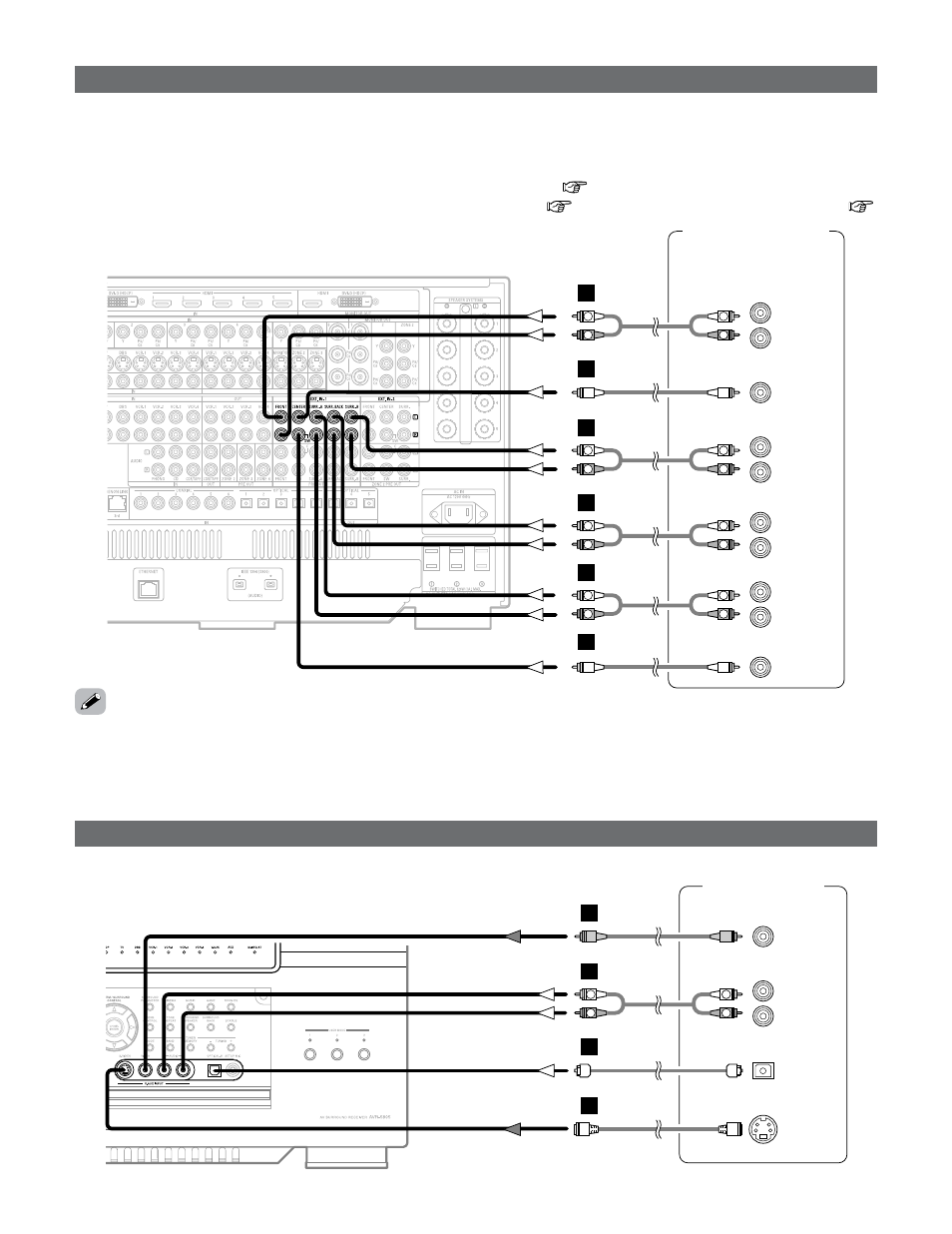

Connecting the external inputs (EXT. IN) terminals
External decoder 1
DVD-Audio-Video /
Super Audio CD Player
R
SURROUND B
L
R
SURROUND
BACK
L
R
SURROUND A
L
R
FRONT
L
9.1ch AUDIO OUT
CENTER
SUB-
WOOFER
L
R
L
R
R
L
R
L
B
A
B
A
R
L
R
L
A
R
L
R
L
A
• AVR-5805CI is equipped with two analog external input terminals for 9.1 channels and 5.1 channels.
• These terminals are for inputting multi-channel audio signals from an outboard decoder, or a component with a different type of
multi-channel decoder, such as a DVD-Audio player, or a multi-channel Super Audio CD player, or other future multi-channel
sound format decoder.
• The method of video signal connection is the same as that for DVD player ( page 18).
• For instructions on playback using the external input (EXT. IN) terminals ( page 47) and “Setting the EXT. IN Setup” (
page 105).
• The EXT. IN-2 terminal can be connected for 5.1-channels (FL, FR, C, SL, SR and SW) in the same way as the EXT. IN-1 terminal.
• With discs on which special copyright protection measures have been taken, however, the digital signals may not be output
from the DVD player. In this case, connect the DVD player’s analog multi-channel output to the AVR-5805CI’s EXT. IN terminals
for playback. Also refer to your DVD player’s operating instructions.
