Connecting Other Sources
Connecting the TRIGGER OUT terminals
Turn the DC 12 V voltage on and off for the
individual functions and surround modes.
For details, see “Setting the Trigger Out” (
page 135).
Connecting the MULTI ZONE terminals
TV (Monitor)
(ZONE2)
S VIDEO
IN
VIDEO
IN
+ +
INFRARED SENSOR INFRARED RETRANSMITTER
INPUT OUTPUT
AUX OUT
COMPONENT VIDEO IN (ZONE2)
Y
P B
P R
Power amplifier (ZONE2)
R
SURROUND
L
R
FRONT
L
5.1ch AUDIO IN
CENTER
SUB-
WOOFER
H
I
J
B
B
R
L
R
L
A
R
L
R
L
A
For instructions on operations using the MULTI ZONE functions ( page 87 ~ 98).
ZONE2 connections
• It is possible to connect a separate amplifier to the AVR-5805CI and simultaneously listen to a different program source than that
in the MAIN ZONE in a different room (ZONE2/3/4) ( page 88 ~ 92).
• The ZONE2 video out is only for the ZONE2.

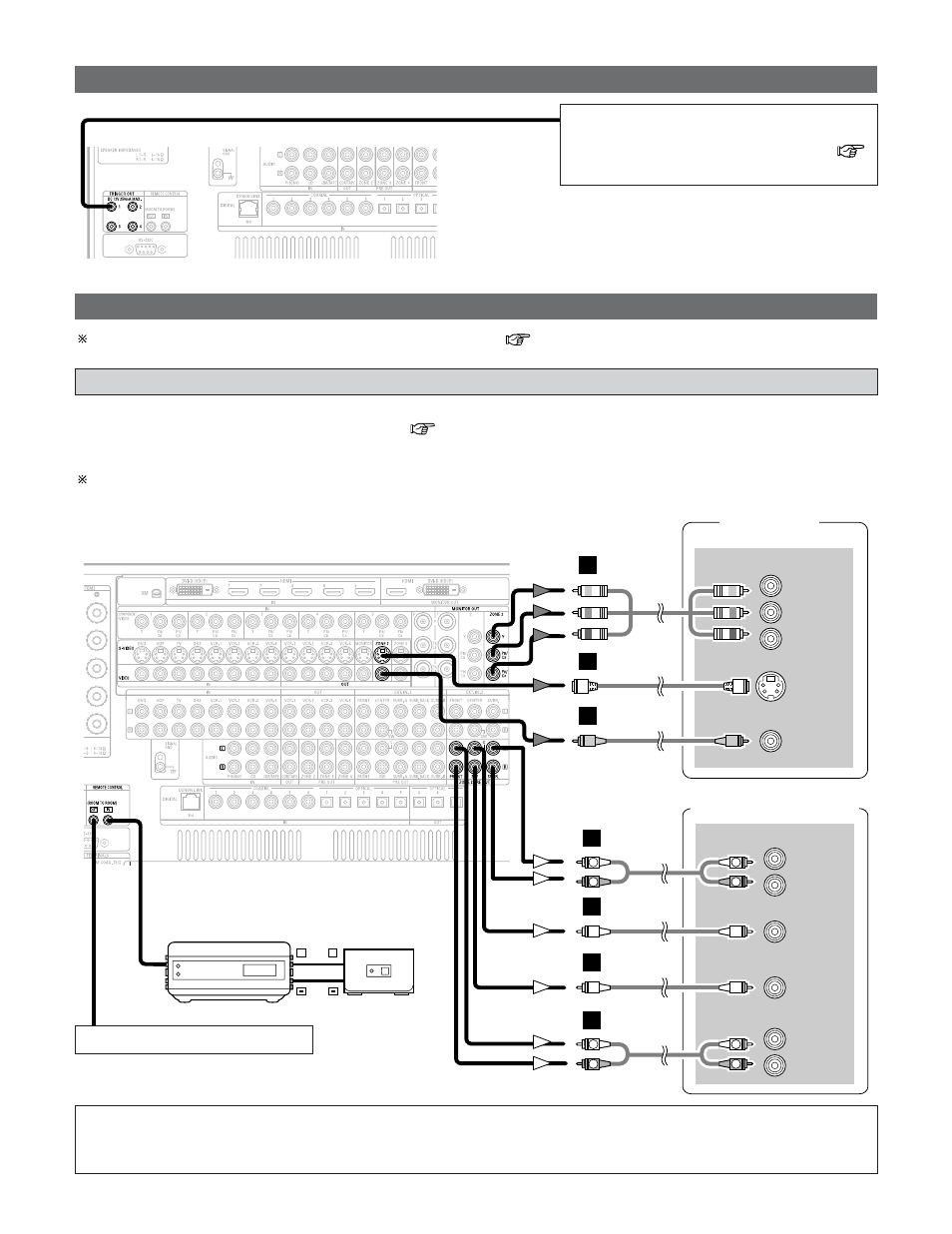

The diagram below shows an example of connections for performing surround playback in ZONE2. For 2 channel
connections in ZONE2 and for ZONE3 and ZONE4 connection examples, see pages 87 ~ 92.
Extension terminals for future use.
NOTE:
• For the AUDIO output, use high quality pin-plug cables and wire in such a way that there is no humming or noise.
• For instructions on installation and operation of separately sold devices, refer to the devices’ operating instructions.
