29

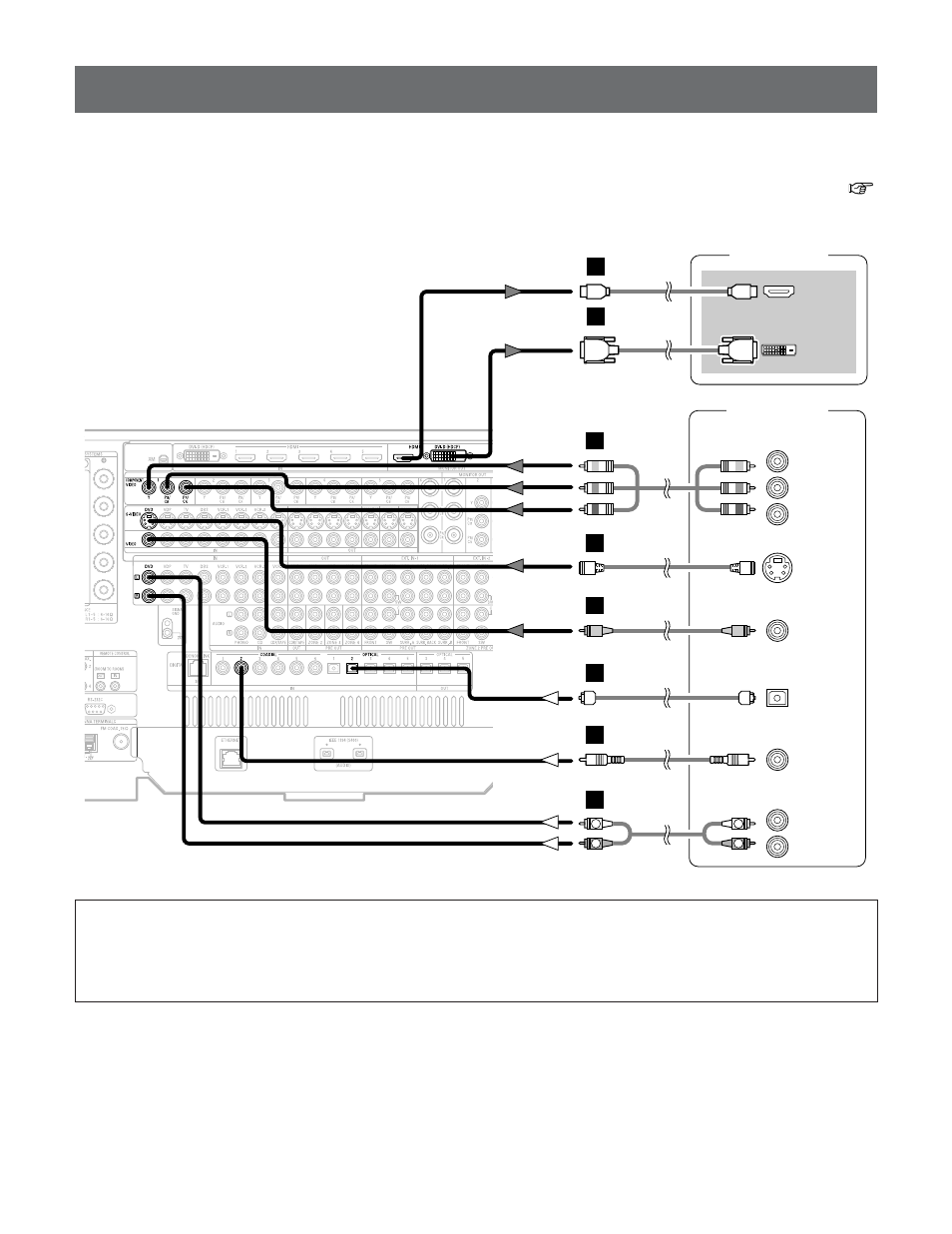

Connecting Other Sources
Connecting equipment with HDMI terminals
[To convert analog video signals to HDMI signals]
DVD player
S VIDEO
OUT
COAXIAL
OUT
R
L
AUDIO OUT
VIDEO
OUT
COMPONENT VIDEO OUT
Y
P B
P R
OPTICAL
OUT
TV (Monitor)
HDMI
IN
DVI-D
IN
or
R
L
R
L
H
J
I
A
C
D
M
L
• The AVR-5805CI is equipped with a function for converting analog video signals into HDMI signals.
You can do this by either a component or a video or a S-Video connection.
• Audio signals are not output from the HDMI monitor output terminal, so also make analog or digital audio connections. To play
sound using digital audio connections, assign the digital terminal (coaxial or optical) at “Setting the Digital In Assignment” (
page 104).
NOTE:
• When “Through” is set at “Resolution” under “Setting the HDMI/Component Out Setup”, use a monitor compatible with
input resolutions of 480i/576i.
• If your monitor is not equipped with an HDMI terminal, connect the AVR-5805CI to the monitor using the component
video, S-Video, or composite video terminals.
