Easy Setup and Operation
TV (Monitor)
S VIDEO
IN
VIDEO
IN
COMPONENT VIDEO IN
Y
P B
P R
HDMI
IN
DVI-D
IN
COMPONENT VIDEO OUT
Y
P B
P R
H
J
I
M
L
K
or

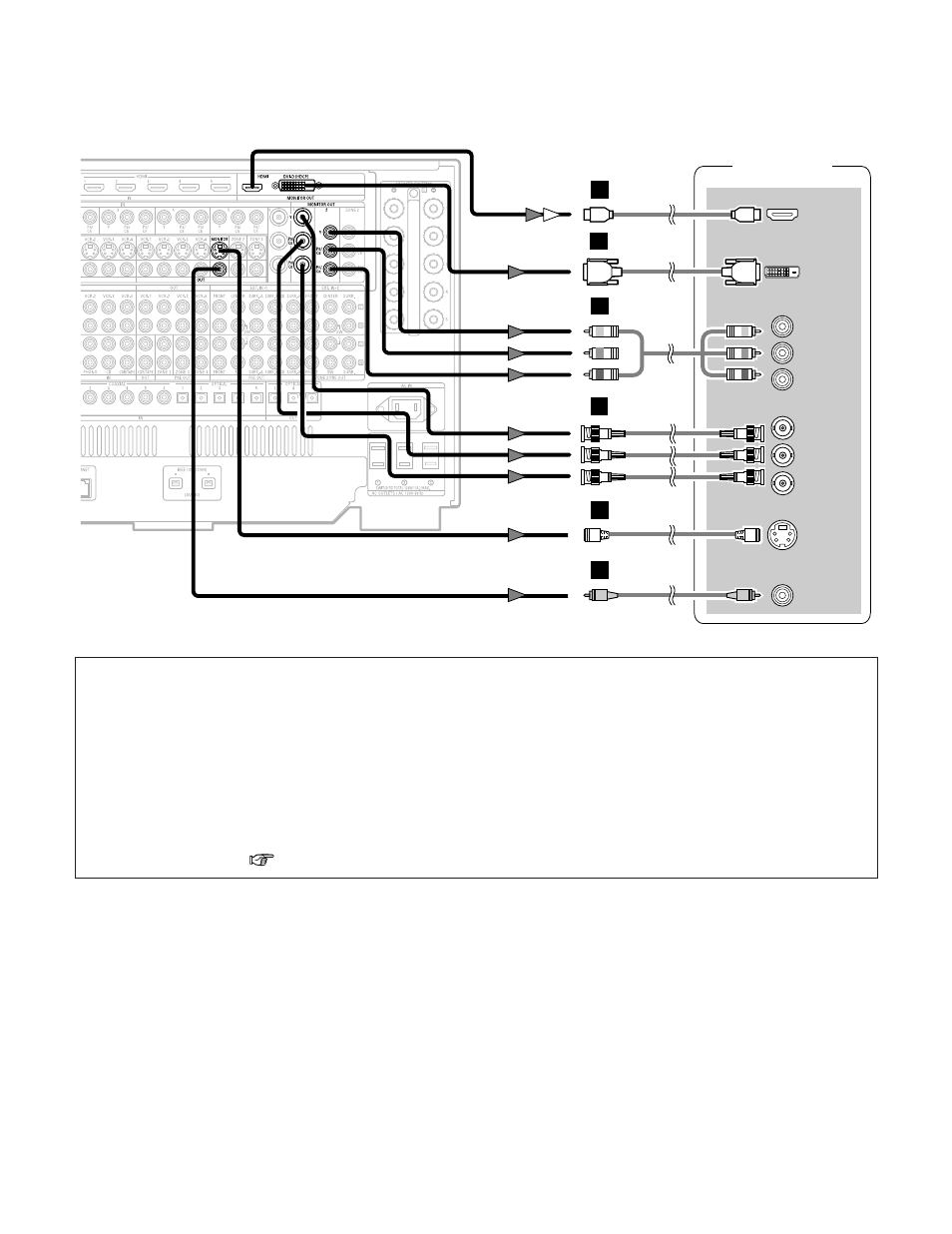

• For best picture quality (especially with progressive DVD and other high definition sources) choose the component video or
HDMI connection to your monitor or TV. S-Video and composite video outputs are also provided if your TV does not have
component video inputs.
NOTE:
• The component video input and/or output terminals may be labeled differently on some TVs, monitors or video
components (Y, P B , P R ; Y, C B , C R ; Y, B-Y, R-Y). Check the operating instructions for other components for further
information.
• The COMPONENT MONITOR OUT-1 and the COMPONENT MONITOR OUT-2 can be used simultaneously. Connect with
a BNC cable when using the COMPONENT MONITOR OUT-1 terminal, a component video cable when using the
COMPONENT MONITOR OUT-2 terminal.
• The HDMI and DVI-D monitor output terminals on the AVR-5805CI can only be used one at a time, not simultaneously.
• Audio signals are only output from the HDMI monitor out connector when audio signals are input to the HDMI input
connector.
• When connecting the AVR-5805CI and DVD player using an HDMI cable, also connect the AVR-5805CI and monitor or TV
using an HDMI cable ( page 36).
