DATAMAN oscilloscope
User’s Guide
Click „Add“ button to add the definition to the list.
Click „OK“ to update items in the main menu which allows you to export data
according to the new definitions.
4.3.3. Manage exports as image window
Click the item in the main menu to open „Manage exports“ window.

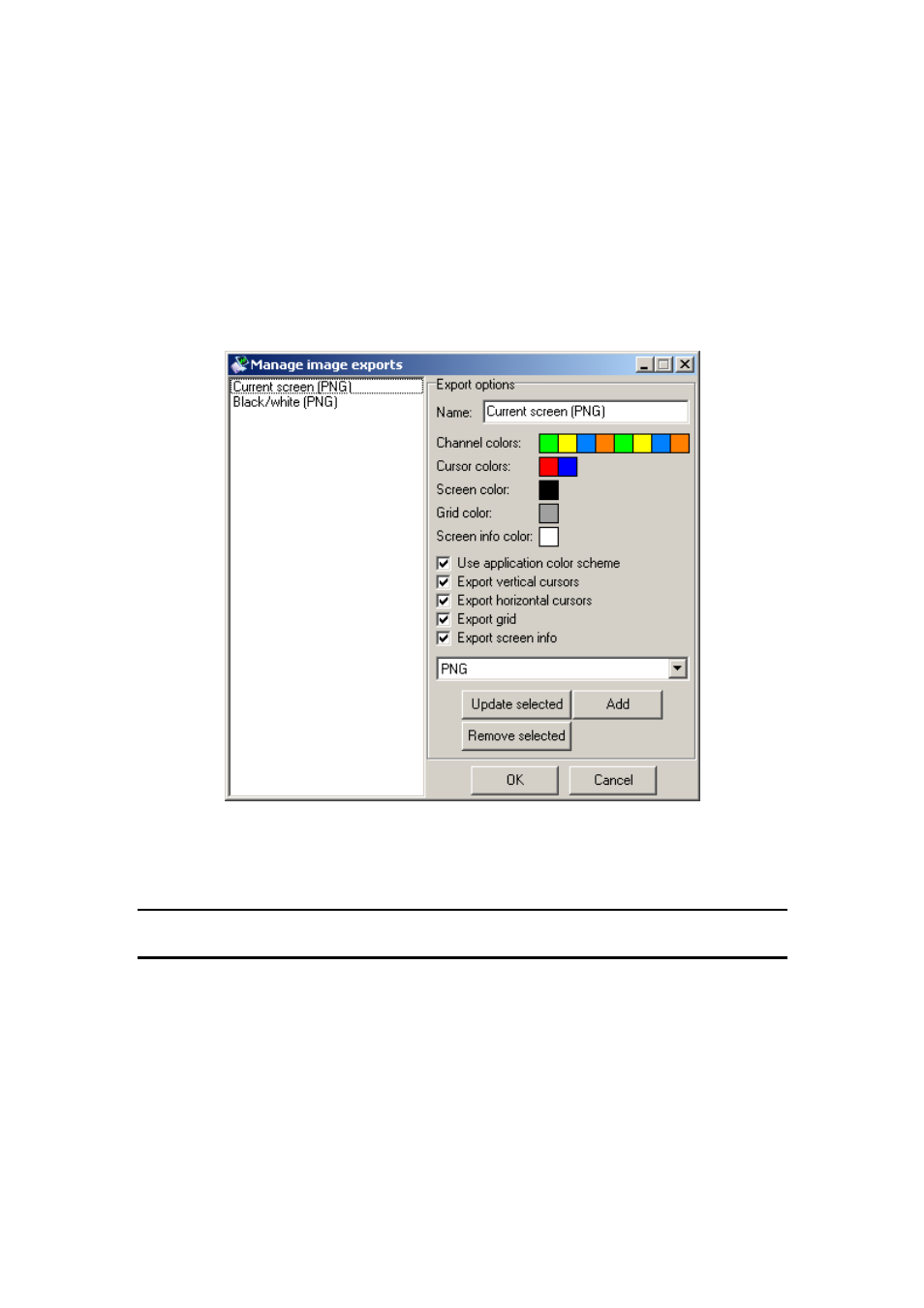

Fig. 4.3.3.1. – Manage exports as image window
The list of all saved definitions is in the left of the window. Click the definition in the
list to select it and fill the options in the on the right with it.
TIP: The export items in the main menu are created in the order of the
definitions in the list. Drag the definition in the list to change its position.
Each definition has the following options:
Name - identifies definition in the main menu. Click menu item to export data using
the definition.
Channel colors – indicates the channel colors
Cursor colors – indicates the cursor colors
Screen color – indicates the screen background color
Grid color – indicates the grid color
Screen info color – indicates the color of the screen information (text)
