Page 154

Product Service 1-800-522-7658
154
Vacu-Pass
TM
Cord & Cable Portal Installation
Note: You will need to access the right side of the cabinet in order
to install the Portal
Note: There must be enough clearance to pass the cord or cable
between the exterior dress panel and any obstruction.
Note: Some Vacu-Pass components and the cord or cable passing
through it may become contaminated during use of the cabinet.
Ensure all potentially contaminated components are surface
decontaminated before handling or removal from the cabinet.

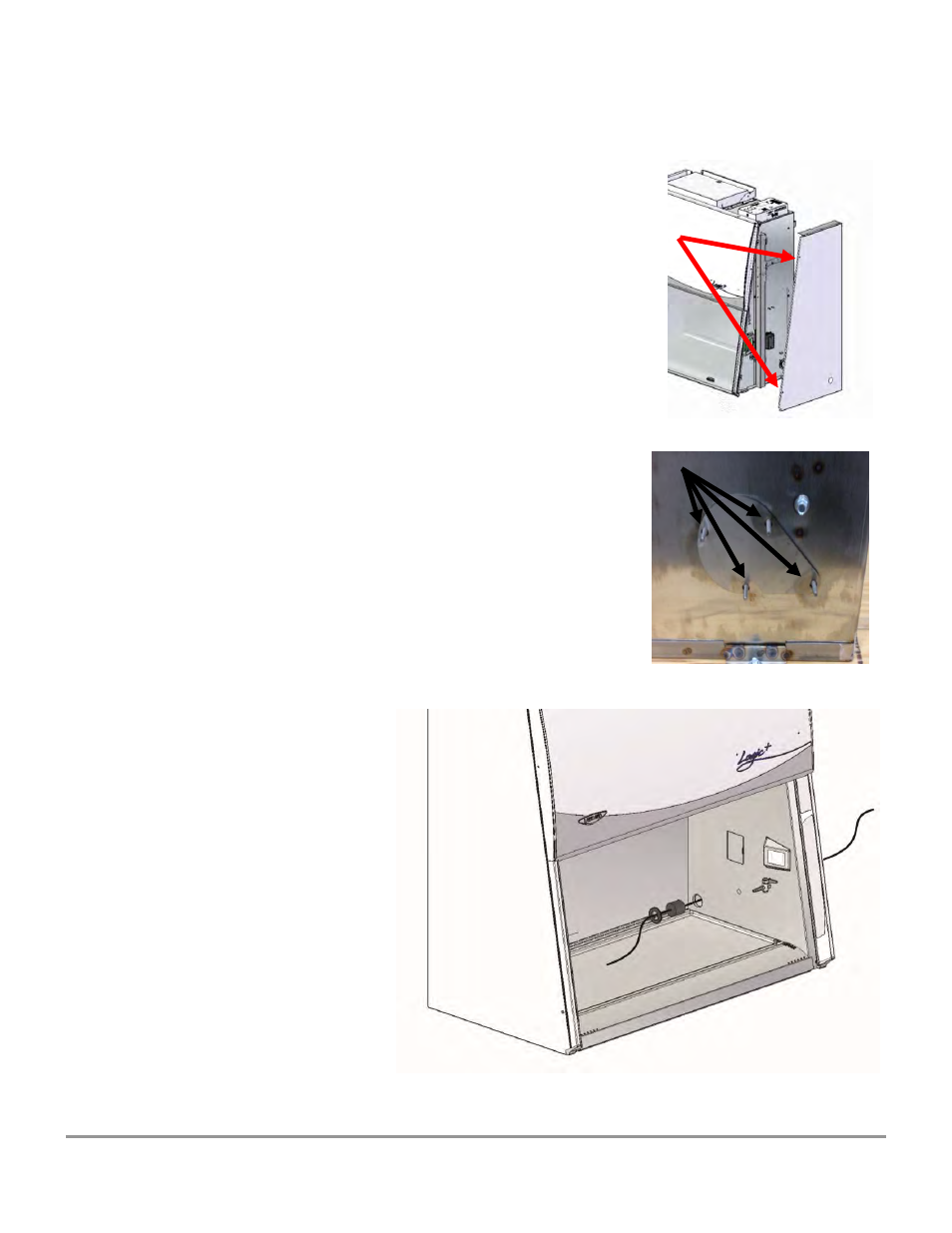

1.
Open the right side panel by removing the two Phillips screws
on the side panel.
2.
Remove the four locknuts that secure the cover panel to the
liner. Keep the nuts for future use.
3.
Using a putty knife or similar device, carefully pry the cover
away from the liner. Leave the sealing gasket in place.
4.
Install the body of the portal into the liner, and sequentially
tighten the nuts unto a uniform gasket compression is noted.
5.
Remove the grommet from the liner side wall. Remove the
solid sealing plug from the body of the portal by either
pressing it through from the outside, or by carefully inserting
a spatula or similar device between the sealing plug and the
body of the portal, and prying the plug out.
6.
Pass the cord or cable through the body of the portal, and
then through one of the plugs that has been cut for cord or
cable use, then through the grommet, as shown.
Note: select a plug with a hole
that is slightly smaller than the
cord or cable, to create a
proper seal. This will also help
minimize movement of the cord
or cable if it is accidentally
pulled during use.
7.
Position the cord or cable as
it will be used in the
cabinet, and then push the
plug back into the body of
the portal until it seats in
the portal. Reinstall the
grommet
.
