6.

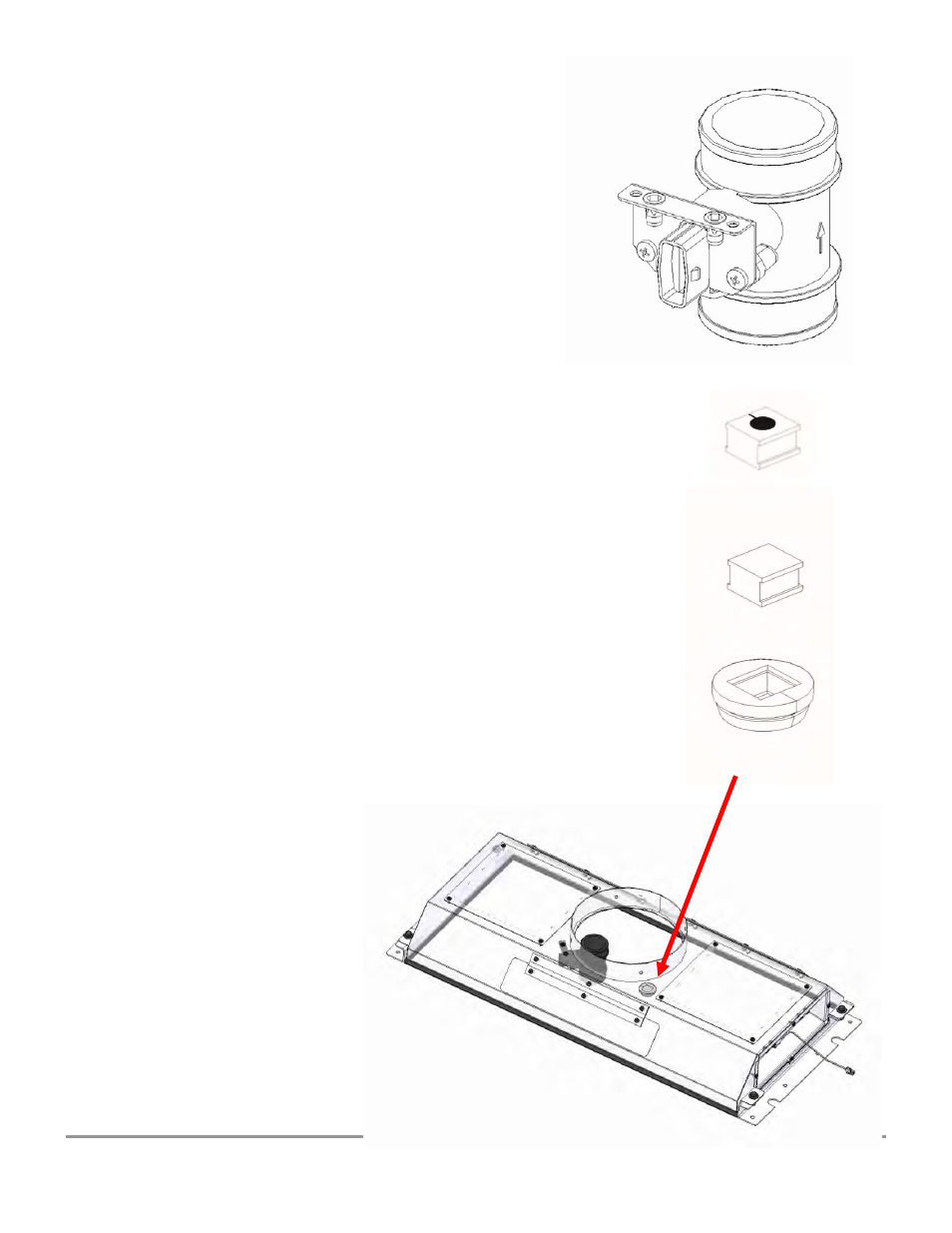

If you are installing the airflow sensor into a
canopy connection, install the bracket onto
the airflow sensor as shown.
7.
Gently remove the Canopy Cable Sealing grommet, located on
the top of the canopy. Remove the solid square plug. Locate
the replacement plug in the air sensor kit, and push the
sensor wiring harness through the slit in the plug.
NOTE: The grommet and plugs are keyed – they only fit
together properly when oriented as shown in the illustration.
Ensure both the replacement plug and the canopy are oriented
properly in the grommet before installation.
Route the sensor cable from the sensor, through the
grommet, and outside of the canopy. Reinstall the grommet.
Ensure the cable does not hinder the operation of the front
relief valve, and does not touch the surface of the HEPA filter.
8.
Then install the
sensor and canopy
bracket as shown.
