Quickstart
How do I change the Configuration of the Logic+? – continued
9.

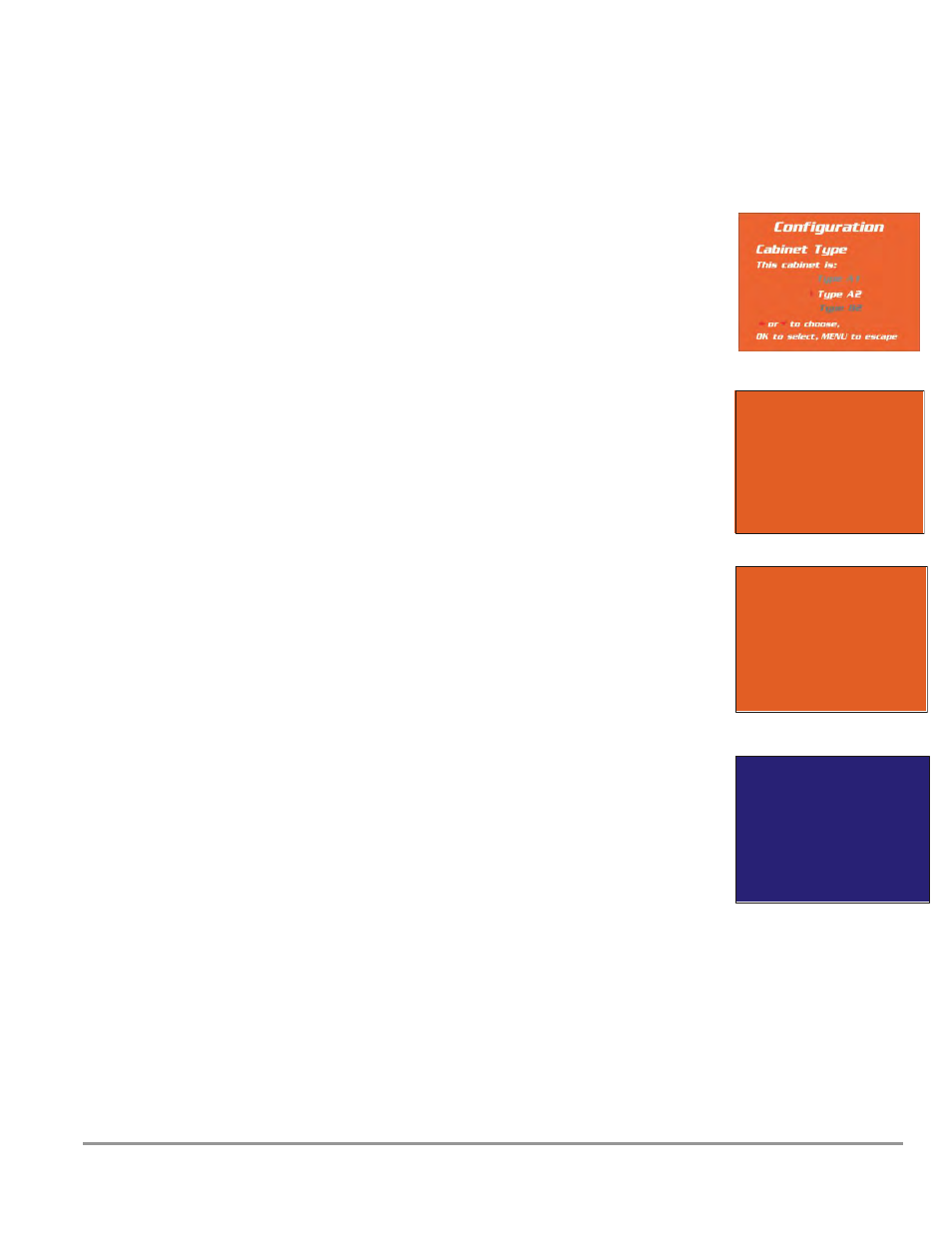

The first screen allows you to set the Type of cabinet. The only
difference between the Type A1 and Type A2 configuration setting
is that the airflow velocity limits for normal operation of the
optional airflow sensor (because the Type A1 has a nominal inflow
of 85 FPM, and the Type A2 is 105 FPM). If the air velocity goes
out of range, the alarm will be displayed, but the cabinet will
continue to run. Selecting Type B2 will cause an inflow alarm if the
inflow velocity drops below the alarm setpoint, and will result in the
cabinet blower stopping. Use the
▲
or
▼
buttons to select the
cabinet Type, and then press
OK/Mute.
10.
The second screen allows you to configure the cabinet for a
canopy or not.*
11.
This screen configures the unit for a UV light or not. After your
selection is chosen, and you press
OK/Mute
, the unit will shut off
and then reset in the new configuration.
12.
If the unit is configured to NOT have a UV light, and the user
presses the UV Light button, they will get this message.
*Early production models of Type A Logic+ units may require a jumper wire
across the canopy electrical connection located on the left side of the electronics
module. Contact Labconco for assistance if this jumper is missing, and the unit
in constant canopy alarm mode.
Configuration
Type A Canopy Option
This cabinet has:
or
to choose,
OK to select, MENU to escape
a canopy
no canopy
This Logic is configured:
or
to choose,
OK to select, MENU to return
to have a UV light
to NOT have a UV light
UV Settings
This cabinet is not configured
for a UV light
If you want to install a UV
light, contact Labconco Product
Service at 800-821-5525
